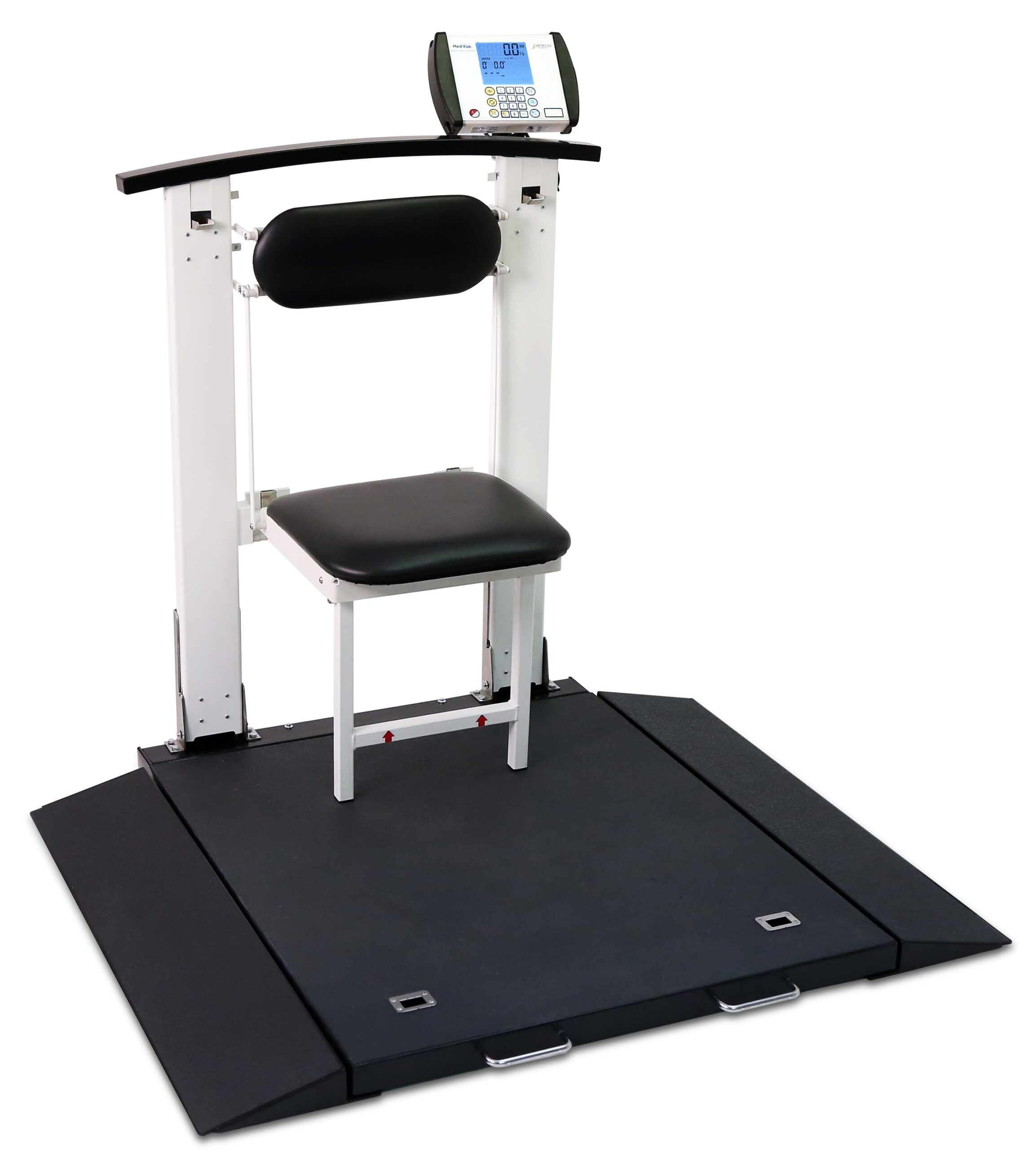

6570, Portable with Handrail and Seat

$0.00

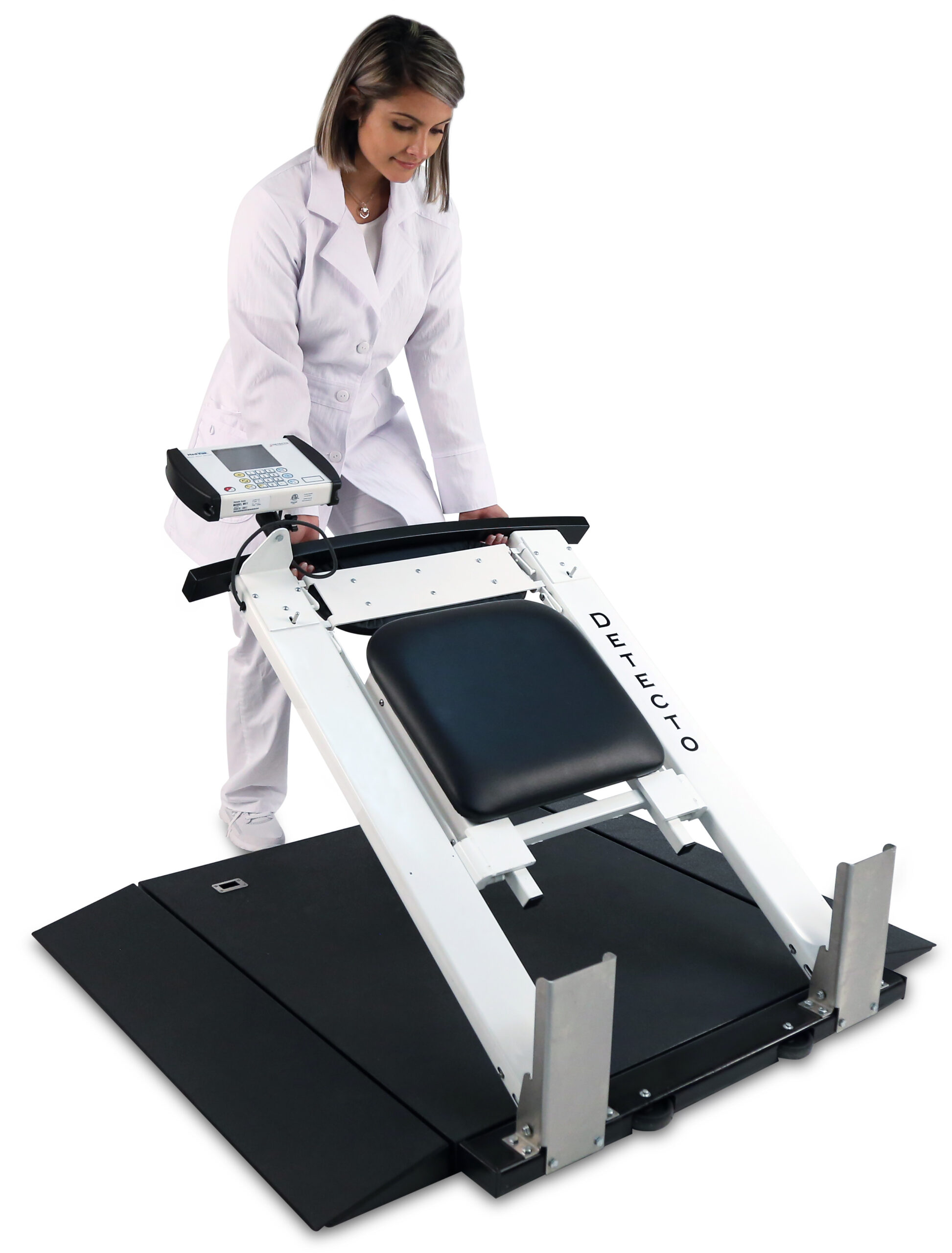

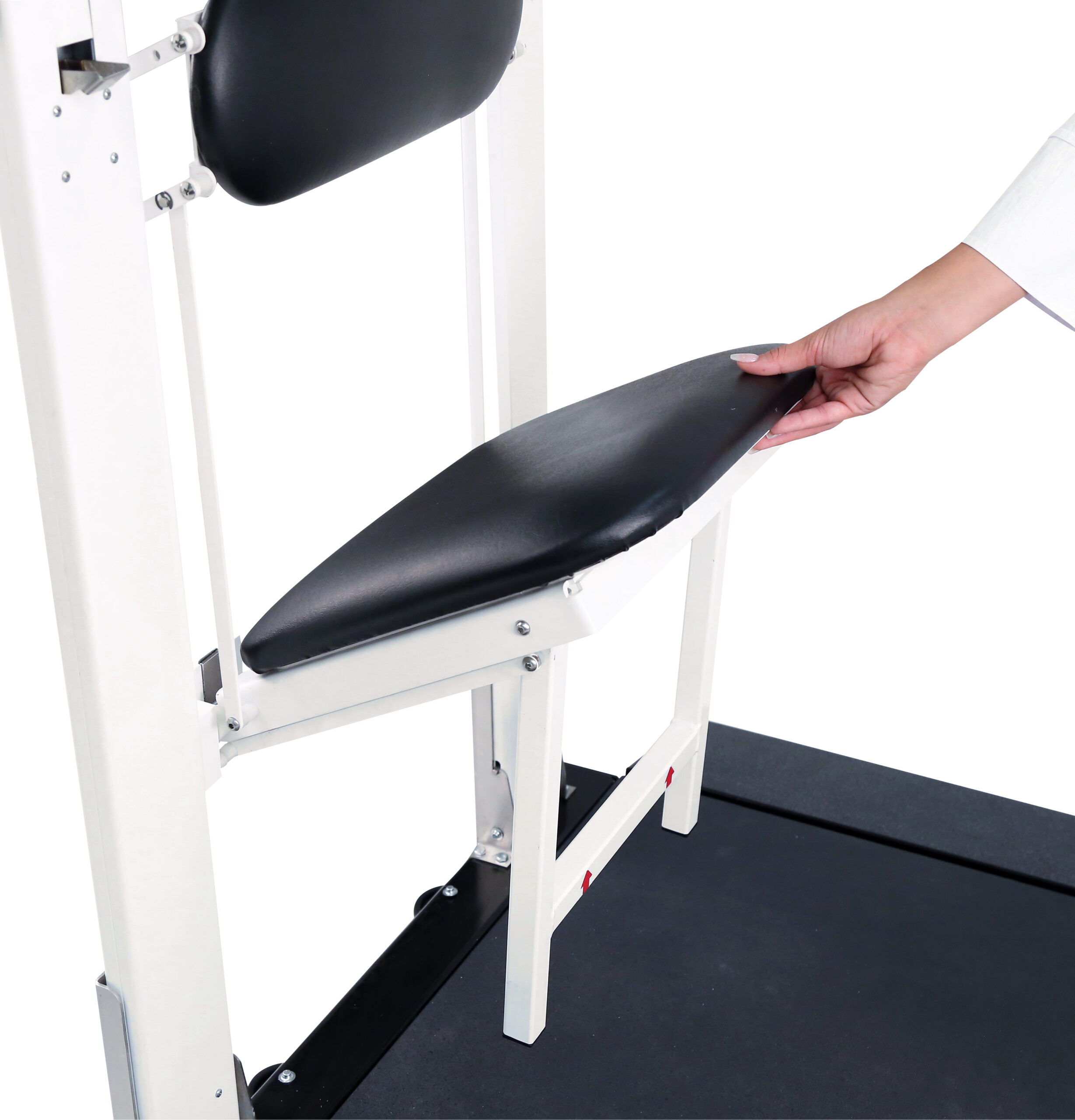

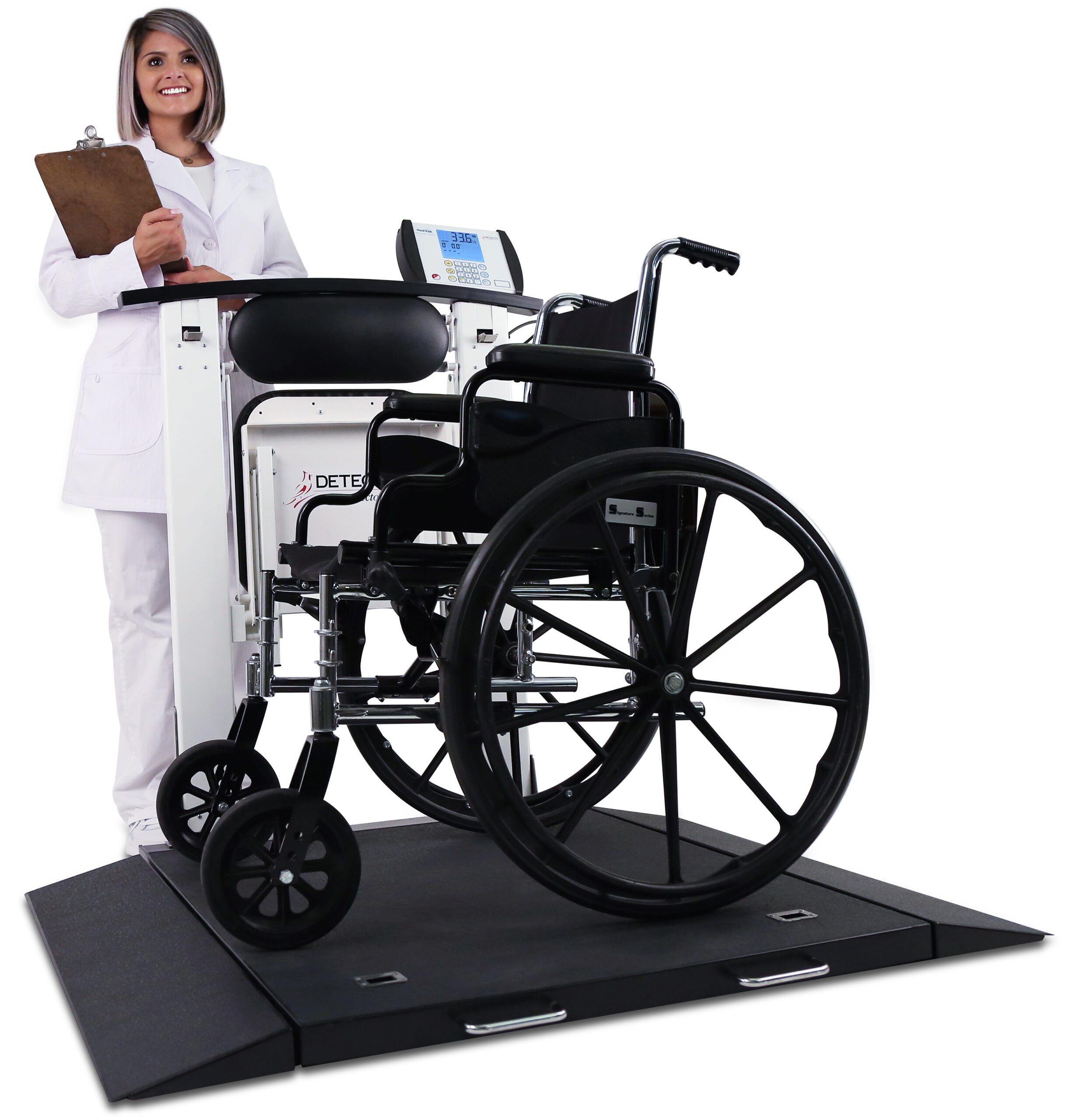

DETECTO’s 6570 is a 3-in-1 scale providing seated, standing, and wheelchair weighing. The elegant, curved handrail provides patient stability while weighing standing. The seat folds down for seated weighing and folds back up for wheelchair weighing. By sliding the release levers, the columns easily fold down and lock for fast-and-easy transport and vertical storage. Enjoy the time-saving benefits of these scales by using the convenient pushbutton or keypad tare to remove the wheelchair weight. The scales features 1,000 lb / 450 kg capacity, two-way built-in ramps for accessibility from both sides, units locking into Kilograms or Pounds, large 32 in x 36 in / 81 cm x 91 cm platform, clinical-grade accuracy to 0.2 lb / 0.1 kg, battery or AC power, up to 99 tares (optional) to store wheelchair weights, and Wi-Fi/Bluetooth available on some models for wireless EMR/EHR connectivity.

Download product PDF
Category:

Features

  • 1000 lb/450 kg Capacity
  • 2-Way Easy Access Ramps
  • Units Locking into Kilograms or Pounds
  • 6 C Batteries (Not Included)
  • Wi-Fi/Bluetooth Available on Some Models for Wireless EMR/EHR Connectivity
  • 3-in-1 Standing Seated Wheelchair Scale
  • BMI Calculation
  • Curved Handrail for Patient Stability
  • Easily-Collapsible Column with Quick Release Lever
  • EMR/EHR Ready
  • Fold-up Chair Seat
  • Low-Profile 2 inch/56 mm High Platform
  • Integral Wheels Ease Support
  • OIML EC Class III Model Available
  • Ramps Rest On Floor for Easier Patient Access
  • Single-Pass Weighing with Keypad and Pushbutton Tare
  • Spacious 32 in x 36 in / 81 cm x 91 cm Platform
  • Vertical Mode for Transport and Storage
  • Ethernet Optional

Specifications

Capacity (6570): 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Capacity (6570KGEU): 300 kg x 0.1 kg or 350 kg x 0.2 kg (OIML EC class III approved)
Platform Size: 32 in x 36 in x 2.2 in / 81 cm x 91 cm x 5.6 cm
Keypad: 19 key, color-coded, sealed membrane
Connectivity: RS232 serial, USB, and optional Ethernet. Wi-Fi/Bluetooth available on some models.
LCD Display Dimensions: 3.5 in W x 3 in H / 89 mm W x 76 mm H backlit blue LCD
Power: 6 C batteries (not included) or model MV1PWR AC adapter included on some models.
Resolution: 5,000 divisions, max.
Operating Temperature: 14° to 104°F (-10° to 40°C)
Ramp Size: 36 in (91.4 cm) W x 7.9 in (20.2 cm) L each
Display: 5 digit, 7 segment, 7/8 inch (22.23 mm) high LCD weight digits
Country of Origin: USA
Includes: Scale includes fold-up chair seat, 2-way ramps, integral wheels, curved handrail columns, weight indicator and guide handles
Optional: Ethernet
UPC Code: (6560): 809161302301
UPC Code (6560KGEU): 809161304602
Net Weight: 140 lb / 63 kg
Shipping Weight: 150 lb / 68 kg
Maximum Load (Folding Seat): 800 lb / 360 kg
Maximum Load (Platform): 1,000 lb / 450 kg

Options

MV1PWR Medical Grade Power Supply With US Plug Call For Pricing

Models

6570 Wheelchair Scale, Portable, Digital, Folding Column & Seat, 1000 lb x .2 lb, 32″ x 36″ Call For Pricing
6570-AC Wheelchair Scale, Portable, Folding Column & Seat, 1000 lb x .2 lb / 450 kg x .1 kg W/AC Adapter Call For Pricing
6570-C Wheelchair Scale, Portable, Digital, Folding Column & Seat, 1000lb x .2lb / 450kg x .1 kg, BT / WiFi Call For Pricing
6570-C-AC Wheelchair Scale, Portable, Digital, Folding Col. & Seat, 1000lb x .2lb / 450kg x .1kg, BT/WiFi, AC Call For Pricing
