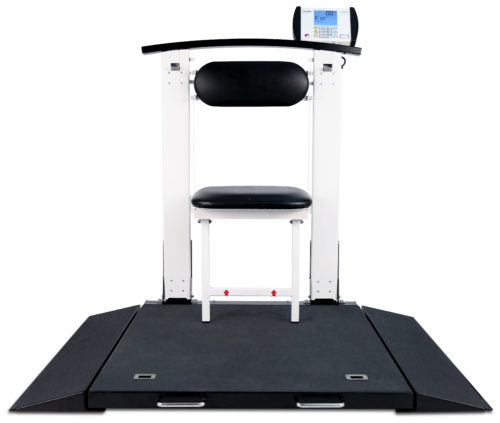

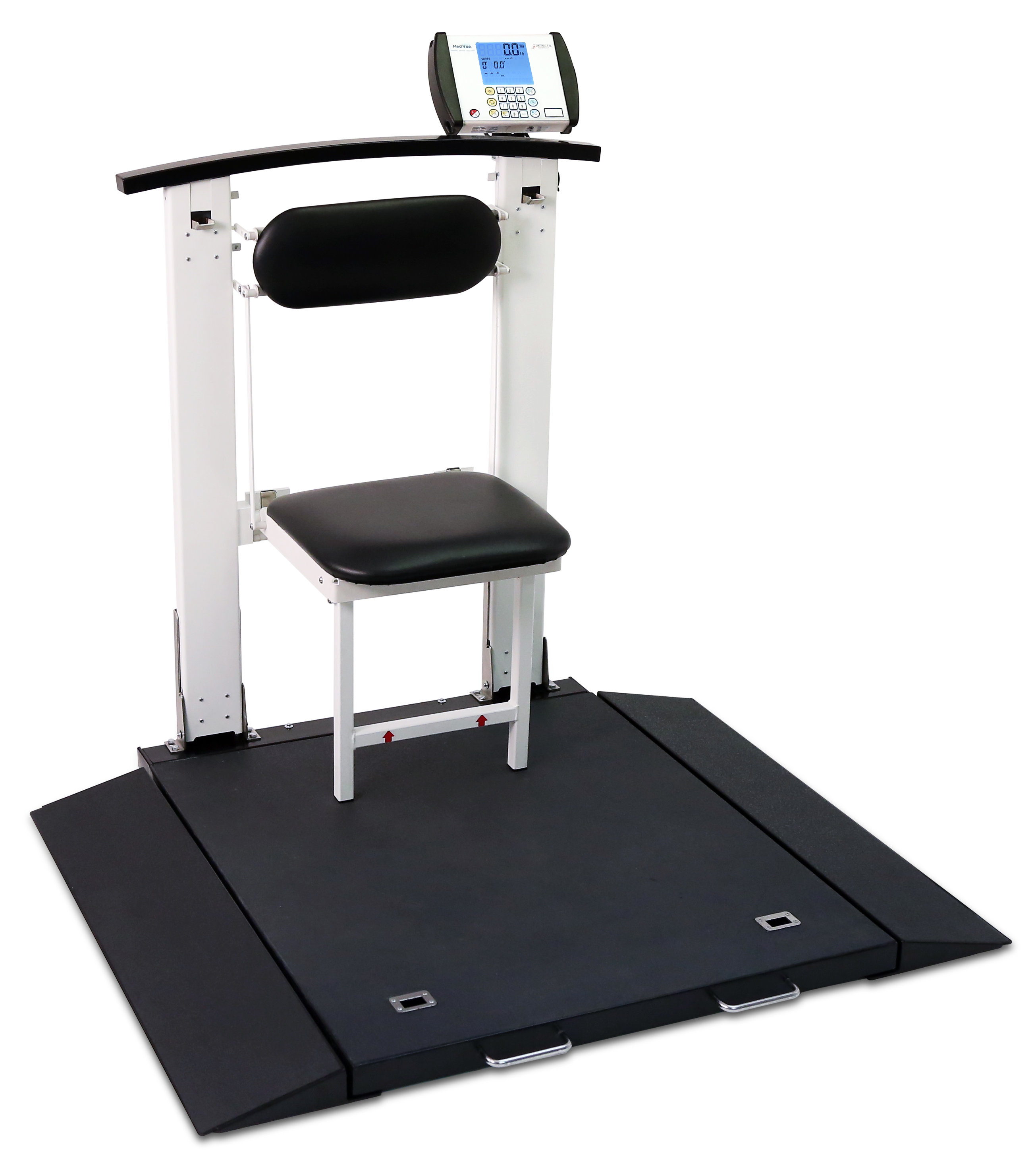

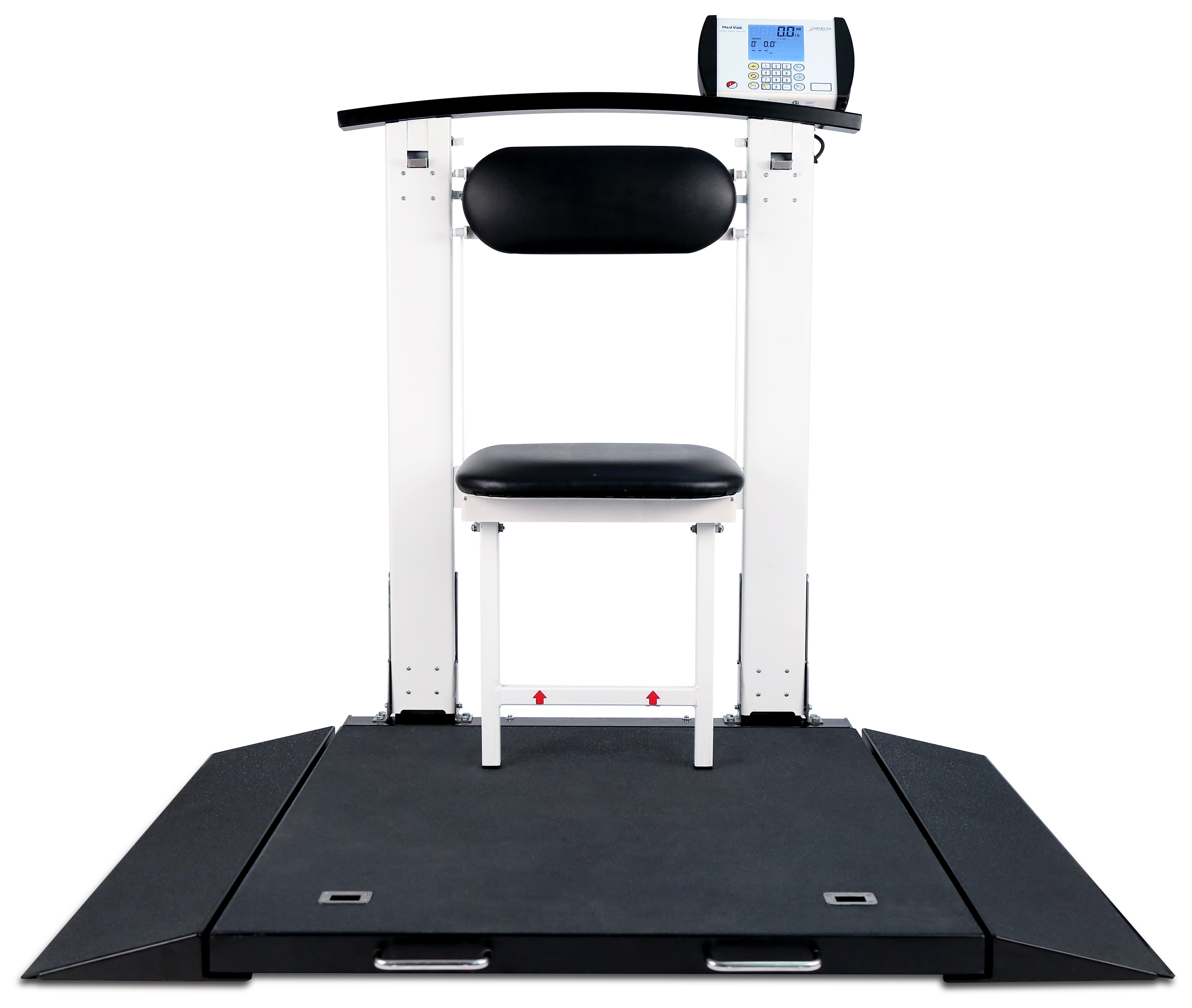

6570, Portable with Handrail and Seat Wheel Chair Scale

$0.00

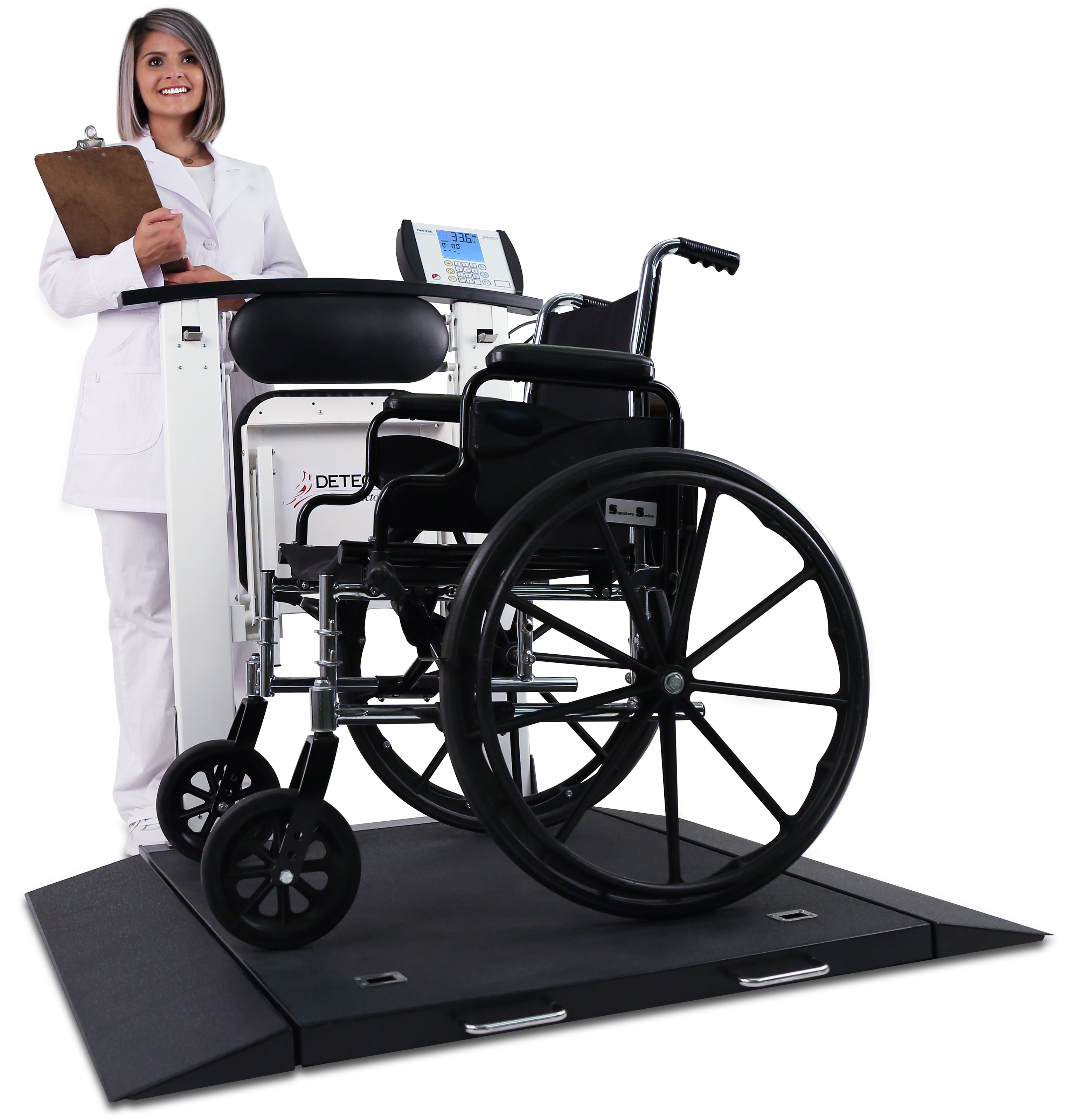

DETECTO?s 6570 is a 3-in-1 scale providing seated, standing, and wheelchair weighing. The elegant, curved handrail provides patient stability while weighing standing. The seat folds down for seated weighing and folds back up for wheelchair weighing. By sliding the release levers, the columns easily fold down and lock for fast-and-easy transport and vertical storage. Enjoy the time-saving benefits of these scales by using the convenient pushbutton or keypad tare to remove the wheelchair weight. The scales features 1,000 lb / 450 kg capacity, optional Wi-Fi for EMR/EHR, two-way built-in ramps for accessibility from both sides, large 32 in x 36 in / 81 cm x 91 cm platform, clinical-grade accuracy to 0.2 lb / 0.1 kg, battery or AC power, and up to 99 tares (optional) to store wheelchair weights.

Download product PDF
Categories: ,

Features

  • 1000 lb/450 kg Capacity
  • 2-Way Easy Access Ramps
  • 6 C Batteries (Not Included)
  • 3-in-1 Standing Seated Wheelchair Scale
  • BMI Calculation
  • Curved Handrail for Patient Stability

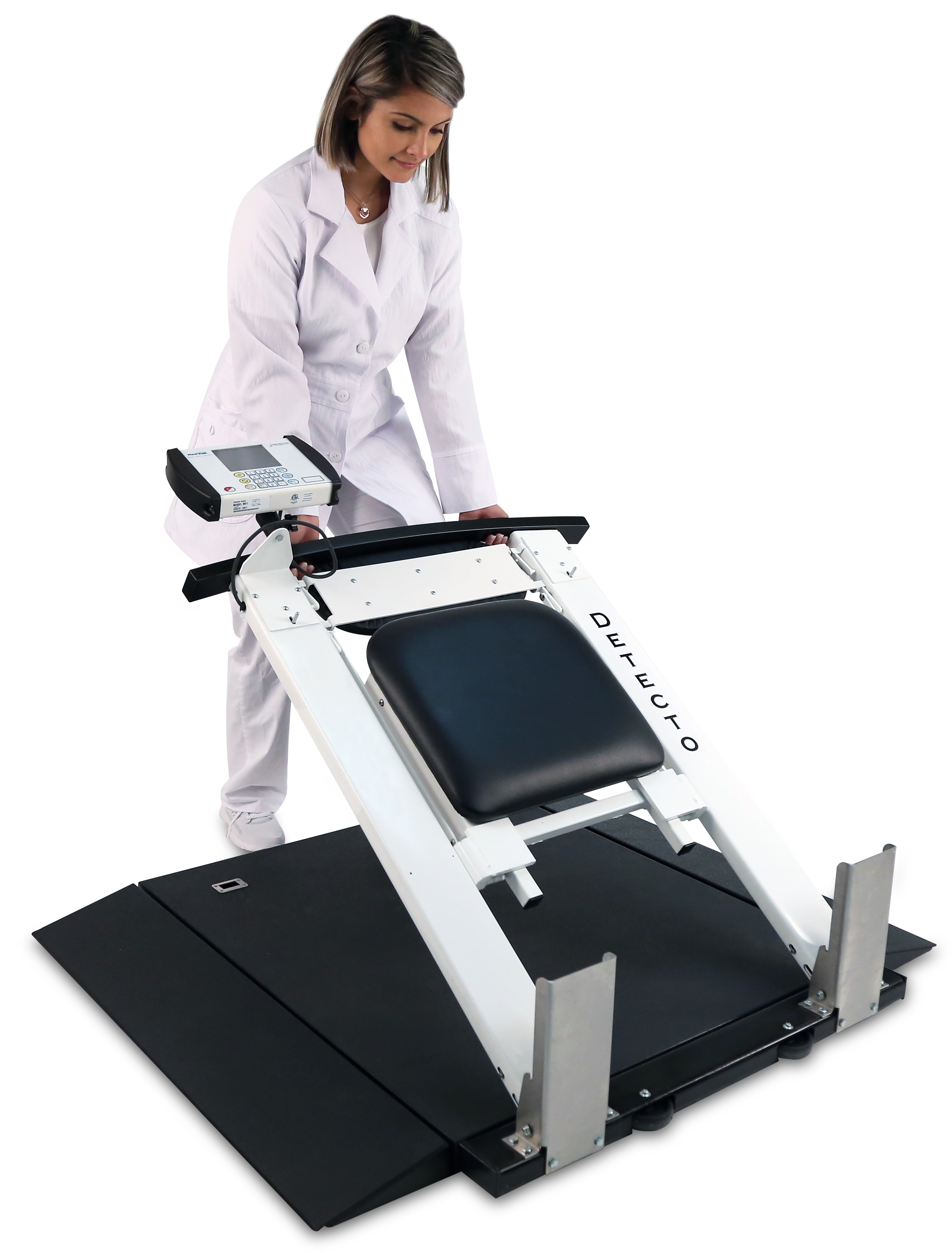

  • Easily-Collapsible Column with Quick Release Lever
  • EMR/EHR Ready
  • Fold-up Chair Seat
  • Low-Profile 2 inch/56 mm High Platform
  • Integral Wheels Ease Support
  • OIML EC Class III Model Available
  • Ramps Rest On Floor for Easier Patient Access
  • Single-Pass Weighing with Keypad and Pushbutton Tare
  • Spacious 32 in x 36 in / 81 cm x 91 cm Platform

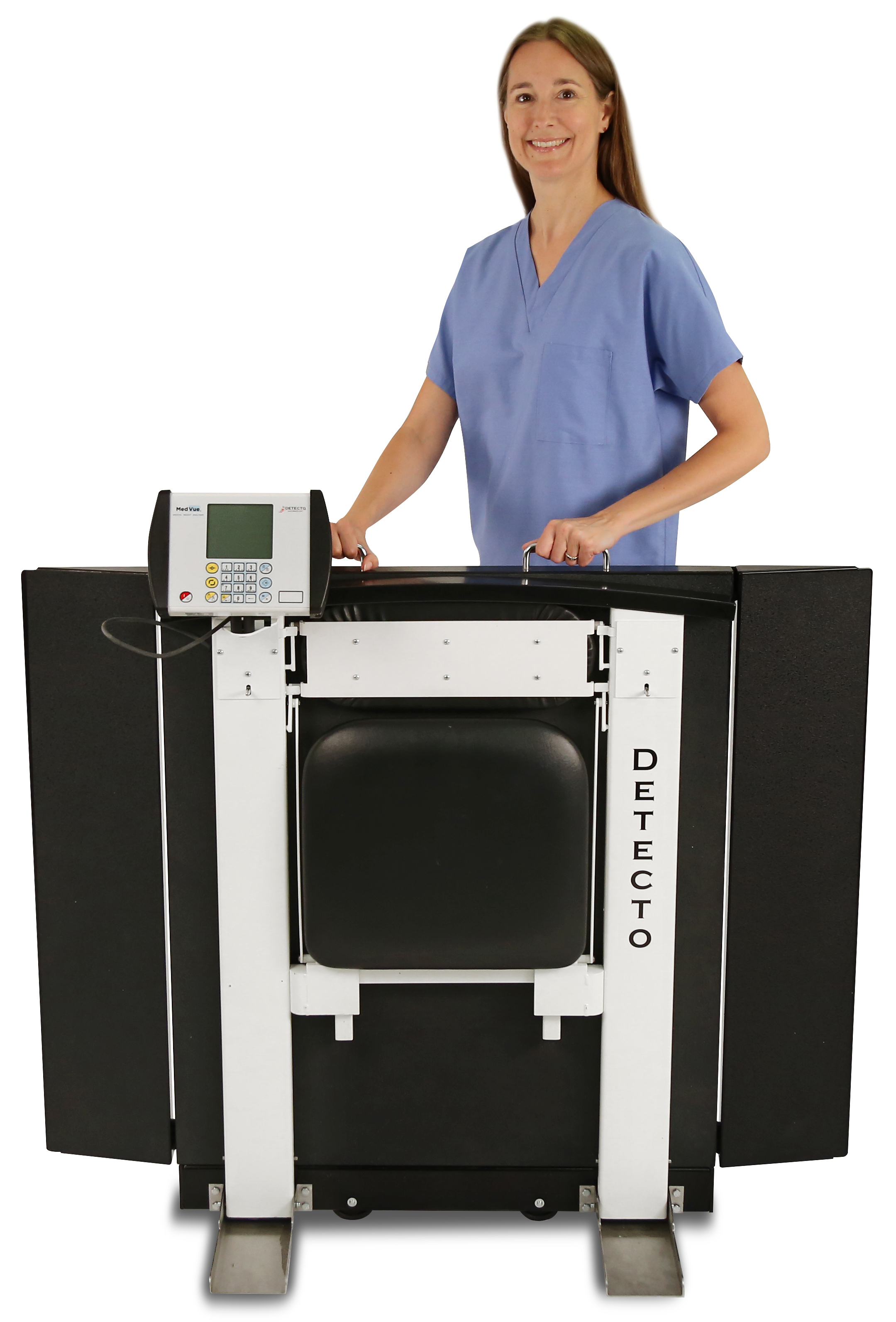

  • Vertical Mode for Transport and Storage
  • Wi-Fi and Ethernet Optional

Specifications

Capacity (6570): 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Capacity (6570KGEU): 300 kg x 0.1 kg or 350 kg x 0.2 kg (OIML EC class III approved)
Platform Size: 32 in x 36 in x 2.2 in / 81 cm x 91 cm x 5.6 cm
Keypad: 19 key, color-coded, sealed membrane
Connectivity: RS232 serial, USB and optional wired and Wi-Fi Ethernet
LCD Display Dimensions: 3.5 in W x 3 in H / 89 mm W x 76 mm H backlit blue LCD
Power: Optional model MV1PWR AC adapter or 6 C batteries (not included)
Resolution: 5,000 divisions, max.
Operating Temperature: 14? to 104?F (-10? to 40?C)
Ramp Size: 36 in (91.4 cm) W x 7.9 in (20.2 cm) L each
Display: 5 digit, 7 segment, 7/8 inch (22.23 mm) high LCD weight digits
Country of Origin: USA
Includes: Scale includes fold-up chair seat, 2-way ramps, integral wheels, curved handrail columns, weight indicator and guide handles
Optional: Wi-Fi for EMR/EHR, Welch Allyn connectivity, and AC adapter
UPC Code: (6560): 809161302301
UPC Code (6560KGEU): 809161304602
Net Weight: 140 lb / 63 kg
Shipping Weight: 150 lb / 68 kg
Maximum Load (Folding Seat): 800 lb / 360 kg
Maximum Load (Platform): 1,000 lb / 450 kg

Options

6570 Wheelchair Scale, Portable, Digital, Folding Column & Seat, 1000 lb x .2 lb / 450 kg x .1 kg

Models

6570 Wheelchair Scale, Portable, Digital, Folding Column & Seat, 1000 lb x .2 lb / 450 kg x .1 kg
