6745, Digital

$0.00

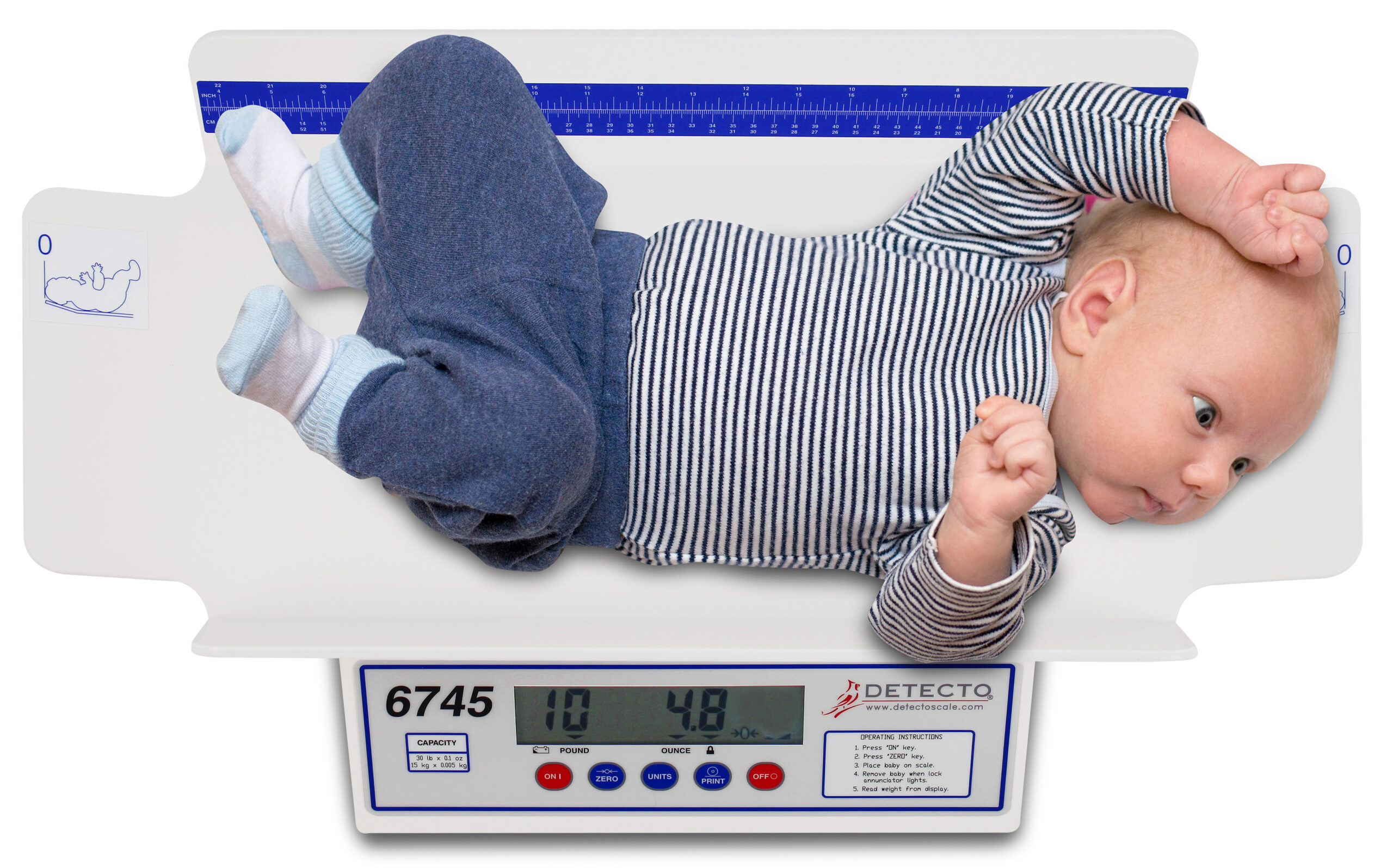

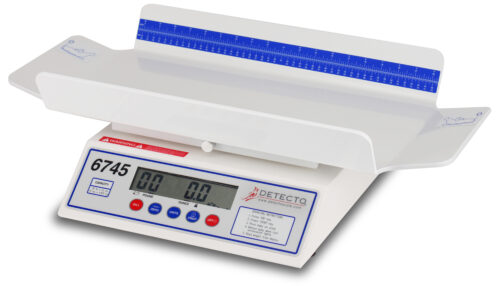

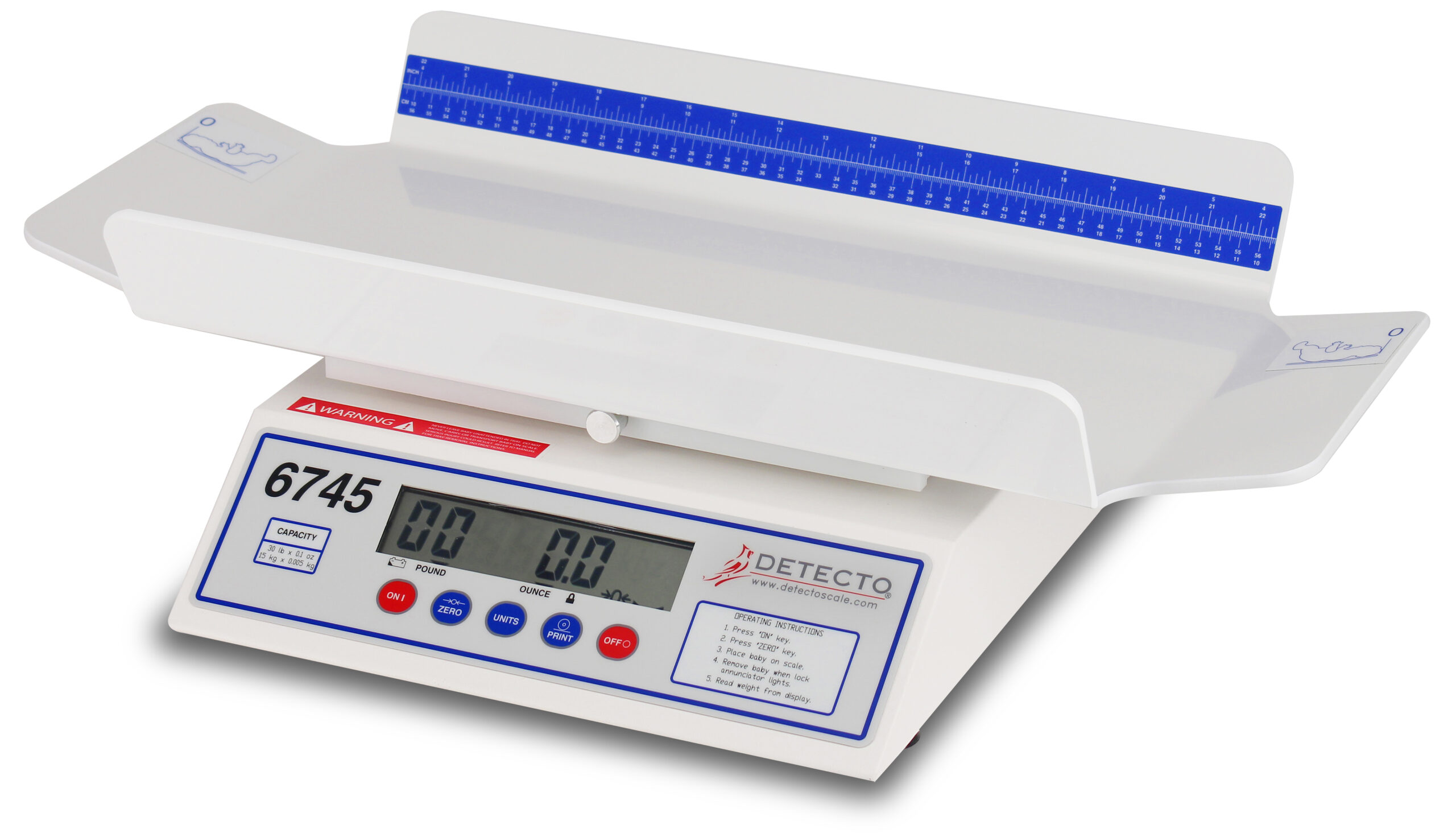

DETECTO’s 6745 baby scale was designed for use in the NICU, nursery, delivery room and pediatric practices where high accuracy and dependability is paramount for weighing the smallest of patients. Step-by-step instructions are displayed right on the keypad for ease of use. The 6745 baby scale features metric lockout, integral measuring tape (up to 22 inch/56 cm), 30 lb x 0.1 oz / 15 kg x 0.005 kg capacity, locking pin for easily removing the tray for cleaning, 1 inch (25 mm) high LCD, and RS232 serial output for connectivity with a printer or PC. The spacious weighing tray measures 26 in W x 12 in D / 66 cm W x 31 cm D. The scale’s ZERO button removes blanket tare weights. Your choice of rechargeable NiCad batteries (not included), standard Alkaline batteries (not included), or UL-listed AC adapter (included). The 6745 pairs perfectly with the Detecto stainless steel baby scale cart.

Download product PDF
Category:

Features

  • 1 in/25 mm high LCD
  • 30 lb/15 kg Capacity
  • AC Power Cord Included
  • Adjustable Lock Thershold
  • Bulit-in Battery Charger
  • Color-Coded Easy-to-Use Keypad
  • From Neonatal to Pediatrics Use
  • Integral Measuring Tape
  • Metric Lockout Available
  • Roomy Weighing Tray
  • Serial Output for Printers
  • Sleep Mode and Auto Shut-off
  • ZERO Button to Remove

Specifications

Capacity: 6745: 30 lb x 0.1 oz / 15 kg x 0.005 kg – 6745KG: 15 kg x 0.005 kg
Overall Dimensions: 26 in W x 14.2 in D x 7.5 in H / 66 cm W x 36 cm D x 19 cm H
Tray Dimensions: 26 in W x 12.2 in D / 66 cm W x 31 cm D
Display: 6-digit, 7-segment 1.0 in / 25 mm high transflective LCD
Power: 6 C size Alkaline, Ni-Cad or NiMH batteries (not included) or 100-240VAC, 12VDC/1.2A medical UL-approved AC adapter (included)
Weight Units: Pounds and Ounces / Kilograms
Integrated Measuring Tape: 0 – 22 in / 0 – 56 cm
Connectivity Port: RS232 serial output for connectivity with a PC or printer for patient records
Net Weight: 18 lb / 8 kg
Shipping Weight: 22 lb / 10 kg
Country of Origin: USA
UPC Codes: 6745: 809161140705 – 6745KG: 809161302806
Keys: ON, ZERO, UNITS, PRINT, OFF
Weighing Units Settings: Pounds and Ounces only, Kilograms only, Pounds and Ounces / Kilograms, Kilograms / Pounds and Ounces
Battery Life: The 6745 can operate for 200 hours of continuous use when using alkaline batteries, or 50 hours of continuous use with fully charged Ni-Cad or NiMH batteries

Options

6800-1006 AC ADAPTER 100-240VAC,12VDC/1.2A MEDICAL -UL APPROVED Call For Pricing

Models

6745 Baby Scale, Digital, 30 lb x .1 oz / 15 kg x .005 kg Call For Pricing
