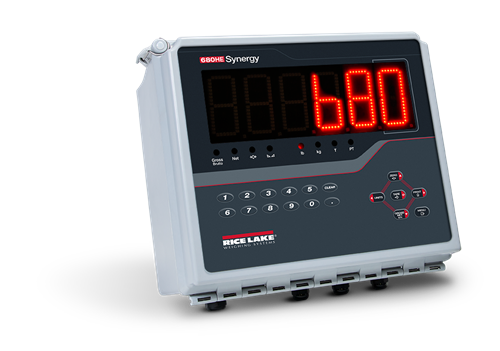

680HE Synergy Series Hostile Environment Digital Weight Indicator

$0.00

Rice Lake’s 680HE hostile environment weight indicator is made to withstand the unique demands of corrosive environments. Ideal for the agriculture industry, fertilizer production and transfer, as well as other applications with a high concentration of corrosive substances such as chlorine, the 680HE uses an FRP enclosure and IP66 rating for the highest level of protection.

The bright 2.5-inch, six-digit display makes it easy to view weight from a distance in any lighting condition. The large display size and local/remote capability give the 680HE the option to be used as a secondary display. Configure display color as red or green for enhanced visibility that best suits the application.

The 680HE supports multiple communication options for connecting to multiple devices such as printers and PCs. The full numeric keypad makes tare entry easy, and four digital I/O points are available for basic weightbased control of interfaced equipment.

Download product PDF
Category:

Features

  • LED display
  • Battery backed time and date
  • Full numeric keypad
  • Multiple communication ports
  • Eight setpoints, 22 configurable types
  • Numeric keyed entry for tare and setpoint entry
  • Formattable tickets
  • Four onboard configurable digital I/O points, TTL logic
  • Local/remote

Options

  • Ethernet bulkhead connector
  • Analog output: 16-bit resolutions, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA

Specifications

Power:
Line voltages: 100 to 240 VAC
Frequency: 50/60 Hz

Power Consumption:
12W (AC) with one 350 ohm load cell, 30W max

Excitation Voltage:
10 VDC (± 5 VDC)

Analog Signal Input Range:
-0.5 mV/V to +7 mV/V

Analog Signal Sensitivity:
1 μV/graduation recommended

A/D Sample Rate:
6.25 to 120 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 100,000

 System Linearity:
Within 0.01% full scale

Digital I/O:
Four configurable I/O-5V logic

Communication Ports:
Two full-duplex RS-232
RS-485/422 (five-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)

Annunciators:
Eight LED annunciators

Display:
Six 2.5 in tall, seven-segment digits

Keys/Buttons:
Flat membrane panel, tactile feel
(18 buttons)

Dimensions:
(L × W × H)
12.50 × 6.30 × 10.50 in
(318 × 160 × 267 mm)

 Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Rating/Material:
IP66, FRP

Weight:
7.9 lb (3.5 kg)

Warranty:
Two-year limited

EMC Immunity:
10 V/m

Approvals:
NTEP 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121C
CE Marked
cULus Listed

Options

195084 Ind Opt,Analog Output 680 Series, Install Kit
