Specifications
Power:
Line voltages: 100?240 VAC
Frequency: 50-60 Hz
DC voltages: 12?24 VDC
Power consumption: 25 W
Excitation Voltage:
10 VDC, 16?x 350? or 32?x 700? load cells
Analog Signal Input Range:
-10 mV to +45 mV
Analog Signal Sensitivity:
0.3 ?V/graduation minimum at 7.5 Hz
1.0 ?V/graduation typical at 120 Hz (manual only)
4.0 ?V/graduation typical at 960 Hz (manual only)
1.0 ?V/graduation recommended
A/D Sample Rate:
7.5 to 960 Hz, software selectable
Resolution:
Internal: 8 million counts/8,000,000 23 bit
Display: 9,999,999
System Linearity / PI Rating:
?0.01% full scale
Digital I/O:
Eight channels on CPU board; optional 24-channel I/O
Communication Ports:
Two ports on CPU board support up to 115,200 bps
Port 2: Full duplex RS-232 with handshaking
Port 4: Full duplex RS-232, simplex 20mA
Keyboard port hard wired (Scan Code 1)
Optional dual-channel serial expansion boards available
Channel A: RS-232, RS-485, 20 mA
Channel B: RS-232, 20 mA
Display:

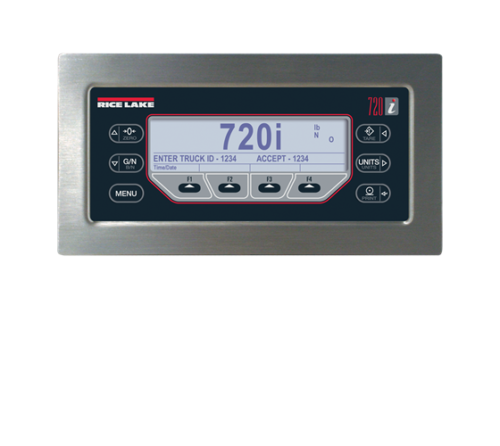

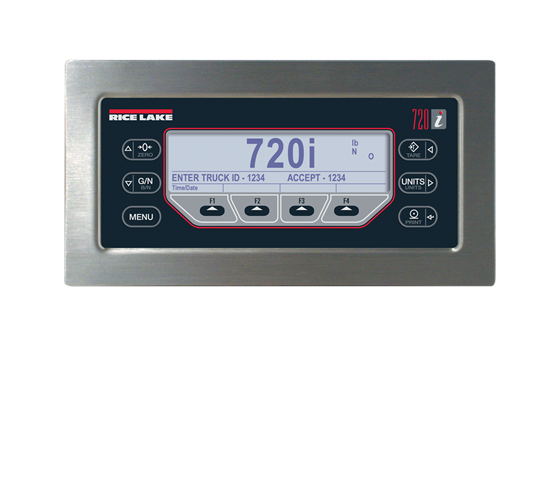

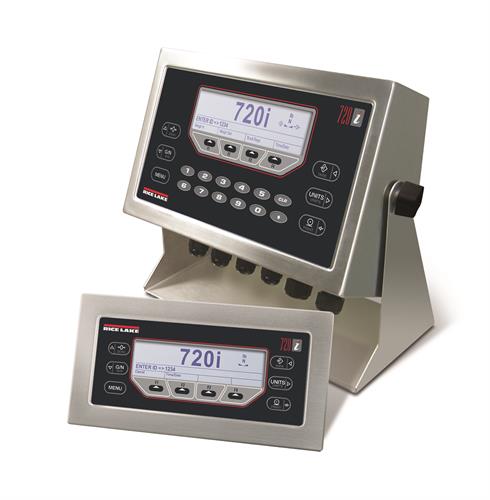

Panel Mount: 3.8 in x 1.2 in (96 mm x 30 mm)

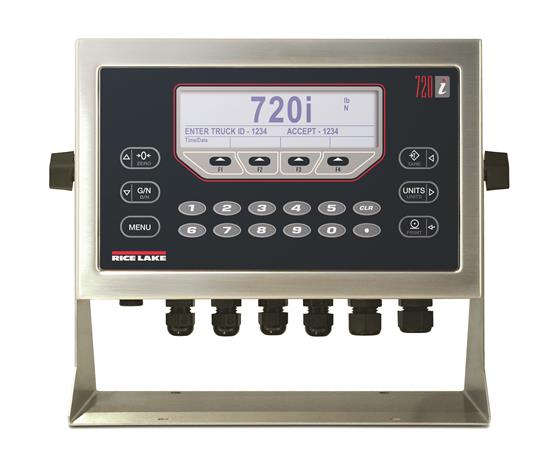

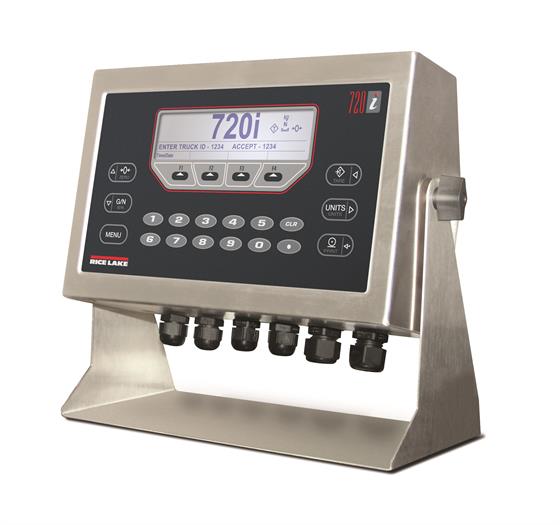

Universal: 5.3 in x 1.5 in (133 mm x 39 mm)
240 x 64 pixel, Transflective LCD with adjustable contrast
Keys/Buttons:
Ten-key (panel mount) membrane panel
22- key (universal mount) membrane panel tactile feel
Optional keyboard connection supported
Temperature Range:
Certified: 14?F to 104?F (-10?C to 40?C)
Operating: 14?F to 122?F (-10?C to 50?C)
Weight:
Universal enclosure: 9.5 lb (4.3 kg)
Panel Mount enclosure: 8.5 lb (3.9 kg)
Rating/Material:
NEMA Type 4X/IP66, stainless steel
Warranty:
Two-year limited warranty
EMC Immunity:
EN 50082 Part 2 IEC EN 61000-4-2, 3, 4, 5, 6, 8, and 11
Approvals:
NTEP CC 08-022, Class III/IIL 10,000d
Measurement Canada AM-5677C Class III/IIIHD 10,000d
OIML R76/1992-GB1-10.09 Class III 10,000d
EU Test Certificate GB-1380 Class III 10,000d
CE Marked
UL/cUL Listed (universal)
UL/cUL Recognized (panel mount)
