750

$0.00

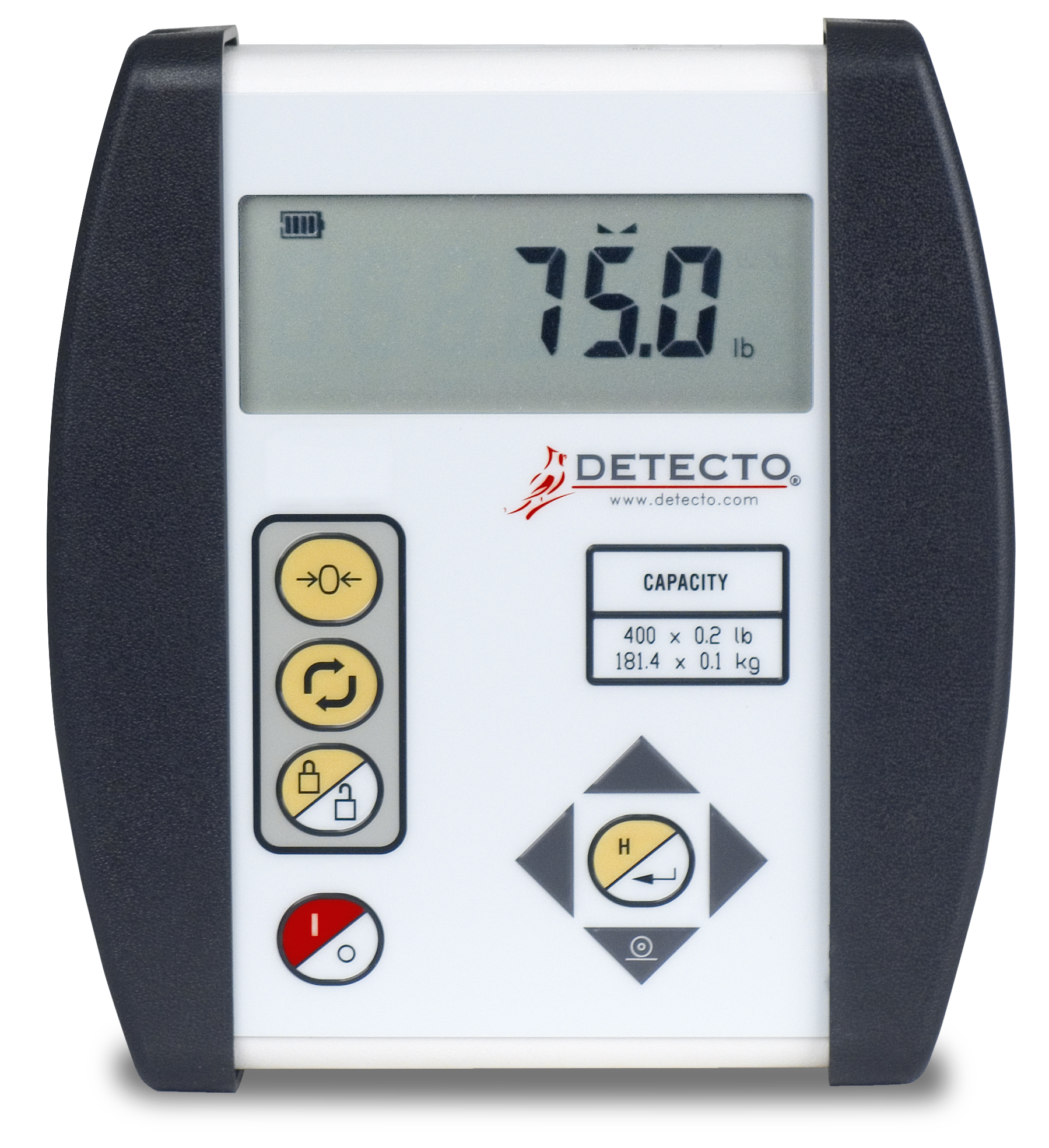

Detecto?s model 750 display features an easy-to-use keypad and extra-large display perfect for patient weighing and viewing by the attending nurse, physician, or patient themself. A quick and simple BMI calculator allows you the ease of BMI calculation when you require it. The durable design and easy-to-replace AA batteries make the 750 perfect for all clinics, hospitals, and physician offices? scales. A RS232 serial port provides EMR/EHR connectivity for efficient patient record-keeping.

Download product PDF
Category:

Features

  • .75-in-high LCD
  • 1 RS232 Serial Port
  • BMI Calculation
  • EMR/EHR Ready

Specifications

Display: 0.7 in / 19 mm high LCD, 6 digit, 7 segment
Sensitiviy: 0 to 2.4 mV/V
Signal Input Range: 0 to 12 mV max
Transducer Excitation: 5.0 VDC
Resolution: 2,500 divisions
Operating Temperature: 14 to 104?F (-10 to 40?C)

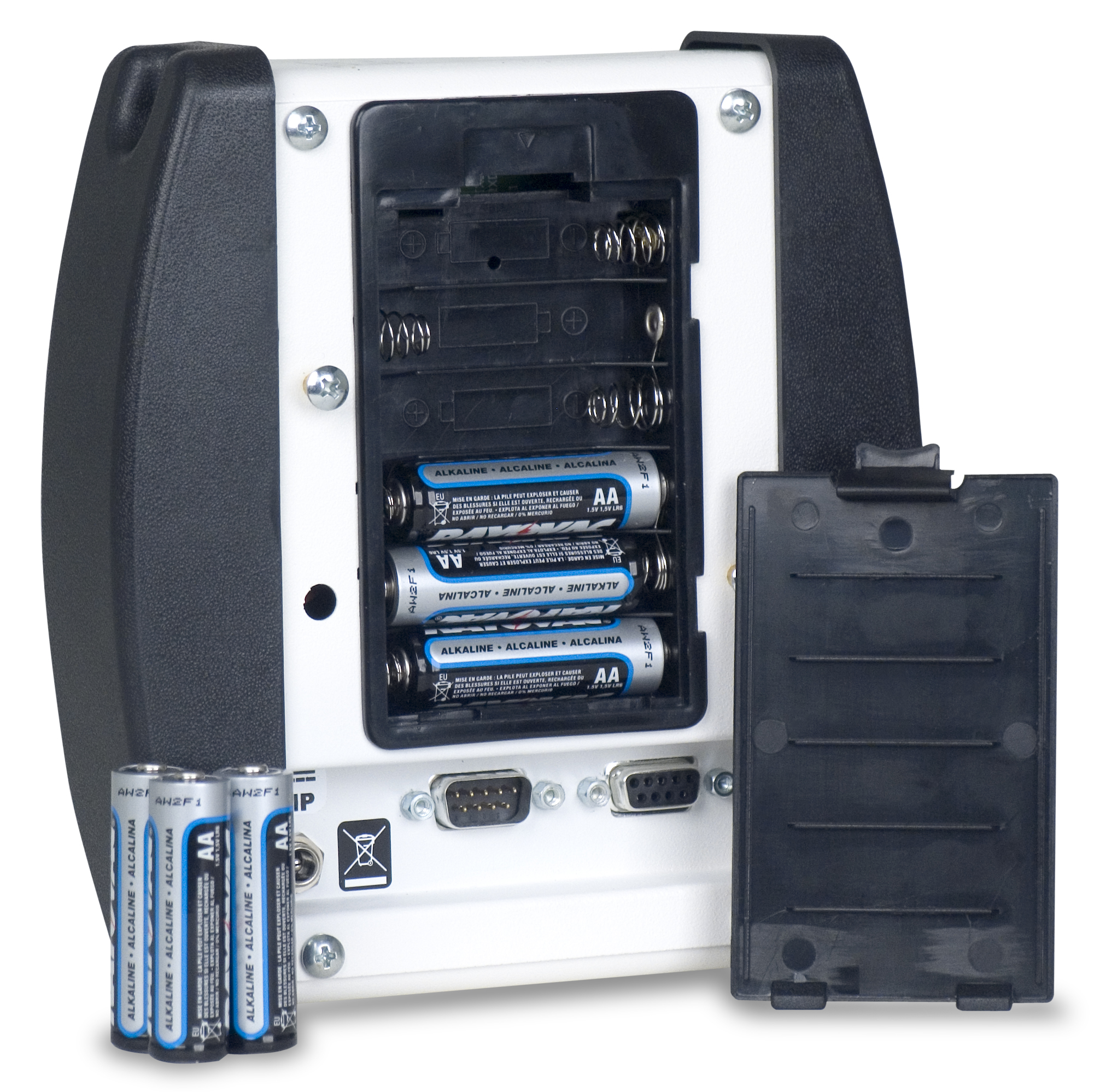

Power Requirements: 6 AA batteries (not included) or optional 100 to 240 VAC 50/60 Hz 12 VDC 1A wall plug-in UL/CSA listed AC power supply
Connectivity: 1 RS232 serial port
Division Value: 1, 2, or 5
Sample Rate: 1 to 16 samples per second
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: pounds, kilograms, pounds/kilograms and kilograms/pounds
Keyboard: Membrane type with 5 keys and 4 dir. arrows
Enclosure Size: 6.125 W x 6.75 H x 1.75 D in / 16 W x 17 H x 4 D cm
Construction: Painted Steel
Connectivity: RS232 serial port

Options

6800-1045 AC Adapter 100-240 VAC / 12 VDC @ 1A
