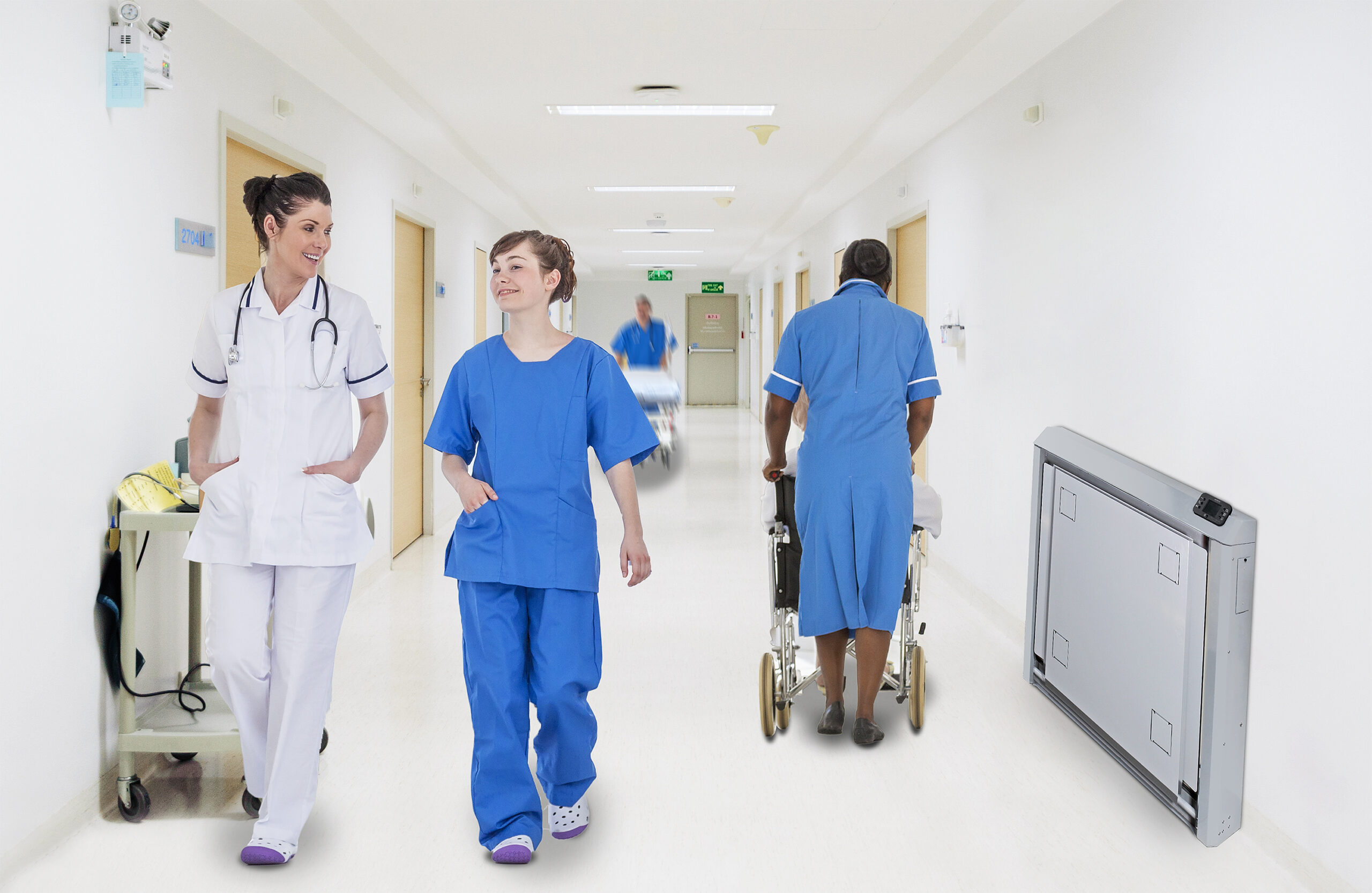

DETECTO’s model 7550 wall-mount wheelchair scale features a unique fold-up storage design that saves space when not in use. It can be installed directly in high-traffic areas and work zones and fold up when done weighing without using up valuable floor space. This retains patient dignity by weighing in open commons areas instead of backrooms or closets. The wall-mount scale stores easily out of the way and aesthetically blends into any environment for a more efficient workflow. The 7550 easily accommodates most wheelchairs, and yet requires very little floor space when folded up.
Bluetooth 5.0 / Wi-Fi are included standard for wireless connectivity with EMR/EHR systems. The stylish gray color allows the 7550 scale to integrate into any healthcare environment. The 7550 features a 1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity, touch-screen LCD, 36 in W x 32 in D / 91 cm W x 81 cm D weighing platform, and sturdy steel construction for long-lasting durability over a lifetime of use.

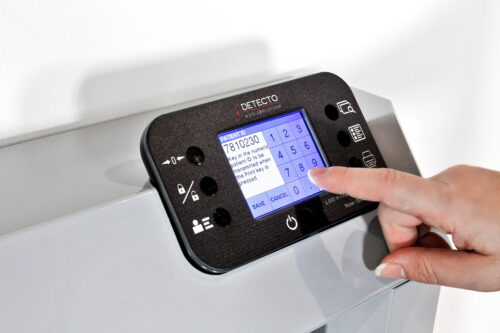

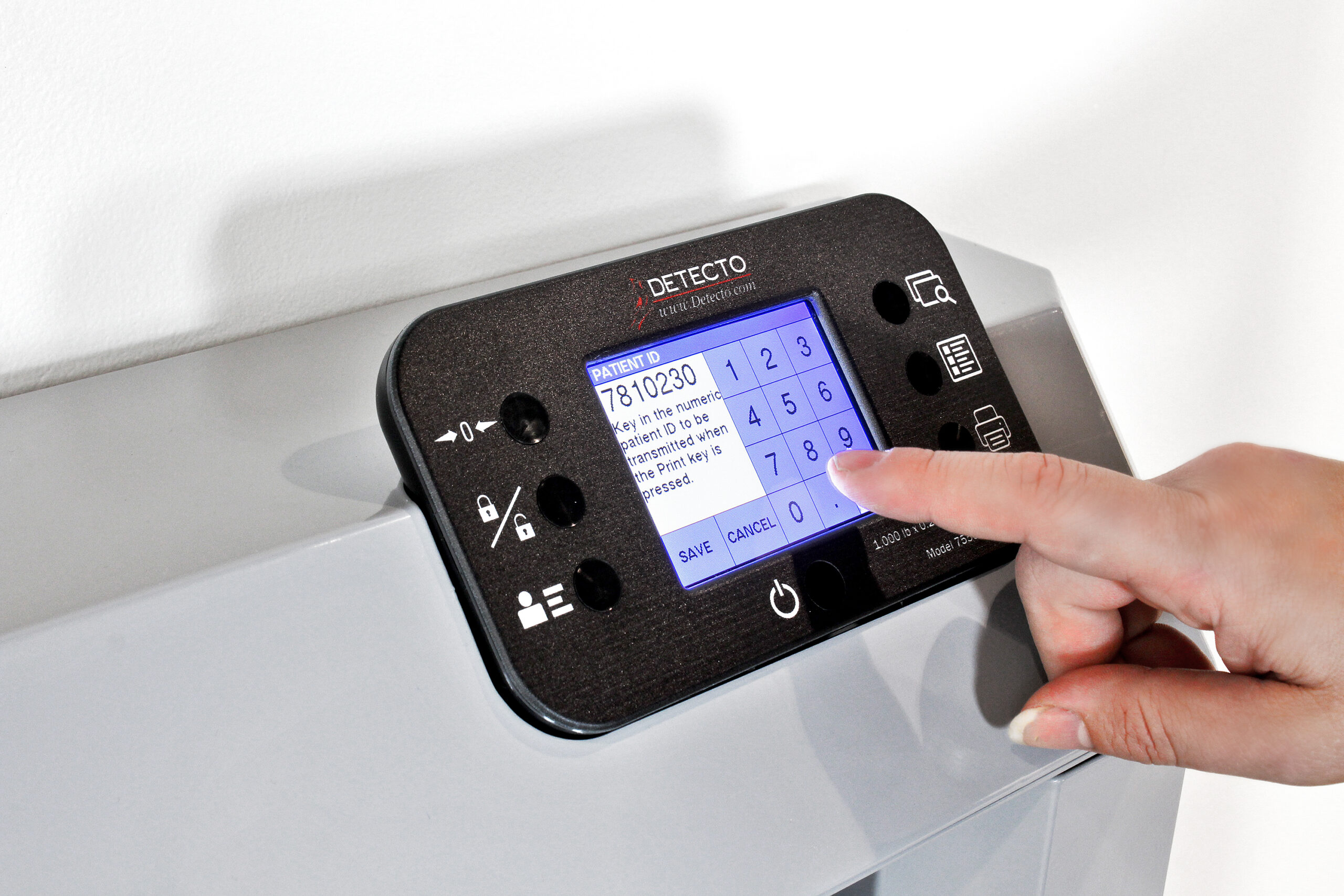

DETECTO’s 7550 incorporates an iPhone-like touchscreen LCD that allows you to enter up to 8-digit patient IDs that can be sent along with patient weight data to EMR systems via Wi-Fi or Bluetooth 5.0. The 7550’s display is a 3.2 in (diagonal) full-color TFT with 320 x 240 resolution for easy-to-read text explanations of various functions and large, vivid weight readouts. The integrated full-color, touchscreen LCD offers wheelchair tare weight mode to remove wheelchair weights and factor patient weight (pushbutton and keypad tare). The scale is powered by 6 C batteries (not included) or an AC adapter (included on some models). It may be used on carpet or hard floor surfaces.

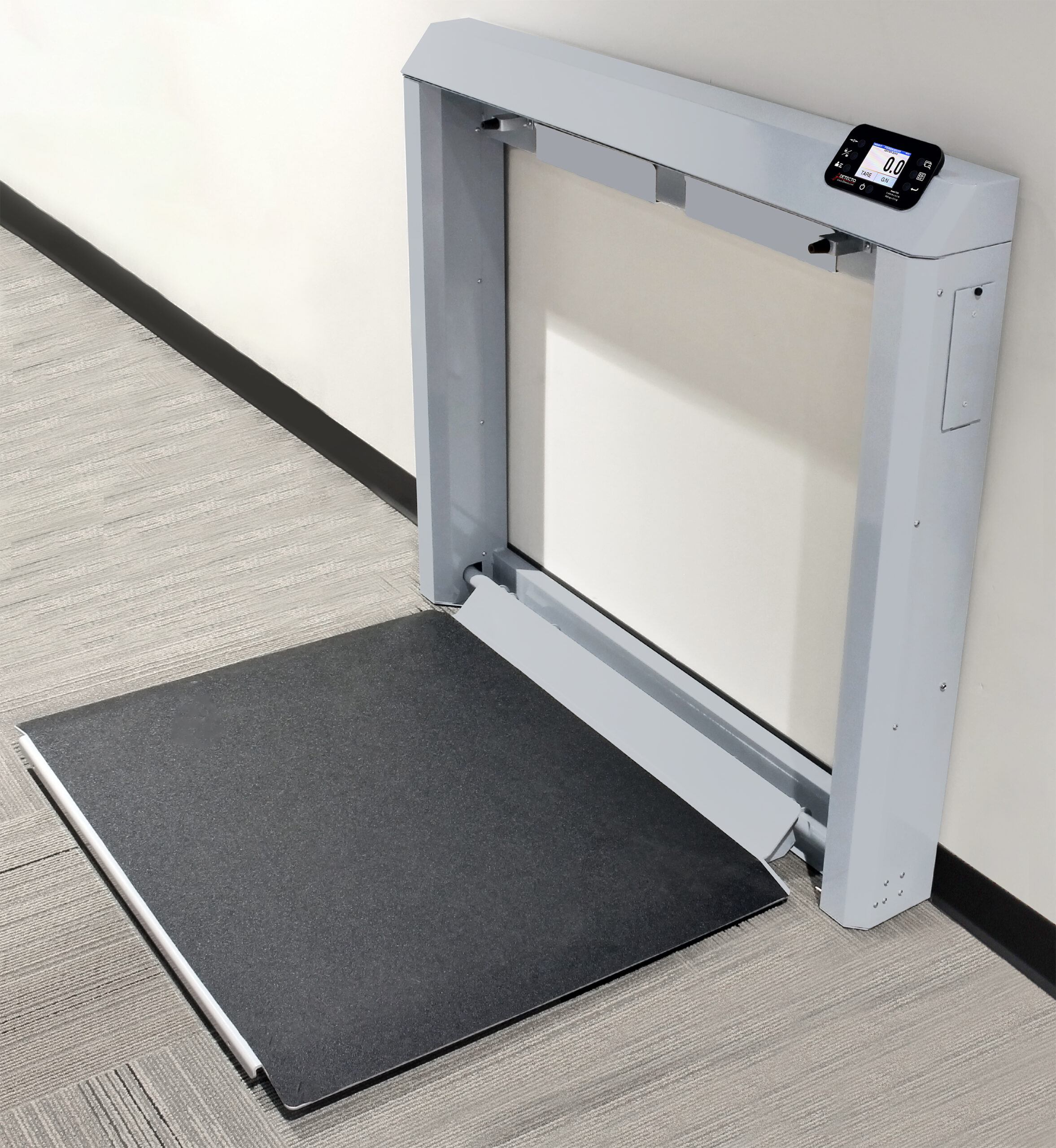

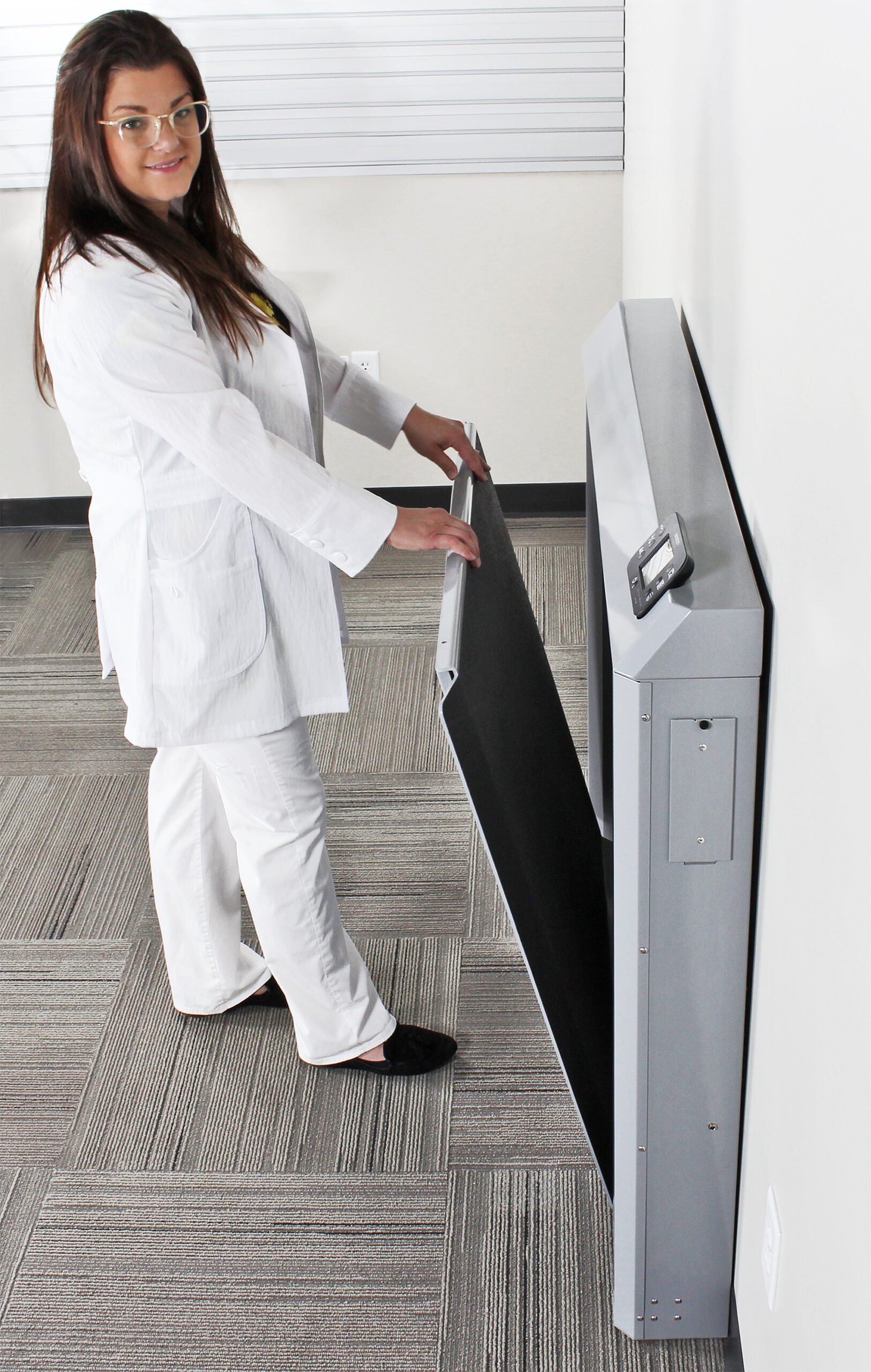

The 7550’s slim 7-inch / 18-cm profile takes up minimal space when installed in a medical facility hallway, clinical office, long-term care center, or nursing home. When you’re ready to weigh, simply lower the platform and the gas spring lifting mechanism will gently lower it into place. The 7550’s 1.5-inch/38-mm high platform is very low to the ground for easy patient access. This makes the process simple and minimal effort required in order to roll a patient on and off the weighing platform.
Retains patient dignity by weighing in open commons areas instead of backrooms or closets
Stylish gray color allows the 7550 scale to integrate into any healthcare environment
The fold-up non-weighing mode allows you to store the scale in high-traffic areas and work zones without using up valuable floor space
The wall-mount scale stores easily out of the way and aesthetically blends into any environment for a more efficient workflow
Slim 7-inch / 18-cm profile takes up minimal space when installed in a medical facility hallway, clinical office, or patient room
1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity
Bluetooth 5.0 / Wi-Fi included standard for wireless connectivity with EMR/EHR systems
Sturdy steel construction for long-lasting durability over a lifetime of use
36 in W x 32 in D / 91 cm W x 81 cm D weighing platform provides ample room
Wheelchair tare entry can be done before or after the patient is on the scale
Accommodates some sizes of power wheelchairs
May be used on carpet or hard floor surfaces
6 C batteries (not included) or AC adapter (included on some models)
Body Mass Index calculation
Units locking into LB or KG
Two-way easy access ramps
Auto weight lock feature
Gas spring platform lifting mechanism
StableSENSE adjustable filtering
Sturdy steel construction for durability
Textured non-skid mat on ramp and platform
Compact vertical fold-up platform conserves space
Pushbutton and keypad tare for wheelchair weights
Integrated full-color, touchscreen LCD with wheelchair tare weight mode to remove wheelchair weights and factor patient weight
Connects with DS smart® via Bluetooth
Specifications
Capacity: 1,000 lb x 0.2 lb / 450 kg x 0.1 kg (models 7550 and 7550-AC); 300 kg x 0.1 kg (model 7550KGEU) Platform Size (Flat Portion): 36 in W x 32 in D x 1.5 in H / 91.4 cm W x 81.3 cm D x 3.8 cm H Overall Width: 50.3 in / 127.6 cm Overall Depth: 39.3 in / 99.7 cm (with platform extended) | 7.3 in / 18.4 cm (without platform extended) Overall Height: 44 in / 111.7 cm Display Type: 3.2 in (diagonal) full color TFT display Resolution: 320 x 240 pixel resolution Number of Characters: Weight: 5 digits, 0.8 in (20 mm) high; Height: 4 digits, 0.35 in (9 mm) high; BMI: 3 digits, 0.35 in (9 mm) high Touchscreen: Resistive touch panel covering the display Keys: Mechanical switch type: Power, Zero, Lock/Release, ID, Cycle Display Mode, Menu, Print Power Requirements: 6 C size Alkaline, Ni-Cad, or NiMH batteries (not included); Domestic models: Optional 100 to 240V AC 50/60Hz 12V DC 1A wall plug-in UL/CSA listed AC power adapter (DETECTO part number 6800-1045); International models: Optional 100 to 240V AC 50/60Hz 12V DC 1A Multi-Pin Input AC power adapter (DETECTO part number 6800-1047) Operating Temperature: 14º to 104º F (-10º to +40º C) Operating Humidity: 0 to 90% non-condensing Construction: Steel Weighing Mechanism: Electronic load cells Lifting Mechanism: Gas springs Communication Interfaces: Wi-Fi and Bluetooth 5.0 Net Weight: 180 lb / 82 kg (7550 and 7550KGEU); 181 lb / 83 kg (7550-AC) Shipping Weight: 238 lb / 108 kg (7550 and 7550KGEU); 239 lb / 109 kg (7550-AC) Country of Origin: USA UPC Codes: 7550: 809161190908; 7550-AC: 809161316803 Approvals: OIML EC Class III model available (7550KGEU)
Options
6800-1045
AC Adapter, 100-240 VAC / 12 VDC 1A
Call For Pricing
Models
7550
Wheelchair Scale, Digital, Wall Mount, Fold Down Platform, 1000 lb x 0.2 lb
Call For Pricing
7550-AC
Wheelchair Scale, Wall Mount, w/AC Adapter, Fold Down Platform, 1000 lb x 0.2 lb
Call For Pricing
7550KGEU
Wheelchair Scale, Digital, Wall Mount, Fold Down Platform, 450 kg x 0.1 kg
