7550, Wall-Mount Fold-Up Wheel Chair Scale

$0.00

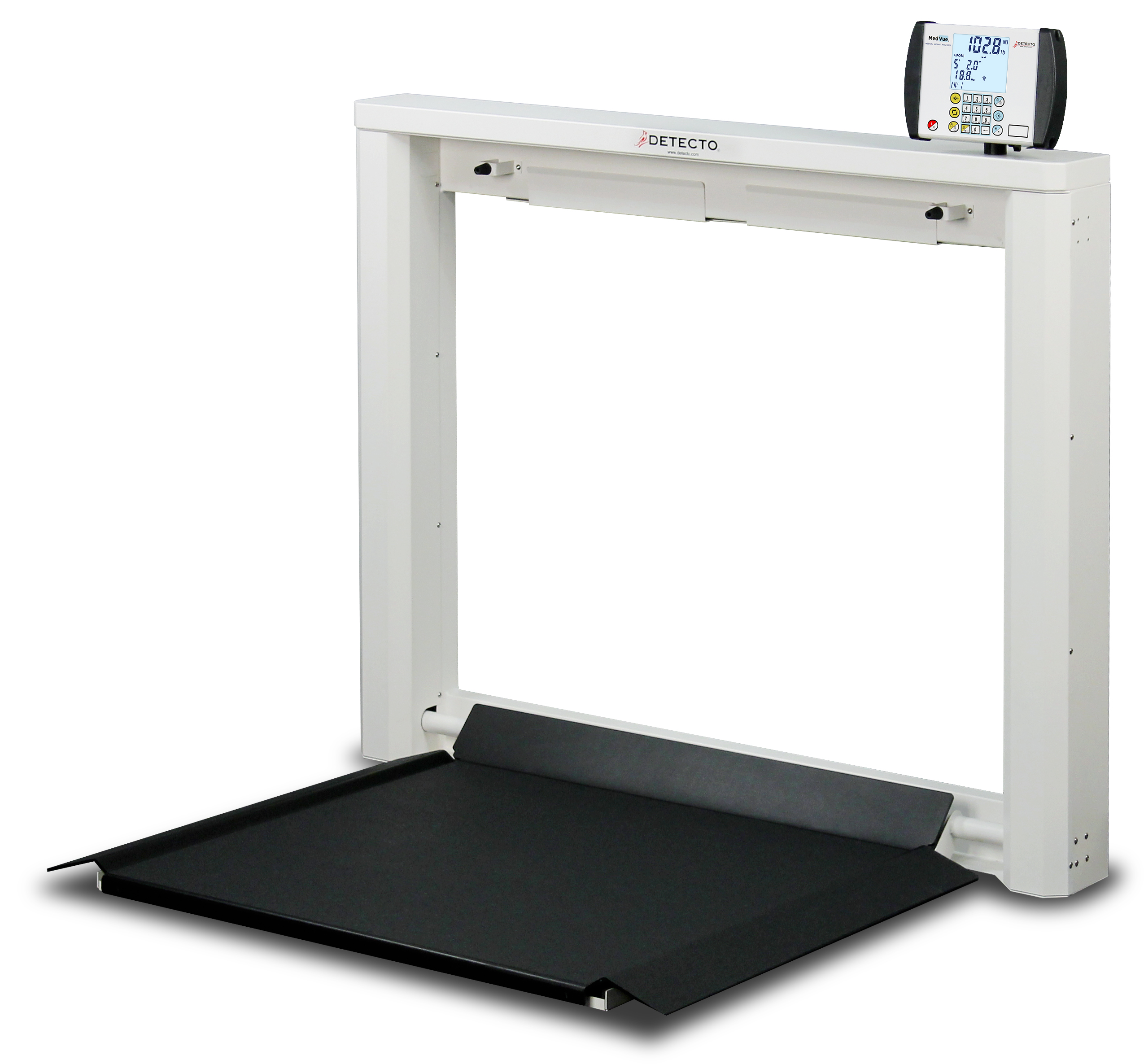

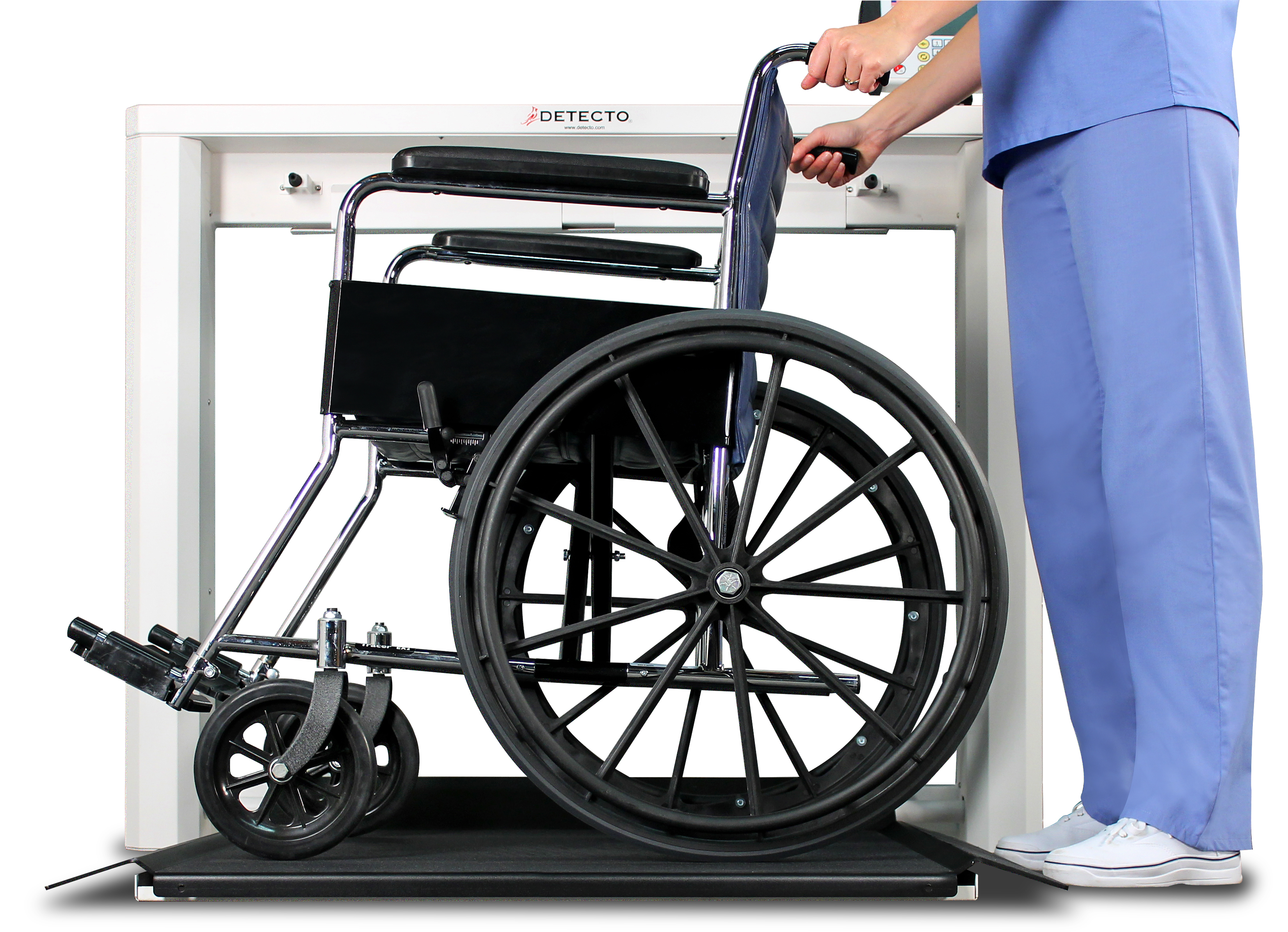

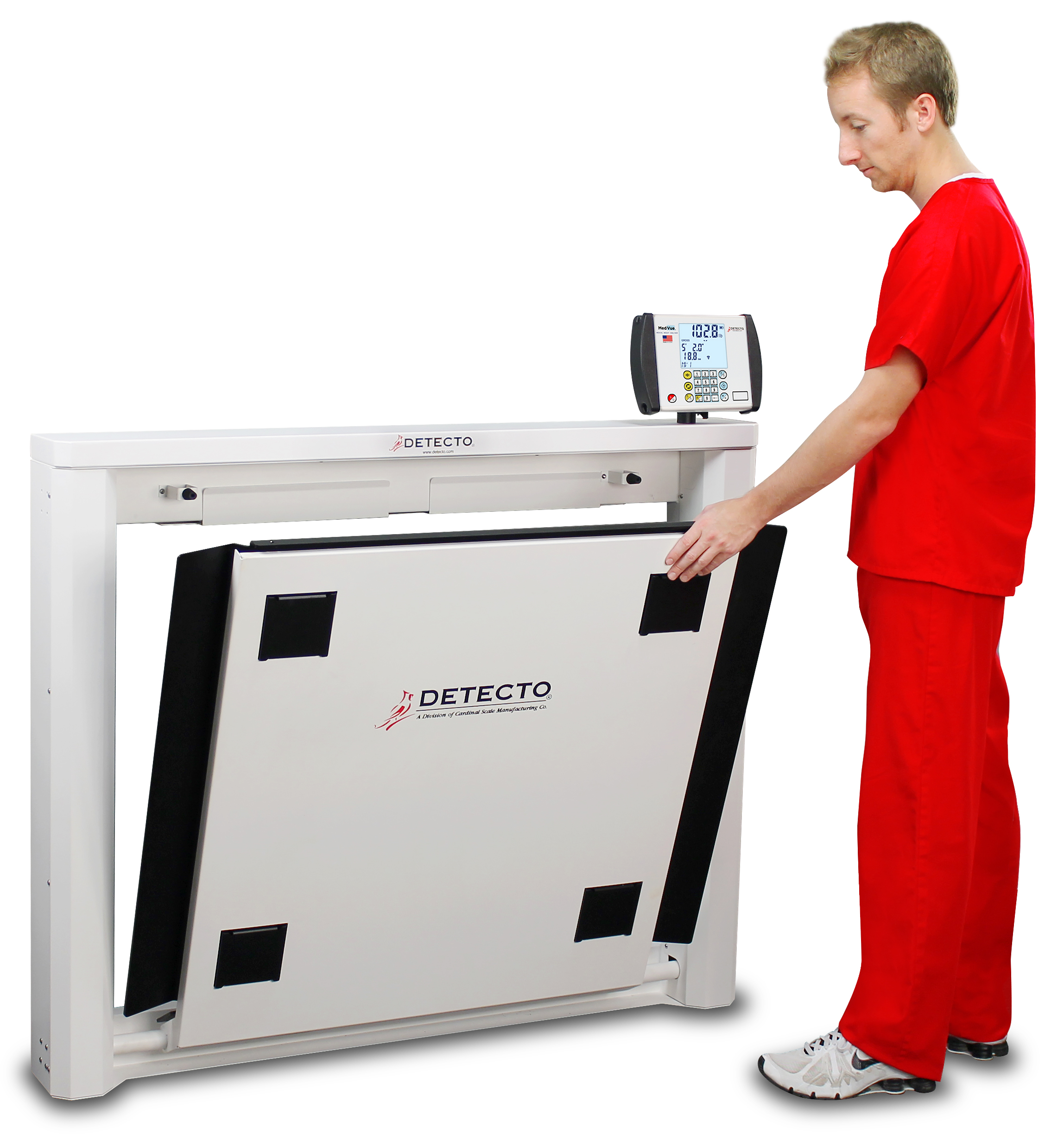

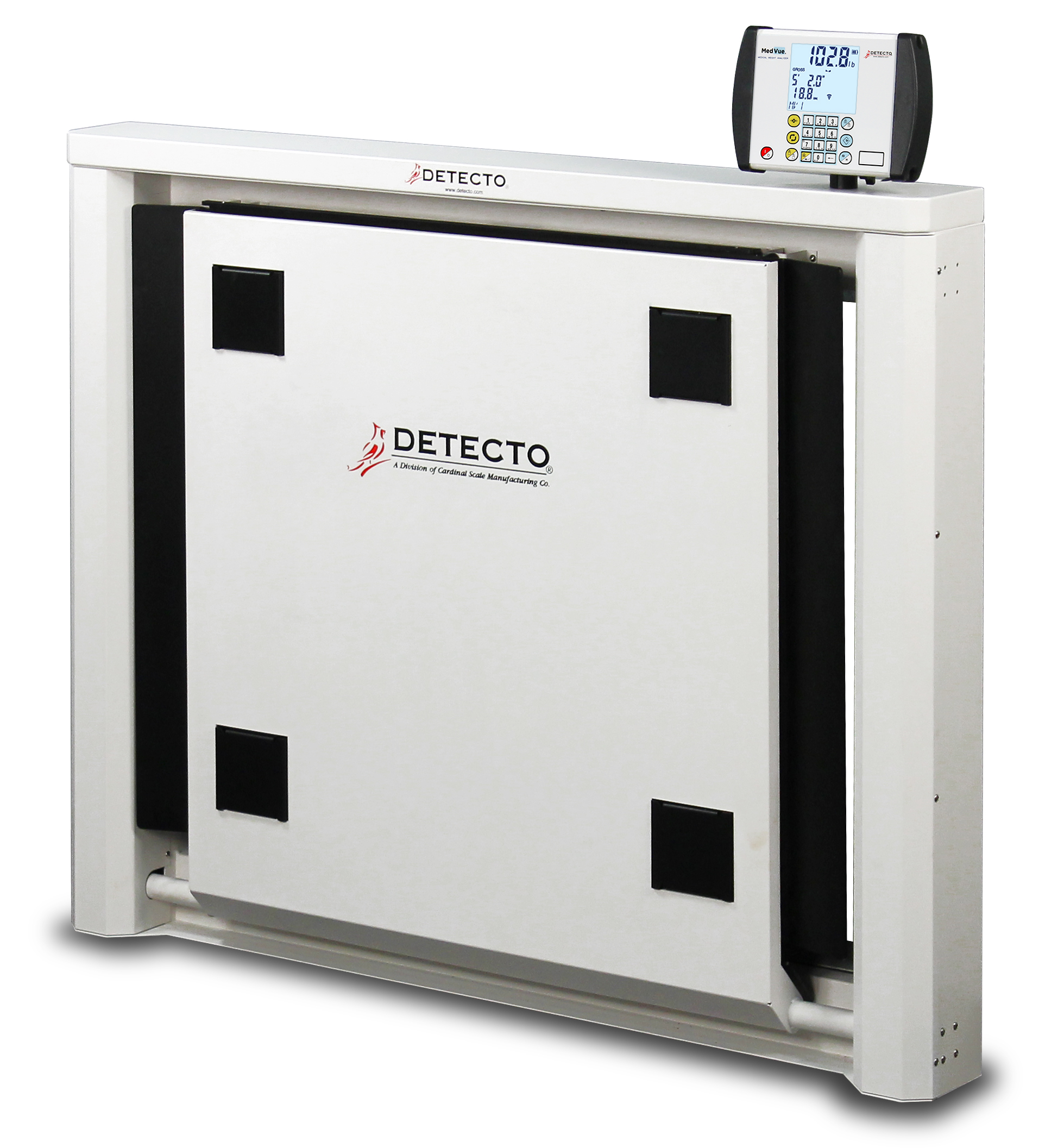

Detecto?s 7550 wall-mount wheelchair scale features a unique fold-up storage design that saves space when not in use. The 7550 easily accommodates most wheelchairs with its spacious 32.3-in W x 33-in D (82-cm W x 84-cm D) platform, and yet requires very little floor space when folded up. The slim 6.6-inch / 17-cm profile takes up minimal space when installed in a medical facility hallway, clinical office, or patient room. When you?re ready to weigh, simply lower the platform and the gas spring lifting mechanism will gently lower it into place. The patient may be easily rolled onto the scale, and a platform lip will hold the wheelchair securely in place for weighing. This scale features a high 1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity for bariatric weighing, two-way ramps, and optional Wi-Fi for EMR/EHR.

Download product PDF

Features

  • 2-Way Easy Access Ramps
  • BMI Calculation
  • Compact Vertical Fold-Up Platform Conserves Space
  • Gas Spring Lifting Mechanism
  • May be Used on Carpet or Hard Floor Surfaces
  • OIML EC Class III Model Available
  • RS232 Serial and USB Ports Standard
  • Slim 6.6-inch Profile
  • Spacious Platform
  • Sturdy Steel Construction
  • Wi-Fi and Ethernet Optional

Specifications

Capacity: 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Platform Size (Flat Portion): 32.3 in W x 33 in D x 1.5 in H / 81.9 cm W x 83.9 cm D x 3.8 cm H
Overall Width: 50.3 in / 127.6 cm
Overall Depth: 39.3 in / 99.7 cm (with platform extended) | 6.6 in / 16.8 cm (without platform extended)
Overall Height: 48.8 in / 123.8 cm (with indicator) | 41.1 in / 104.4 cm (without indicator)
Weight Indicator Dimensions: 9.8 inch W x 6.8 inch H x 1.8 inch D / 248.9 mm W x 172.7 mm H x 45.7 mm D
LCD Display Size: 3.5 inch W x 3 inch H / 89 mm W x 76 mm H backlit blue LCD
Display (Weight): 5 digit, seven segment, 0.875 inch / 22.2 mm high LCD
Display (Height): 4 digit, seven segment, 0.5 inch / 12.7 mm high LCD
Display (BMI): 3 digit, seven segment, 0.5 inch / 12.7 mm high LCD
Display (ID): 14 digit, 14 segment, 0.35 inch / 8.9 mm high LCD
Resolution: 5,000 divisions, maximum
Keypad: Sealed-membrane type with 19 color-coded keys
Connectivity Ports: RS232 serial and USB (standard), wired and Wi-Fi Ethernet (optional)
Power: 6 C cell Alkaline, Ni-Cad or NiMH batteries (not included) or an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR)
Battery Life: 7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF)
Weighing Mechanism: Electronic Load Cells
Lifting Mechanism: Gas Springs
Operating Temperature: 14? to 104? F (-10? to +40? C)
Construction: Steel
UPC Code: 809161190908
Net Weight: 180 lb / 82 kg
Shipping Weight: 238 lb / 108 kg
Approvals: OIML EC Class III model available (7550KGEU)

Options

MV1PWR Medical Grade Power Supply With US Plug

Models

7550 Wheelchair Scale, Digital, Wall Mount, Fold Down Platform, 1000 lb x 0.2 lb
7550KGEU OIML EC Class III Wheelchair Scale, Digital, Wall Mount, Fold Down Platform, 300 kg x 0.1 kg
