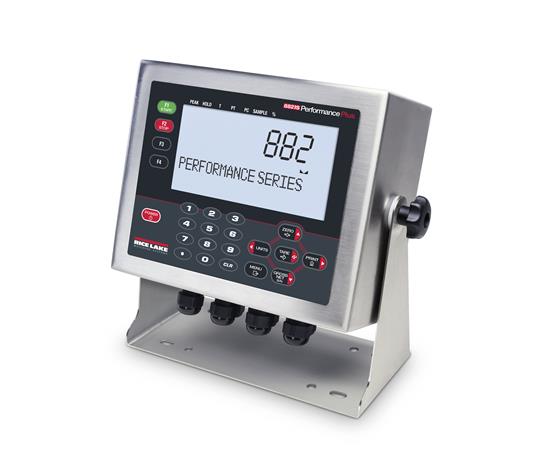

882IS Intrinsically Safe Digital Weight Indicator

$0.00

The 882IS Intrinsically Safe Digital Weight Indicator is built to safely operate in hazardous settings without sacrificing performance. Factory Mutual (cFMus), ATEX and IECEx approvals.

Download product PDF

Features

  • 0.8in, seven-digit, seven-segment LCD display with white LED backlight
  • Stainless steel IP66 enclosure
  • T4 temperature rating
  • Automatic zero and span temperature compensation
  • Excitation for four 350-ohm or eight 700-ohm load cells
  • Tilt stand
  • Numeric keypad (882IS Plus only)
  • Duplex fiber optic interface
  • Power ON/OFF; battery save mode
  • I/O module option: one serial port, optional analog output, optional fieldbus cards, Ethernet TCP/IP
  • Time & date (requires I/O module)
  • FM Entity Approved for use in hazardous locations per Rice Lake Weighing Systems control drawing file number 180948

Specifications

Load Cell Excitation:
3.0 VDC at 87.5 Ω, 4.6 VDC at 700 Ω

Load Cell Current:
34 mA (4 x 350 Ω load cells) or (8 x 700 Ω load cells)

Load Cell Cabling:
Four and six-wire with remote sensing (recommended)

Analog Signal Input Range:
0.6 mV/V – 4.0 mV/V

Analog Signal Sensitivity:
0.2 μV/graduation minimum
1.5 μV/graduation recommended

Conversion Rate:
60 updates/second

Resolution:
10,000 displayed graduations (NTEP Certified),
1,000,000 expanded
The maximum number of allowed graduations will vary by application

Display Increments:
1, 2, 5

Display:
Seven-digit, seven-segment LCD display 121 x 24 dot
matrix messaging area with white LED backlight

Decimal Point:
Configurable with dead zeros

Unit Switching:
Configurable for two units of measurement with front panel operation with conversion for tare and setpoint values

Front Panel Control Switches:
882IS:
Zero, Gross/Net, Tare, Print, Units Conv, Start, Stop
882IS Plus: Zero, Gross/Net, Tare, Print, Units Conv, Start, Stop, Full numeric keypad

Front Panel:
Ten-button plus power button flat membrane panel

Front Panel Annunciators:
Center Zero, Gross, Net, Motion, lb, kg, oz, g

Motion Band:
Configurable to ± 1 or ± 3 graduations, 1 second delay (or Off)

Power Input:
5.8-7.9 VDC,100-175 mA
Maximum power consumption 0.25 watts

Operating Temperature:
14° F to 104° F (-10° C to 40° C) legal

Electrical Operating Temperature:
14° F to 104° F (-10° C to 40° C) legal

Rating/Material:
Stainless steel IP66 enclosure

Optional Battery:
Operating times: 4 x 350 Ω = 60 hrs.
1 x 350 Ω = 80-100 hrs. Charging times: 8-10 hrs

Weight:
6.1 lb (2.8 kg)

Warranty:
One-year limited warranty

Intrinsic Safety:
FM/cFM:
Class I,II,III, Division 1, Groups ABCDEFG T4
Class I, Zone 0 AEx/Ex ia IIC T4 Ga
Zone 20 AEx/Ex ia IIIC T135°C Da
Ta = -10°C to +40°C (14°F to 104°F)
ATEX/IECEx:
II 1 G Ex ia IIC T4 Ga
II 1 D Ex ia IIIC T135°C Da

Approvals:
UL/cUL Listed*
FM Entity
ATEX
IECEx
NTEP
Measurement Canada

*UL is only applicable to 882IS I/O and battery charger

Options

180831 Battery Option,IS6V2 Barrier Protected, Rechargeable
194191 Battery Charger, IS6V2 100-240VAC NEMA 5-15 North America Plug
194189 Battery Charger, IS6V2 100-240VAC CEE 7/7 Continental Europe Plug
194192 Battery Charger, IS6V2 100-240Vac BS1363 UK Molded Plug
180837 Power Supply,882IS mb-EPS-100-240-X2, Dual Output 6.8VDC 200mA
195109 Power Supply,882IS Metric mb-EPS-100-240-X2, Dual Output 6.8VDC 200mA Metric thread adapter included 1/2in NPT – M20
179668 Cable, M12 Power 22 inch Hazardous Location, D-code straight male to right angle female
179669 Cable,M12 Power 10 Foot Hazardous Location, D-code straight male to right angle female
179670 Cable,M12 Power 50 Foot Hazardous Location, D-code straight male to right angle female
179671 Cable,M12 Power 100 Foot Hazardous Location, D-code straight male to right angle female
163751 Tilt Stand,880 Desktop
179678 Tilt Stand,882IS Battery IS6V2 Option

Models

195091 Indicator,882IS 7.5 VDC SST Enclosure 5 Button Keypad With Standard Tilt Stand
185288 Indicator,882IS 7.5 VDC SST Enclosure 5 Button Keypad With Battery Pack and Tilt Stand 115-230VAC charger NEMA 5-15(North American plug)
194231 Indicator,882IS 7.5 VDC SST Enclosure 5 Button Keypad With Battery Pack and Tilt Stand 115-230VAC CEE 7/7 Continental Europe Charger
194232 Indicator,882IS 7.5 VDC SST Enclosure 5 Button Keypad With Battery Pack and Tilt Stand 115-230VAC BS 1363 UK Charger
196273 Indicator,882IS 7.5 VDC SST Enclosure 5 Button Keypad With Battery Pack and Tilt Stand 115-230VAC AU Charger
185290 Indicator,882IS 7.5 VDC SST Encl. 5 Button Keypad W/AC Power Supply w/10ft(3m) PS cable 115-230VAC
194235 Indicator,882IS 7.5 VDC SST Enclosure 5 Button Keypad With A/C Power Supply. 115-230VAC with metric thread adapter (1/2NPT – M20)
