A&D Inspection In-Motion Checkweigher

$0.00

The AD-4961 Series checkweigher from A&D is equipped with rejecter output, alarm output and metal detector input for a high level of precision checkweighing at 0.08 grams.

A&D In Motion Checkweigher

Download product PDF
Categories: ,

Features

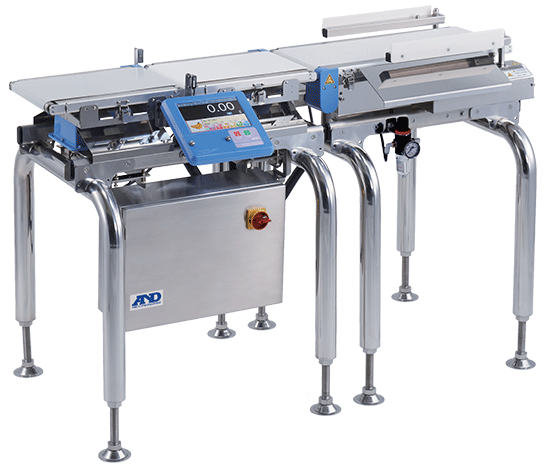

AD-4961 Checkweighers

  • Stainless steel, IP65 rated
  • Seven-inch, color touchscreen
  • Modbus RTU/Modbus TCP standard
  • Rejecter output, alarm output, metal detector input, RS-232C, TCP/IP and USB port

*Assembly is required

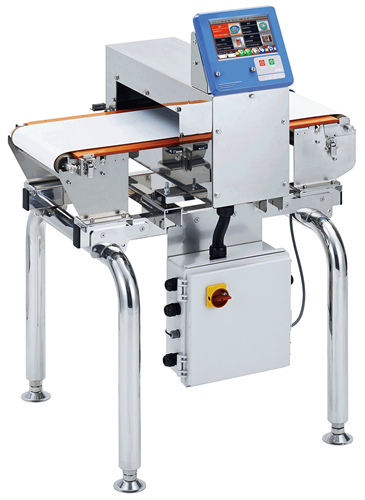

AD-4971 Metal Detector

  • ?Protected from dust and water to IP65 standards.Hygienic design with the entire system washable
  • ?Suitable for use in HACCP program
  • ?Automatic sensitivity setting function
  • ?Easy operation with 7 inch color touch panel
  • ?Variable belt speed of 10-60m/min
  • ?Standard Ethernet I/O allowing easy networking via LAN
  • ?Inspection history function with the ability to record 100 inspection results in the internal memory
  • ?Detachable conveyor belt

*Assembly is required

Specifications

AD-4961-600-1224 Specifications

Capacity:
600 g

Resolution:
0.01 g

Accuracy:
0.08 g

Construction:
IP65 stainless steel construction with ABS resin display

Display:
7 in color touchscreen

Speed:
Up to 393 ft per minute (120 m per min)

Max Throughput:
400 pcs per min

Container Weights:
Up to 4.4 lb (2,000 g) Resolution down to 0.01 g (dependent on scale capacity)

Belts:
Food grade urethane belt

Recorded Items:
1,000 items (ten groups x 100 items)

Communications:
Modbus TCP, Modbus RTU, RS-232, RS-485, Ethernet TCP/IP (PostScript Printer), USB (for PostScript Printer, USB memory, data storage, image import use)

Input/Output:
External input for four non-voltage contact points External output for eight relay points

Power Configuration:
100 VAC-240 VAC (+10%/-15%) single phase, 50/60 Hz; 180 VA

Operating Temperature:
23?F to 104?F (-5?C to 40?C)

External Dimensions:
(L x W x H) 27.5 in x 25.9 in x 27.9 in-33.8 in (700 mm x 660 mm x 710 mm-860 mm)

AD-4961-2KD-2035 Specifications

Capacity:
500 g/2,000 g

Resolution:
0.01 g/0.1 g

Accuracy:
0.08 g/0.18 g

Construction:
IP65 stainless steel construction with ABS resin display

Display:
7 in color touchscreen

Speed:
Up to 393 ft per minute (120 m per min)

Max Throughput:
320 pcs per min

Container Weights:
Up to 4.4 lb (2,000 g) Resolution down to 0.01 g (dependent on scale capacity)

Belts:
Food grade urethane belt

Recorded Items:
1,000 items (ten groups x 100 items)

Communications:
Modbus TCP, Modbus RTU, RS-232, RS-485, Ethernet TCP/IP (PostScript Printer), USB (for PostScript Printer, USB memory, data storage, image import use)

Input/Output:
External input for four non-voltage contact points External output for eight relay points

Power Configuration:
100 VAC-240 VAC (+10%/-15%) single phase, 50/60 Hz; 180 VA

Operating Temperature:
23?F to 104?F (-5?C to 40?C)

External Dimensions:
(L x W x H) 27.5 in x 25.9 in x 27.9 in-33.8 in (700 mm x 660 mm x 710 mm-860 mm)

AD-4961-6K-2035 Specifications

Capacity:
6,000 g

Resolution:
0.1 g

Accuracy:
1.0 g

Construction:
IP65 stainless steel construction with ABS resin display

Display:
7 in color touchscreen

Speed:
Up to 262.4 ft per minute (80 m per min)

Max Throughput:
145 pcs per min

Container Weights:
Up to 13.2 lb (6,000 g) Resolution down to 0.1 g (dependent on scale capacity)

Belts:
Food grade urethane belt

Recorded Items:
1,000 items (ten groups x 100 items)

Communications:
Modbus TCP, Modbus RTU, RS-232, RS-485, Ethernet TCP/IP (PostScript Printer), USB (for PostScript Printer, USB memory, data storage, image import use)

Input/Output:
External input for four non-voltage contact points External output for eight relay points

Power Configuration:
100 VAC-240 VAC (+10%/-15%) single phase, 50/60 Hz; 180 VA

Operating Temperature:
23?F to 104?F (-5?C to 40?C)

External Dimensions:
(L x W x H) 39.5 in x 28.9 in x 28.3 in-34.2 in (1,005 mm x 736 mm x 720 mm-870 mm)

AD-4971 Metal Detector Specifications

Construction:
IP65 stainless steel construction with ABS resin display

Aperture Sizes:
From 13.7 in x 3.9 in to 17.7 in x 9.8 in (350 mm x 100 mm to 450 mm x 250 mm)

Display:
7 in color touchscreen

Speed:
Up to 196 ft per minute (60 m per min)

Belts:
Food grade urethane belt

Recorded Items:
1,000 items

Communications:
Modbus TCP, Modbus RTU, Ethernet TCP/IP (PostScript Printer), USB
(for PostScript Printer, USB memory, data storage, image import use)

Input/Output:
External input for four non-voltage contact points External output for eight relay points

Power Configuration:
100 VAC-240 VAC (+10%/-15%) single phase, 50/60 Hz; 180 VA

Operating Temperature:
32?F to 104?F (0?C to 40?C)

Models

AD-4961 2kg Checkweigher

Part #?176605 Product DescriptionEZICheck 2kg Checkweigher

AD-4961 2kg Rejector

Part #?176607 Product DescriptionEZICheck 2kg Reject Dual Channel Flipper Reject
Part #?176610 Product DescriptionEZICheck 2kg Reject Air Jet Reject With 2 Nozzle
Part #?176608 Product DescriptionEZICheck 2kg Reject Single Channel Drop Reject

AD-4961 600g Checkweigher

Part #?186317 Product DescriptionEZICheck 600g Checkweigher

AD-4961 600kg Rejector

Part #?186318 Product DescriptionEZICheck 600g Reject Air Jet Reject With 2 Nozzles

AD-4961 6kg Checkweigher

Part #?176606 Product DescriptionEZICheck 6kg Checkweigher

AD-4961 6kg Rejector

Part #?176609 Product DescriptionEZICheck 6kg Reject Push Ram Reject

AD-4971 Metal Detector

Part #?186325 Product DescriptionEZICheck Metal Detector 100mm Aperture Height, 350mm Aperture Width
Part #?186326 Product DescriptionEZICheck Metal Detector 170mm Aperture Height, 350mm Aperture Width
Part #?186327 Product DescriptionEZICheck Metal Detector 250mm Aperture Height, 350mm Aperture Width
Part #?186328 Product DescriptionEZICheck Metal Detector 170mm Aperture Height, 450mm Aperture Width
Part #?186329 Product DescriptionEZICheck Metal Detector 250mm Aperture Height, 450mm Aperture Width
Part #?186330 Product DescriptionEZICheck Metal Detector Tower Light
