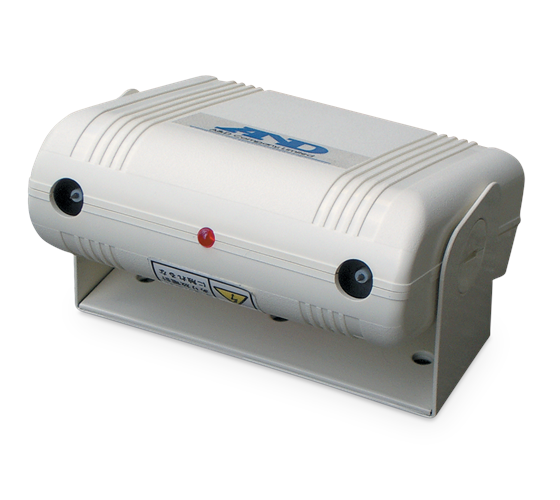

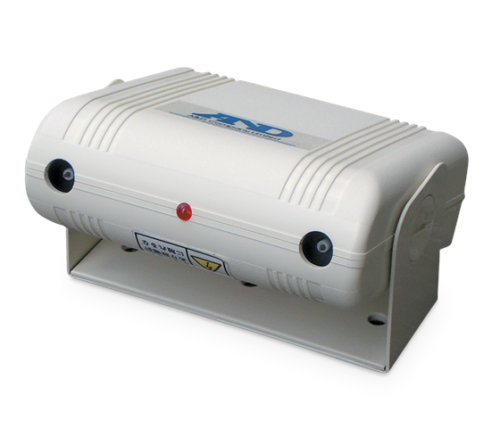

A&D Weighing AD-1683 Static Eliminator

$0.00

The A&D Weighing AD-1683 static eliminator eliminates static charges from quickly running or highly electrified work pieces with little or no reverse charge.

Download product PDF
Category:

Features

  • Can be easily and safely installed; requires no high-voltage wiring
  • Eliminates static charges from quickly running or highly electrified work pieces
  • Little or no reverse charge is induced by irradiated ions because of its excellent ion polarity or the potential of the charged object
  • Achieves static elimination with a huge degree of efficiency regardless of the polarity or the potential of the charged object
  • Suited for static elimination in narrow and remote places because of its lengthy ion irradiation distance
  • Produces only a little amount of ozone thanks to its high ion generation efficiency
  • A current limiting circuit is incorporated in the ion generating electrode to reduce the possibility of electric shock
  • No swing in surface potential of the charged object

Specifications

AD-1683
Part # 97610
Elimination Range Distance: 10 to 30 cm from the electrode AREA: 30 x 30 cm
Static Elimination Method DC corona discharge DUAL-DC
Static Eliminating Electrode Tungsten emitter
Environmental Conditions -5° C to 40° C, 35% to 85%RH (non-condensing)
Weight 300 g
Power 100-240 V AC, 50/60 Hz, 1.5 V AC
Warranty One-year limited
Return Policy A&D Weighing Standard Policy – restock fee may apply
