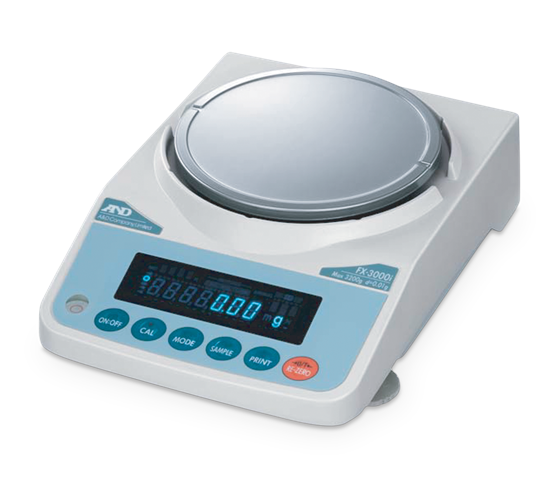

A&D Weighing FX-i Series Precision Balance
$0.00
The A&D Weighing FX-i Series precision balance has data memory function, comparator function and Super Hybrid Sensor (SHS) technology.
Download product PDF
Features
- Compact Super Hybrid Sensor Technology (SHS)
- Vacuum Fluorescent Display (VFD)
- GLP/GMP/ISO compliant to either AD-8121 printer or computer. Transmits date, time, ID number, serial number and calibration data
- RS-232C bidirectional communication
- Multiple units of measurement
- Response indicator function
- Weighing chamber
- Underhook weighing
Specifications
|
FX-120i^ |
FX-200i^ |
FX-300i^ |
FX-300iNC^ |
| Part # |
98021 |
98022 |
98023 |
— |
| Canada |
| Part # |
— |
— |
— |
168077 |
| Capacity |
122 g |
220 g |
320 g |
320 g |
| Resolution |
0.001 g |
0.001 g |
0.001 g |
0.001 g |
| Operating Modes |
Weigh, Count, Percent, Animal Weigh, Statistical, Hold and Comparator |
| Repeatability |
0.001 g |
| Linearity |
±0.002 g |
| Stabilization Time |
Approx. 1 second |
| Sensitivity Drift |
±2 ppm/° C |
| Display Refresh Rate |
5 times / second, 10 times / second or 20 times / second |
| Operating Temperature |
41° F to 104° F (5° C to 40° C) 85% RH or less (No condensation) |
| Pan Size |
130 mm (5.12 in) |
| Dimensions |
(W x D x H) 7.6 x 10.3 x 3.3 in (193 x 262.5 x 84.5 mm) |
| Weight |
Approx. 2.5 kg |
| Est Ship Weight |
8 lb (3.5 kg) |
| External Calibration (weight optional) |
100 g |
200 g |
300 g |
300 g |
| Power Consumption |
120/240 V AC adapter, approx. 11 VA |
| Approvals |
– |
– |
– |
e=0.01g, AM-5692 |
| Warranty |
Five-year Limited Warranty |
| Return Policy |
A&D Weighing Standard Policy – restock fee may apply |
| UNIT OF MEASURE |
| Decimal Ounce |
4.30 x 0.00005 oz |
7.76 x 0.00005 oz |
11.28 x 0.00005 oz |
|
| Pound |
0.268 x 0.000005 lb |
0.485 x 0.000005 lb |
0.705 x 0.000005 lb |
|
| Pound x Ounce |
0 lb, 4.30 oz x 0.01 oz |
0 lb, 7.76 oz x 0.01 oz |
0 lb, 11.29 oz x 0.01 oz |
|
| Troy Ounce |
3.92 x 0.00005 ozt |
7.07 x 0.00005 ozt |
10.28 x 0.00005 ozt |
|
| Carat |
610 x 0.005 ct |
1,100 x 0.005 ct |
1,600 x 0.005 ct |
|
| Pennyweight |
78.6 x 0.001 dwt |
141.7 x 0.001 dwt |
206.2 x 0.001 dwt |
|
| Grain Unit |
1,882 x 0.02 GN |
3,395 x 0.02 GN |
4,938 x 0.02 GN |
|
|
FX-1200i |
1200iNC |
FX-2000i |
FX-3000i |
| ^Weighing Chamber |
| Part # |
98024 |
— |
98025 |
98026 |
| NTEP |
| Part # |
163641 |
— |
— |
— |
| Canada |
| Part # |
— |
168076 |
— |
— |
| Capacity |
1,220 g |
1,220 g |
2,200 g |
3,200 g |
| Resolution |
0.01 g |
0.01 g |
0.01 g |
0.01 g |
| Operating Modes |
Weigh, Count, Percent, Animal Weigh, Statistical, Hold and Comparator |
| Repeatability |
0.01 g |
| Linearity |
±0.02 g |
| Stabilization Time |
Approx. 1 second |
| Sensitivity Drift |
±2 ppm/° C |
| Display Refresh Rate |
5 times / second, 10 times / second or 20 times / second |
| Operating Temperature |
41° F to 104° F (5° C to 40° C) 85% RH or less (No condensation) |
| Pan Size |
150 mm (5.90 in) |
| Dimensions |
(W x D x H) 7.6 x 10.3 x 3.3 in (193 x 262.5 x 84.5 mm) |
| Weight |
Approx. 2.5 kg |
| Est Ship Weight |
8 lb (3.5 kg) |
| External Calibration (weight optional) |
1,000 g |
1,000 g |
2,000 g |
3,000 g |
| Power Consumption |
120/240 V AC adapter, approx. 11 VA |
| Approvals |
NTEP 08-045 e=0.1g
(PN 163641 only) |
e=o.1g, AM-5692 |
|
|
| Warranty |
Five-year Limited Warranty |
| Return Policy |
A&D Weighing Standard Policy – restock fee may apply |
| UNIT OF MEASURE |
| Decimal Ounce |
4.30 x 0.00005 oz |
|
77.6 x 0.0005 oz |
112.8 x 0.0005 oz |
| Pound |
0.268 x 0.000005 lb |
|
4.85 x 0.00005 lb |
7.05 x 0.00005 lb |
| Pound x Ounce |
0 lb, 4.30 oz x 0.01 oz |
|
4 lb, 13.60 oz x 0.01 oz |
7 lb, 0.88 oz x 0.01 oz |
| Troy Ounce |
3.92 x 0.00005 ozt |
|
70.7 x 0.0005 ozt |
102.8 x 0.0005 ozt |
| Carat |
610 x 0.005 ct |
|
11,000 x 0.05 ct |
16,000 x 0.05 ct |
| Pennyweight |
78.6 x 0.001 dwt |
|
1,417 x 0.01 dwt |
2,062 x 0.01 dwt |
| Grain Unit |
1,882 x 0.02 GN |
|
33,951 x 0.2 GN |
49,383 x 0.2 GN |
Options
| 98027 |
Balance OPT,Quick USB Interface A&D FXi-02 |
|
|
| 98028 |
Balance OPT,Ethernet Interface With WinCT-Plus Software A&D FXi-08 |
|
|
| 98029 |
Balance OPT,Built In Rechargable Battery A&D FXi-09 |
|
|
| 98030 |
Balance OPT,Small Breeze Break A&D FXi-10 |
|
|
| 98031 |
Balance OPT,Large Breeze Break A&D FXi-11 |
|
|
| 151247 |
Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage |
|
|
| 196128 |
Printer,A&D AD-8127 Dot Matrix, Statistical, Includes Power Supply and Serial Cable. GLP/GMP/GCP/ISO Compliant. |
Models
| 98021 |
Balance,A&D FX-120i Toploader, 122g x 0.001g, 120V adapter |
|
|
| 98022 |
Balance,A&D FX-200i Toploader, 220g x 0.001g, 120V adapter |
|
|
| 98023 |
Balance,A&D FX-300i Toploader, 320g x 0.001g, 120V adapter |
|
|
| 168077 |
Balance,A&D FX-300iNC Toploader, 320 g x 0.001 g(d), CANADA 0.01 g(e), grams only, 120 VAC Adapter |
|
|
| 98024 |
Balance,A&D FX-1200i Toploader, 1220g x 0.01g, 120V adapter |
|
|
| 163641 |
Balance,A&D FX-1200iN Toploader, 1220 g x 0.01 g(d) NTEP 0.1 g(e), 120 V adapter |
|
|
| 168076 |
Balance,A&D FX-1200iNC Toploader, 1220 g x 0.01 g(d) CANADA 0.1 g(e), grams only, 120 VAC Adapter |
|
|
| 98025 |
Balance,A&D FX-2000i Toploader, 2200g x 0.01g, 120V adapter |
|
|
| 98026 |
Balance,A&D FX-3000i Toploader, 3200g x 0.01g, 120V adapter |
