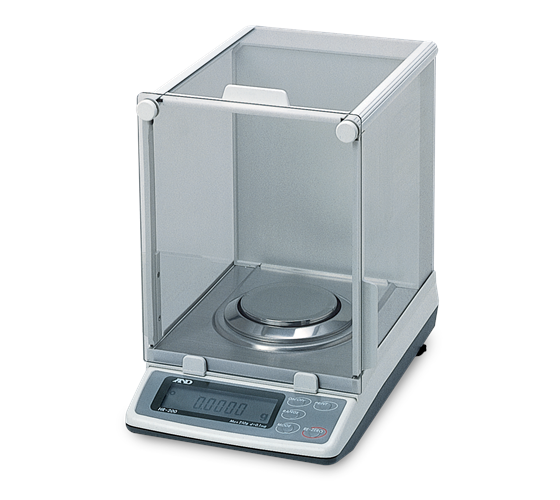

A&D Weighing HR Orion Series Analytical Balance
$0.00
Orion HR Series durable and easy-to-use balances adapt to a variety of environments and provide great flexibility and resolution.
Download product PDF
Features
- GLP/GMP/GCP/ISO compliant software outputs the calibration data and ID number of the balance for calibration confirmation to the AD-8121B printer
- System diagnostics to alert the operator of abnormal weighing conditions
- RS-232C bidirectional interface (option for HR-60, HR-120 and HR-200; standard for HR-300i and HR-202i)
- Weighing chamber
- Underhook capability for density measurement and weighing magnetic materials
- Liquid Crystal Display (LCD)
- WinCT® communication tools software
Specifications
| HR-60^ |
HR-60C^ |
HR-120^ |
HR-120C^ |
HR-200^ |
HR-200/C^ |
HR-300i^ |
HR-202i^ |
| ^ Weighing Chamber |
| Part # |
– |
– |
97637 |
97638 |
97639 |
97640 |
97642 |
97641 |
| NTEP |
| Part # |
97635 |
97636 |
– |
– |
– |
– |
– |
– |
| Capacity |
60 g |
120 g |
210 g |
320 g |
220/51 g |
| Resolution |
0.0001 g (NTEP 0.001 g) |
0.0001 g |
0.0001 g |
0.0001 g |
0.0001/ 0.00001 g |
| Operating Modes |
Percentage, Counting |
| Repeatability |
0.0001 g |
±0.0003 mg |
±0.0002/±0.00003 g |
| Linearity |
±0.0002 g |
0.0002 mg |
0.0001/0.00002 g |
| Stabilization Time |
3 seconds (typically) |
Approx. 3.5 seconds |
Approx. 3.5/8 seconds |
| Sensitivity Drift (10° C-30° C) |
±2 ppm/° C (when automatic self calibration is not used) |
| Operating Temperature |
41° F to 104° F (5° C to 40° C) 85% RH or less (no condensation) |
| Pan Size |
Ø 3.3 in (85 mm) |
Ø 3.6 in (90 mm) |
| Dimensions |
8.4 W x 12.8 D x 11.9 in H
(213 x 319 x 301 mm) |
8.54 W x 17.4 D x 12.24 in H
(217 x 442 x 316 mm) |
| Weighing Chamber |
7.1 W x 7.5 D x 7.9 in H
(180 x 192 x 200 mm) |
6.45 W x 5.84 D x 9.88 in H
(164 x 148.5 x 251 mm) |
| Weight |
Approx. 12.5 lb (5.7 kg) |
Approx. 17.6 lb (8.0 kg) |
| Ext. Cal. Mass (optional) |
50 g |
100 g |
200 g |
300 g/200 g/100 g |
200 g/100 g/50 g/20 g |
| Power |
120 V AC (AC Adapter) 50 Hz/60 Hz (110, 220, 240 V AC adapter available by special order |
| Approvals |
NTEP CC 97-084 |
| Warranty |
Five-year limited warranty |
| Return Policy |
A&D Weighing Standard Policy – restock fee may apply |
| UNIT OF MEASURE |
| Decimal Ounce |
2.1 x 0.000005 oz |
4.2 x 0.000005 oz |
7.4 x 0.000005 oz |
11.29 x 0.00001 oz |
7.76 x 0.00001/1.8 x 0.000001 oz |
| Troy Ounce |
1.9 x 0.000005 ozt |
3.8 x 0.000005 ozt |
6.7 x 0.000005 ozt |
10.3 x 0.00001 ozt |
7.07 x 0.00001/1.64 x 0.000001 ozt |
| Pennyweight |
38 x 0.0001 dwt |
77 x 0.0001 dwt |
135 x 0.0001 dwt |
199 x 0.0001 dwt |
141.5 x 0.0001/32.8 x 0.00001 dwt |
| Carat |
300 x 0.001 ct |
600 x 0.001 ct |
1050 x 0.001 ct |
1550 x 0.001 ct |
1100 x 0.001/255 x 0.0001 ct |
| Momme |
16 x 0.00005 mom |
32 x 0.00005 mom |
56 x 0.00005 mom |
82 x 0.0001 mom |
58.7 x 0.0001/13.6 x 0.00001 mom |
| Grain Unit |
925 x 0.002 GN |
1851 x 0.002 GN |
3240 x 0.002 GN |
4784 x 0.002 GN |
3395 x 0.002/787 x 0.0002 GN |
| Tola |
5 x 0.00001 to |
10 x 0.00001 to |
18 x 0.00001 to |
26 x 0.00001 to |
18.8 x 0.00001/4.37 x 0.000001 to |
| Tael |
1.5 x 0.000005 TL |
3.1 x 0.000005 TL |
5.5 x 0.000005 TL |
8.2 x 0.00001 TL |
5.87 x 0.00001/1.36 x 0.000001 TL |
Options
| 97605 |
Balance OPT,Anti Theft Device A&D AD-100-2 |
|
|
| 97606 |
Balance OPT,Density Determination Kit A&D AD-1653 |
|
|
| 97607 |
Balance OPT,Battery Pack Rechargeable A&D AD-1682 |
|
|
| 97608 |
Balance OPT,Universal Remote Display A&D AD-8920 |
|
|
| 97610 |
Balance OPT,Static Eliminator A&D AD-1683 |
|
|
| 97609 |
Balance OPT,Remote Controller A&D AD-8922 |
|
|
| 151247 |
Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage |
|
|
| 196128 |
Printer,A&D AD-8127 Dot Matrix, Statistical, Includes Power Supply and Serial Cable. GLP/GMP/GCP/ISO Compliant. |
Models
| 97641 |
Balance,A&D, HR-202i Orion Series, Semi-micro, 51g x 0.01mg/220g x 0.1mg, RS-232C, 120-230V auto-ranging adapter |
|
|
|
| 97642 |
Balance,A&D HR-300i Orion Series, Analytical, 320g x 0.1mg, RS-232C, 120-230V auto- ranging adapter |
