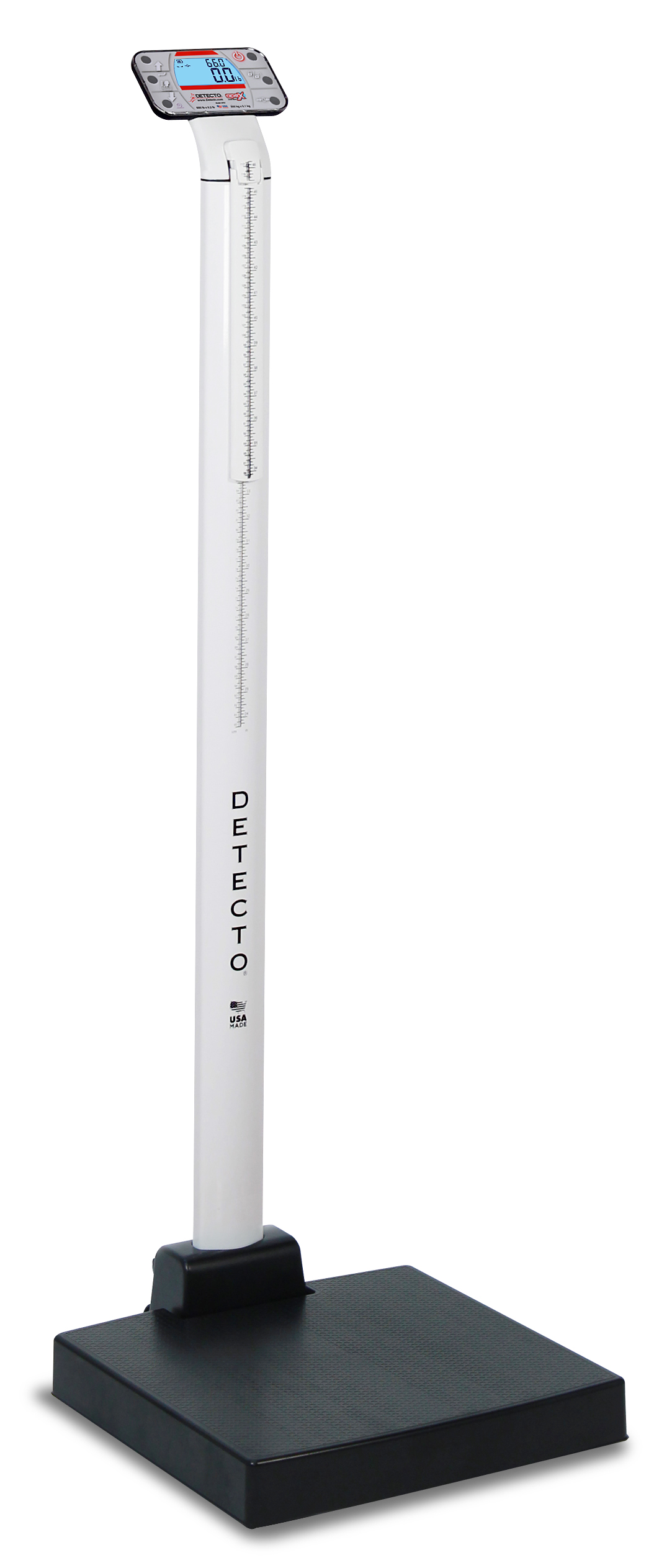

apex Digital Scales with Mechanical Height Rods

$0.00

DETECTO?s apex eye-level digital physician scales feature inline mechanical height rods and an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H. The apex scale features 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, 0.75-inch-high clinical-blue LCD weight readouts, BMI calculation, AC or battery power (AC adapter included on some models), 2 RS232 serial ports and 1 micro USB-B port, HL7 IEEE 11073 compliance, Wi-Fi and Welch Allyn connectivity (available on some models), dual wheels for transport, sturdy column construction, integral bubble level, and they assemble quickly right out of the box in just a few easy seconds (no tools required).

Download product PDF
Categories: ,

Features

  • 0.75-Inch-High LCD Weight Readouts
  • 10 Different apex Models Available
  • 2 RS232 Serial Ports and 1 Micro USB-B Port
  • 6 Easy-to-Use Buttons
  • 600 lb x 0.2 lb / 300 kg x 0.1 kg Capacity
  • Assembles in Seconds Without Any Tools
  • BMI Calculation

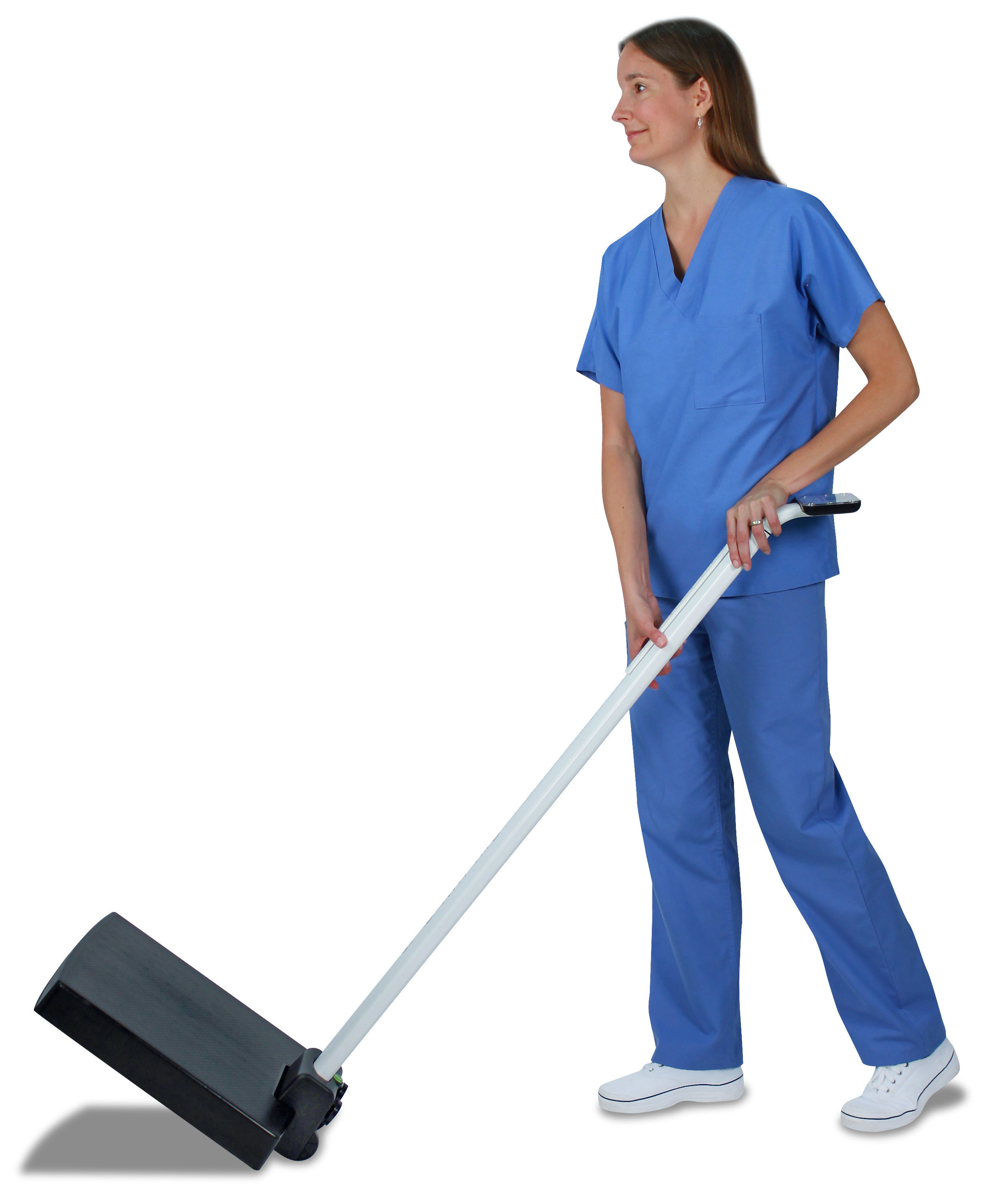

  • Dual Integral Wheels
  • HL7 IEEE 11073 Compliant (standard)
  • Inline Mechanical Height Rod
  • Platform Size: 17 in W x 17 in D x 2.75 in H
  • Wi-Fi and Welch Allyn Connectivity Available

Specifications

Capacity: 600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up)
Platform Size: 17 in W x 17 in D x 2.75 in H / 43.2 cm W x 43.2 cm D x 7 cm H
Weighing/Height Units: Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)

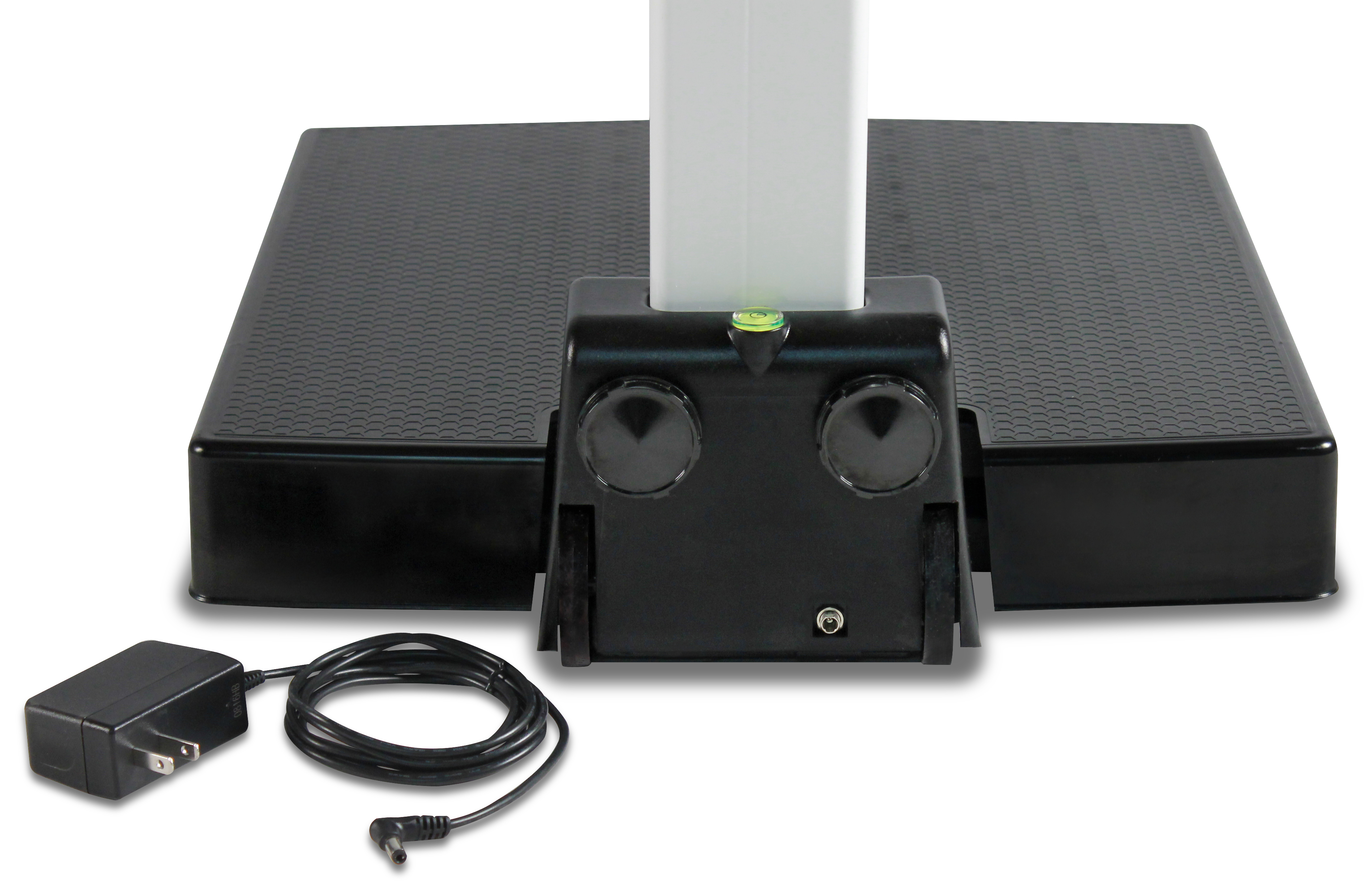

Power: 12 AA batteries (not included) or AC adapter (included with some models)
Height Rod: Mechanical inline height rod
Height Rod Measures: 24? (2?) – 86? (7?2?) x 0.125 in / 60 cm – 218 cm x 0.1 cm
Overall Dimensions: 17 in W x 19.5 in D x 53.3 in H / 43 cm W x 49.5 cm D x 135.3 cm H
Ports: 2 RS232 serial ports and 1 micro USB-B port
Device Connectivity: HL7 IEEE 11073 compliant (standard); Welch Allyn device connectivity available on some models (CVSM, CSM, and LXI); Wi-Fi Ethernet models also available for wireless EMR/EHR
Net Weight: 31 lb / 14 kg
Shipping Weight: 40 lb / 18 kg
Shipping Dimensions: 58 in x 20 in x 6 in / 147 cm x 51 cm x 15 cm
Keypad: 6 buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow)
Country of Origin: USA

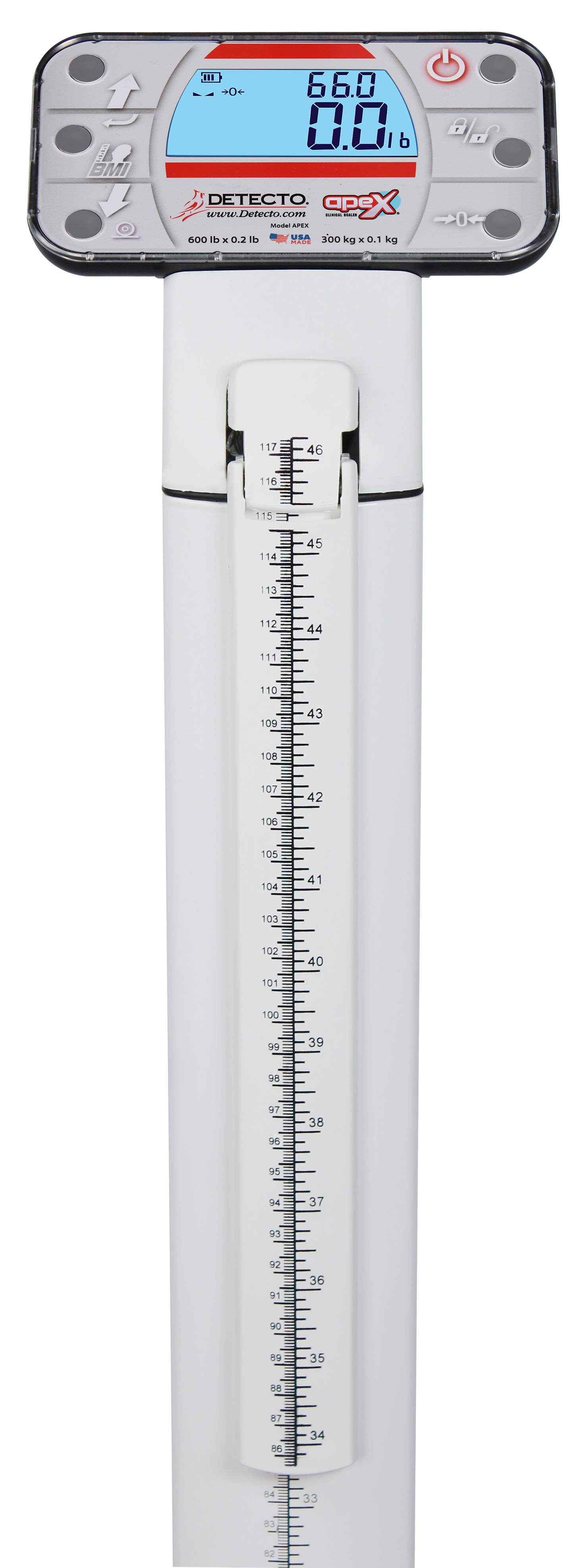

Display Type: Dual-row, seven-segment, clinical-blue LCD
Number of Characters: Weight: 5 digit, 0.75 in (19 mm) high / Height/BMI: 4 digit, 0.4 in (10 mm) high
Operating Environment: Operated Temperature Range: 14 to 104 ?F (-10 to +40 ?C) / Humidity: 0 to 90% non-condensing
Digital Filtering: StableSENSE Adjustable Filtering
Construction: Column ? aluminum white powder coated; base – steel; indicator enclosure – ABS

Models

APEX apex Digital Clinical Scale, Mechanical Height Rod, 600 lb x 0.2 lb / 300 kg x 0.1 kg
APEX-AC apex Digital Clinical Scale, Includes Non-Medical-Grade AC Adapter, Mechanical Height Rod
APEX-WI-AC apex Digital Clinical Scale, Includes Non-Medical-Grade AC Adapter, Wi-Fi, Mechanical Height Rod
APEX-UWA-AC apex Digital Clinical Scale, Welch Allyn CVSM/CSM Connectivity, AC Adapter, Mechanical Height Rod
APEX-LXI-AC apex Digital Clinical Scale, Welch Allyn LXI Connectivity, AC Adapter, Mechanical Height Rod
