APEX-RI Remote Indicator Portable Scale

$0.00

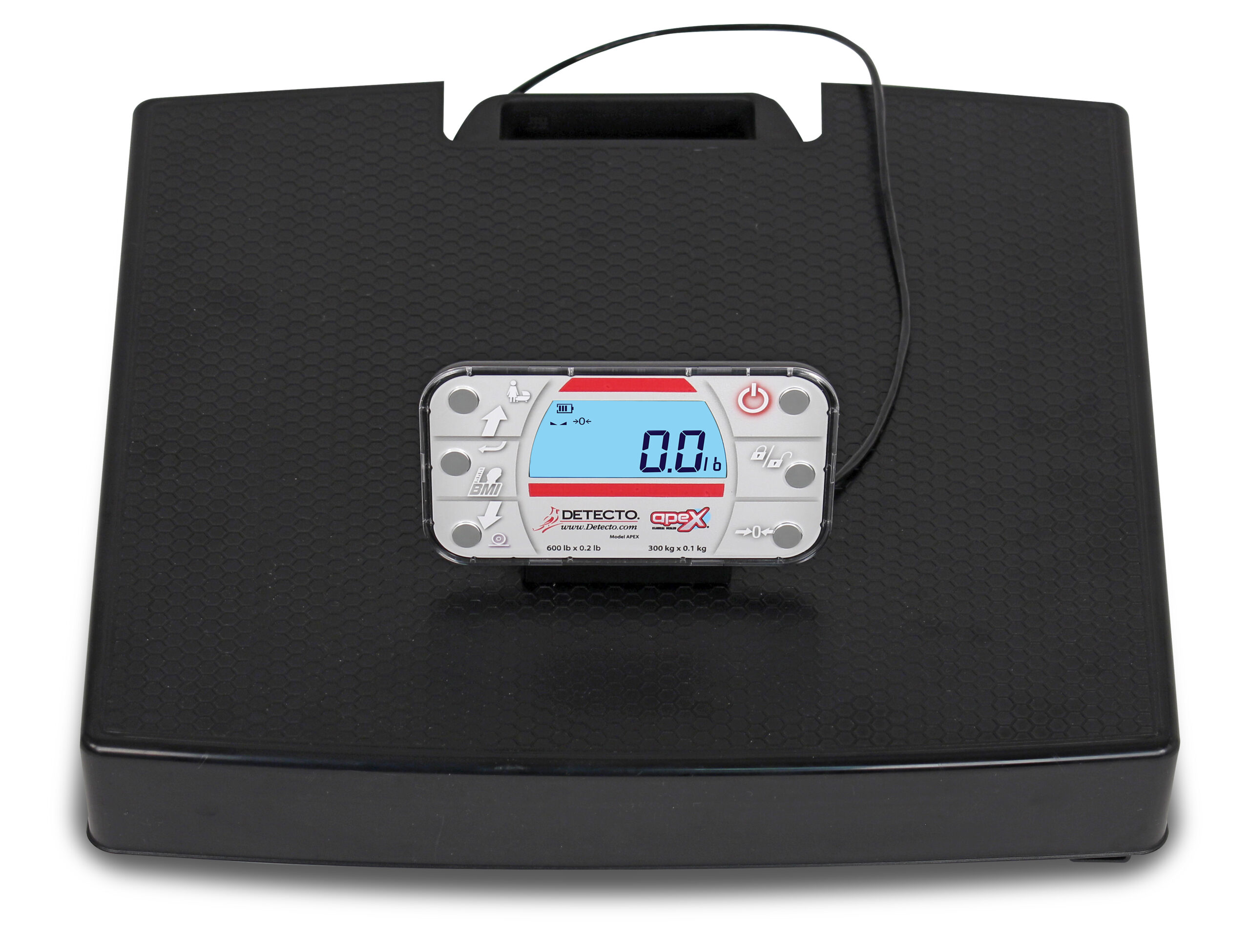

DETECTO’s APEX-RI series portable scales with remote indicators feature an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H, high 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, 0.75-inch-high clinical-blue LCD weight readouts, units locking into kilograms or pounds, BMI calculation, 6 ft/1.8 m cable from the scale base to indicator, integral carrying handle, textured platform surface, AC or 12 AA battery power (AC adapter included on some models), 1 RS232 serial port, 1 micro USB-B port, and HL7 IEEE 11073 compliance. They are ready to use right out of the box with no assembly needed. Wi-Fi/Bluetooth models are available (select -C models) with the protocol available upon request.

Download product PDF
Category:

Features

  • 0.75-Inch-High LCD Weight Readouts
  • Units Locking into Pounds or Kilograms
  • Wi-Fi / Bluetooth Models Available for Wireless EMR/EHR
  • Mother / Baby Function Factors the Weight of Infants and Toddlers Held by an Adult
  • 12 AA Batteries (not included) or AC Adapter (included on some models)
  • 1 RS232 Serial Port and 1 Micro USB-B Port
  • 6 Easy-to-Use Buttons
  • 6 ft/2 m Cable from Scale Base to Indicator
  • 600 lb x 0.2 lb / 300 kg x 0.1 kg Capacity
  • Bluetooth (BLE) / Wi-Fi Available (models -C)
  • BMI Calculation
  • HL7 IEEE 11073 Compliant (standard)
  • International Power Adapter (included on -AC models)
  • Lift-Off Platform Cover
  • Platform Size: 17 in W x 17 in D x 2.75 in H
  • Portable With Integral Carrying Handle
  • Smart Phone Style High-Tech Weight Indicator
  • Textured Platform Surface for Weighing Traction and User Safety

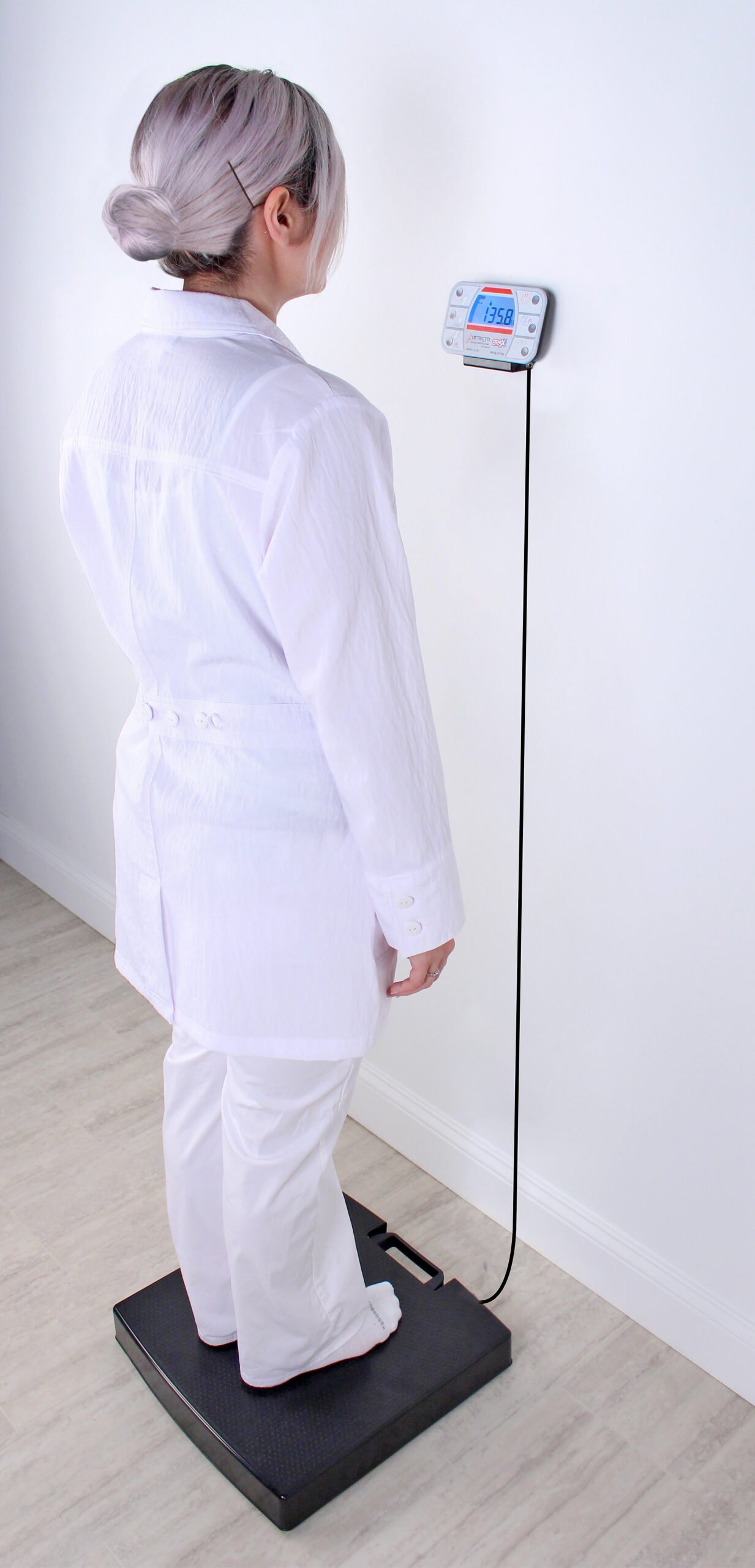

  • Wall-Mount or Desktop Mounting Bracket Included

Specifications

Models: APEX-RI, APEX-RI-AC (Includes AC Adapter), APEX-RI-C (Includes Bluetooth/Wi-Fi), and APEX-RI-C-AC (Includes Bluetooth/Wi-Fi and AC Adapter)
Capacity: 600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up)
Platform Size: 17 in W x 17 in D x 2.75 in H / 43 cm W x 43 cm D x 7 cm H
Weighing/Height Units: Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)
Power: 12 AA cell Alkaline, Ni-Cad or NiMH batteries (not included) or optional 100-240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed AC power adapter (DETECTO part number 6800-1047 with multi-pin-input, snap-in choices for US, UK, EU, Australia, and Japan)
Ports: 1 RS232 serial port and 1 micro USB-B port
Device Connectivity: HL7 IEEE 11073 compliant (standard); Wi-Fi and Bluetooth BLE models also available for wireless mobile apps (protocol available upon request)
Keypad: Mechanical switch type with 6 buttons (Power, Lock/Release, Zero, BMI/Enter, Up Arrow, Down Arrow)
Cable Length: 6 ft / 1.8 m (from scale base to indicator)
Display Type: Dual-row, seven-segment, clinical-blue LCD
Number of Characters: Weight: 5 digit, 0.75 in (19 mm) high / Height/BMI: 4 digit, 0.4 in (10 mm) high
Operating Environment: Operating Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% non-condensing
Digital Filtering:
 StableSENSE® adjustable filtering
Country of Origin: USA
Net Weight: 25 lb / 11 kg
Shipping Weight: 28 lb / 13 kg
UPC Code (APEX-RI): 809161304107
UPC Code (APEX-RI-AC): 809161304206
UPC Code (APEX-RI-C): 809161322408
UPC Code (APEX-RI-C-AC): 809161322507
Brand Name: DETECTO apex® series
No Assembly Required: Ready to use right out of the box
Indicator Bracket: Includes versatile wall-mount or desktop mounting bracket on back of weight indicator
Shipping Dimensions: 19 in x 18 in x 6 in / 48 cm x 46 cm x 15 cm

Options

6800-1047 AC ADAPTER 100-240VAC/12VDC @ 1 AMP MULTI PIN INPUT Call For Pricing
GBSS18-WM Grab Bar, Wall Mount, 18″, Stainless Steel Call For Pricing

Models

APEX-RI APEX Portable Scale, Remote Indicator, Integral Carrying Handle, 600 lb x 0.2 lb / 300 kg x 0.1 kg Call For Pricing
APEX-RI-AC APEX Portable Scale, Remote Indicator, AC Adapter Included, 600 lb x 0.2 lb / 300 kg x 0.1 kg Call For Pricing
APEX-RI-C APEX Portable Scale, Remote Indicator, Carrying Handle, 600 lb x 0.2 lb / 300 kg x 0.1 kg, BT / WiFi Call For Pricing
APEX-RI-C-AC APEX Portable Scale, Remote Indicator, Handle, 600lb x 0.2lb / 300kg x 0.1kg, BT/WiFi, AC Adapter Call For Pricing
