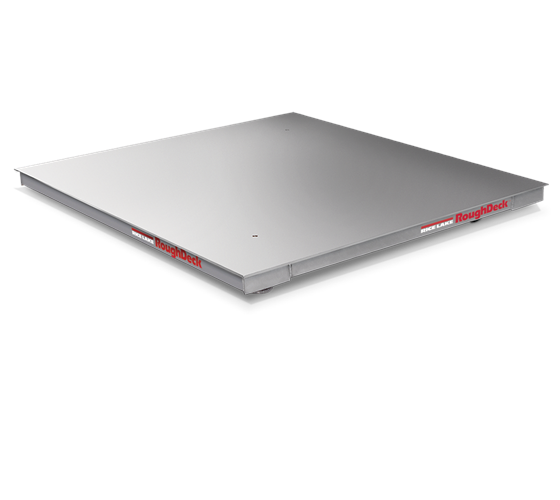

?Rugged non-corrosive design
? 304 stainless steel construction
? Rigid stainless steel channel frame
? Four stainless steel NTEP Certified shear-beam load cells
? 20ft of SURVIVOR EL147HE hostile environment load cell cable
? Side access junction box
? TuffSeal JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
? Smooth stainless steel deck
? Four adjustable stainless steel SUREFOOT? support feet
Specifications
End Load Capacity:
200% full scale at 1,000 lb
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb Cable Length:
20 ft (6.1m) (for connecting junction box to indicator) Threaded Eyebolt:
Hole (1/2-20NF) located in center of deck
for easy lifting Warranty:
RoughDeck SS weldment five years, load cells two
years, all other components one year Approvals:
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d
AM-530
Options
28740
Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 320IS, 320IS W/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus, 480/480 Plus, 482/482 Plus
18778
Mounting Plate Set, Roughdeck 1,000-10,000 lb SST
Consult
Stainless steel diamond treadplate safety deck
NA
Access ramps, pit frames, bumper guards and portability frames available
NA
Four drilled deck holes for scale height adjustment
NA
Top access junction box
NA
Stainless steel deck with RLH35 welded-seal IP67 stainless steel FM approved load cells and hardware
NA
Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel cFMusus approved load cells and hardware
NA
Forklift channel option (up to 5 ft x 7 ft 10,000 lb, accommodates fork tines no larger than (WxH) 5 in x 2 in, fork entry is an opposite side of junction box location)
Models
191958
Scale,Floor Roughdeck 2.5×2.5HCSS-1,000KG 2-1/2ftx2-1/2ftx3-1/2 1,000 KG 20ft SST
