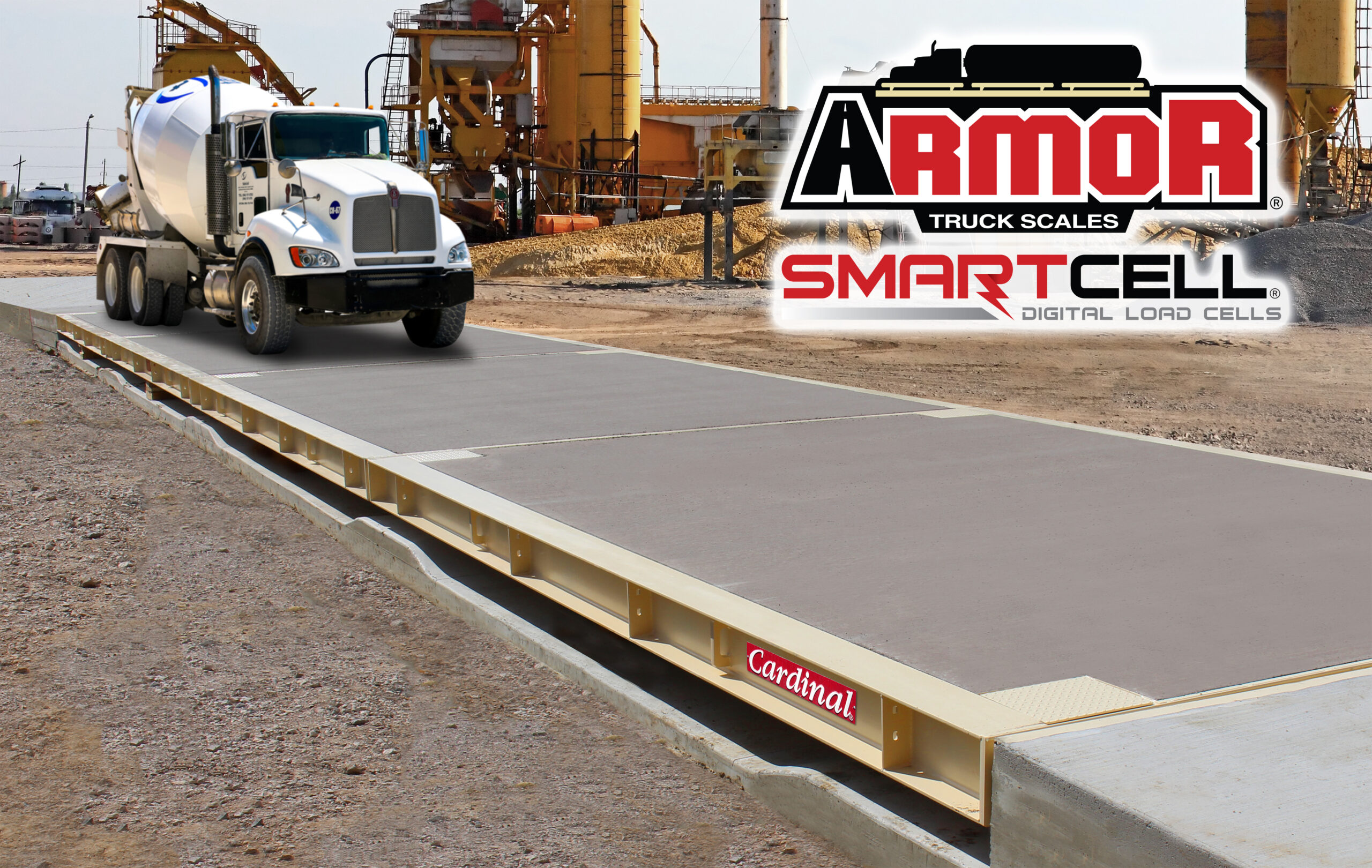

ARMOR Concrete Deck Truck Scales with Digital SmartCells

$0.00

Cardinal Scale’s concrete deck ARMOR® series truck scales with digital SmartCell® load cells offer unmatched performance built to last a lifetime of heavy-duty weighing use. Every facet of the digital truck scale weighbridge and electronics have been specifically built for long-lasting endurance, minimal upkeep, and IoT monitoring convenience. ARMOR® truck scales feature pour-in-place concrete deck weighbridges, 135-ton capacity, 50-ton CLC, no moving parts below the scale deck including the load cells, SmartCell® stainless steel waterproof digital load cells, baked-on tan powder coat paint, and IoT-enabled iSite remote monitoring.

Download product PDF
Category:

Features

  • 8-Inch-High Clearance Below Load Cells Avoids Debris Accumulation Affecting Performance
  • axis Frictionless Centering System Load Cell Stands
  • Heavyweight 50-Ton CLC
  • IoT-enabled iSite Remote Monitoring Software

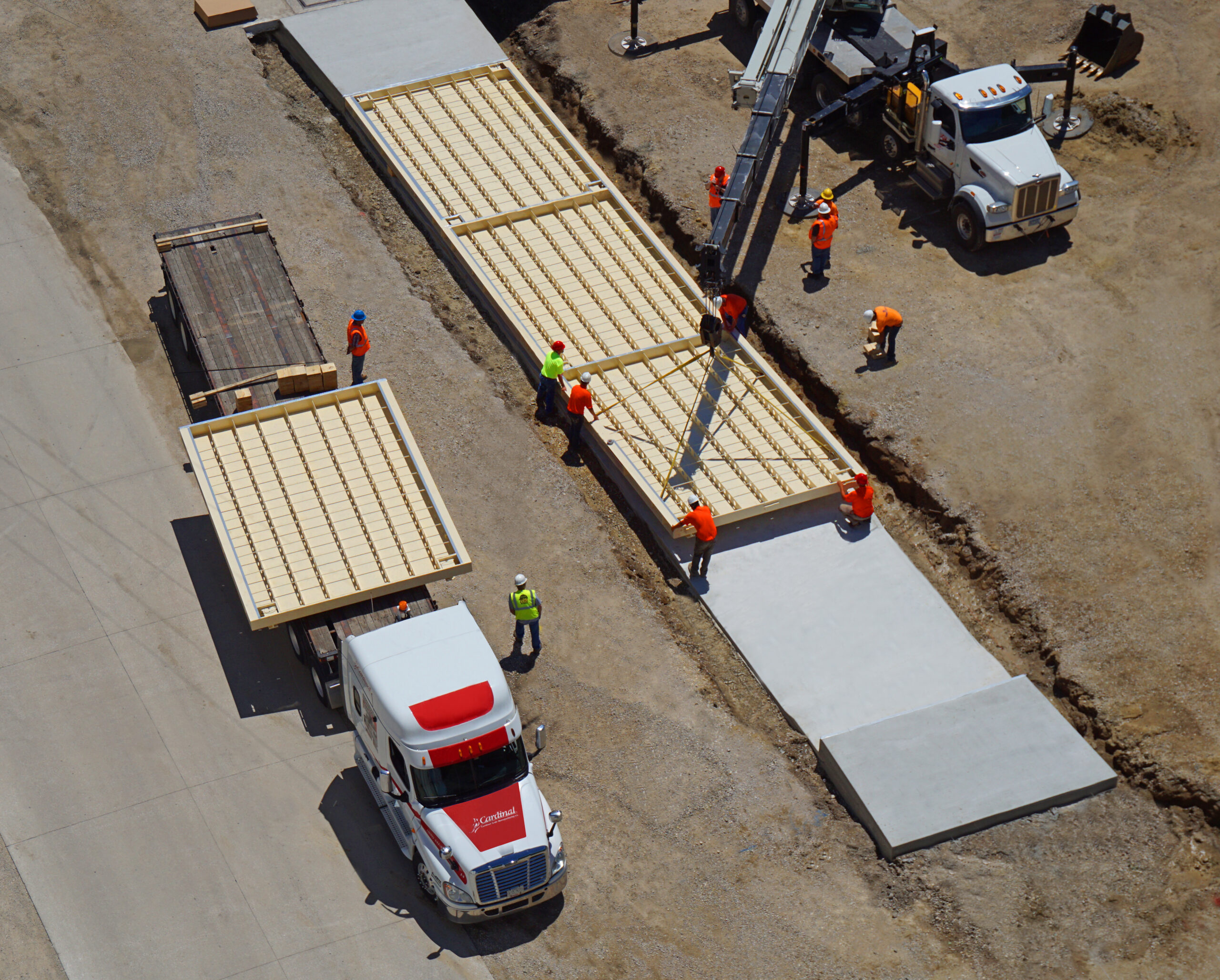

  • Load Cell Stands Pre-Installed for Lightning-Fast Installation
  • Long-Lasting Baked-on Tan Powder Coat Paint
  • No Moving Parts Below the Scale Deck (Including the Load Cells)
  • NTEP Legal for Trade

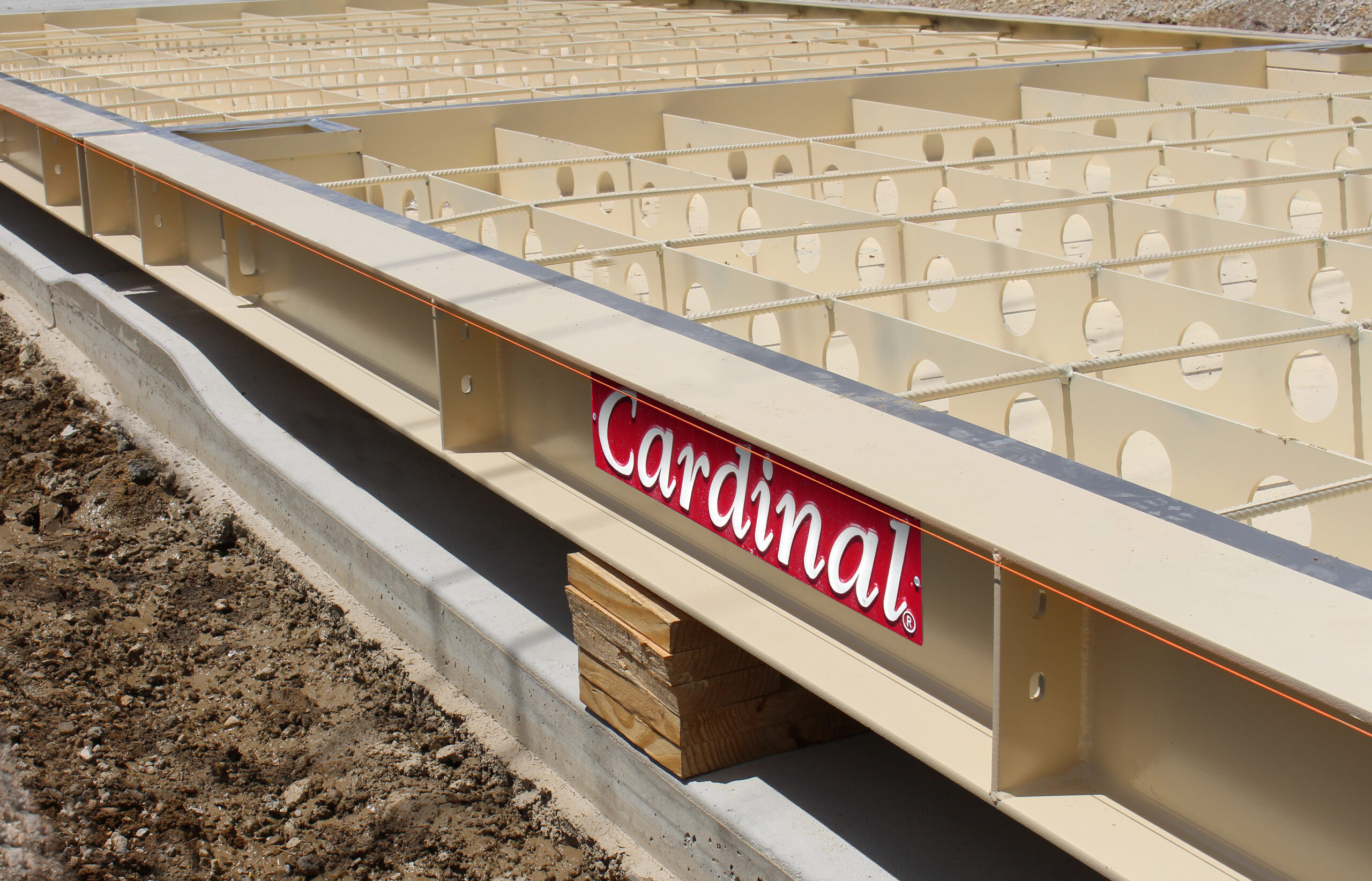

  • Pour-in-Place Concrete Deck Weighbridges
  • SmartCell Stainless Steel Waterproof Digital Load Cells
  • Standard Platform Sizes From 12 to 160 ft Long (10 to 14 ft Wide)

Specifications

Concentrated Load Capacity: 50 tons
Overall Capacities: From 50 tons up to 135 tons standard
Platform Sizes: From 12 ft to 160 ft long standard and 10 ft to 14 ft wide standard
Load Cell: From 12 ft to 160 ft long standard and 10 ft to 14 ft wide standard
Load Cell Cables: Metal braided and run in continuous galvanized steel conduit
Load Cell Type: Digital double-ended shear beam strain gauge design with 75,000 pound capacity
Overall Scale Height: 15.5 inch high (custom scales available as low as 13.5 inch high)
Clearance Height From Top of Pier to Lowest Part of Load Cell: 8inch
Paint: Baked-on, heavy-duty polyester anti-corrosion tan powder paint
Load Cell Stands: axis® frictionless centering system fabricated from one-inch-thick steel to minimize rust and corrosion damage
Indicator: Navigator model 225D digital weight indicator
NTEP Approval: 17-047
Measurement Canada Approval: AM-4890
Distance from Top of Pier to Lowest Part of Weighbridge: 5 inch
Network Connections: Direct Ethernet (standard), Wi-Fi (optional), or cellular modem (optional)
IoT Remote Monitoring Software: Cloud-based iSite remote monitoring with e-mail and/or text alerts
Load Cell Exclusive Protection: All SmartCells are completely encapsulated and filled with a proprietary potting compound to fill all internal voids and prevent any potential for moisture entering the load cell
Warranty: Standard 5-year bridge-and-below warranty
Country of Origin: USA
Optional Guide Rails: Optional 4-inch-diameter, bolt-on pipe guide rails 8.5-inch above the deck surface

Options

0330-2732-08 Ground Wire, 10GA, 100′ long Call For Pricing
0330-2732-18 Ground Wire, 10GA, 250′ long Call For Pricing
0330-2732-28 Ground Wire, 10GA, 500′ long Call For Pricing
8581-0091-08 Digital Load Cell Homerun Cable, 650 ft Long, Not Terminated, 18AWG Call For Pricing
8581-0091-18 Digital Load Cell Homerun Cable, 300 ft Long, Not Terminated, 18AWG Call For Pricing
8581-0091-28 Digital Load Cell Homerun Cable, 100 ft Long, Not Terminated, 18AWG Call For Pricing
MB-AC Digital Media Box with AC power supply Call For Pricing
MB-G Digital Media Box for Glass Fiber Optic Cables with AC Power Supply Call For Pricing
POWER-DLC 24VDC Power Supply for Digital Load Cell Systems, Plastic Enclosure, Desktop Mount Call For Pricing
SNAP-DLC SnapStream Wireless Interface from Digital Truck Scale to Indicator Call For Pricing
SR-1010300 Bolt-on Side Rails for 1010300 Call For Pricing
SR-1010301 Bolt-on Side Rails for 1010301 Call For Pricing
SR-1010302 Bolt-on Side Rails for 1010302 Call For Pricing
SR-1010303 SIDE RAIL PACKAGE, 1010303 Call For Pricing
SR-1010304 SIDE RAIL PACKAGE, 1010304 Call For Pricing
SR-1010305 Bolt-on Side Rails for 1010305 Call For Pricing
SR-1010306 SIDE RAIL PACKAGE, 1010306 Call For Pricing
SR-1010307 Bolt-on Side Rails for 1010307 Call For Pricing
SR-1010308 SIDE RAIL PACKAGE, 1010308 Call For Pricing
SR-1010309 Bolt-on Side Rails for 1010309 Call For Pricing
SR-1010310 Bolt-on Side Rails for 1010310 Call For Pricing
SR-1010311 Bolt-on Side Rails for 1010311 Call For Pricing
SR-1010312 Bolt-on Side Rails for 1010312 Call For Pricing
SR-1010313 Bolt-on Side Rails for 1010313 Call For Pricing
SR-1010314 Bolt-on Side Rails for 1010314 Call For Pricing
SR-1010315 Bolt-on Side Rails for 1010315 Call For Pricing
SR-1010316 Bolt-on Side Rails for 1010316 Call For Pricing
SR-1010317 Bolt-on Side Rails for 1010317 Call For Pricing
SR-1010318 Bolt-on Side Rails for 1010318 Call For Pricing
SR-1010319 Bolt-on Side Rails for 1010319 Call For Pricing
SR-1010320 SIDE RAIL PACKAGE, 1010320 Call For Pricing
SR-1010321 Bolt-on Side Rails for 1010321 Call For Pricing
SR-1010322 Bolt-on Side Rails for 1010322 Call For Pricing
SR-1010323 Bolt-on Side Rails for 1010323 Call For Pricing
SR-1010324 Bolt-on Side Rails for 1010324 Call For Pricing
SR-1010325 SIDE RAIL PACKAGE, 1010325 Call For Pricing
SR-1010326 SIDE RAIL PACKAGE, 1010326 Call For Pricing
SR-1010327 SIDE RAIL PACKAGE, 1010327 Call For Pricing
SR-1010328 SIDE RAIL PACKAGE, 1010328 Call For Pricing
SR-1010329 SIDE RAIL PACKAGE, 1010329 Call For Pricing
SR-1010330 Bolt-on Side Rails for 1010330 Call For Pricing
SR-1010331 SIDE RAIL PACKAGE, 1010331 Call For Pricing
SR-1010332 Bolt-on Side Rails for 1010332 Call For Pricing
SR-1010333 Bolt-on Side Rails for 1010333 Call For Pricing
SR-1010334 Bolt-on Side Rails for 1010334 Call For Pricing
SR-1010335 Bolt-on Side Rails for 1010335 Call For Pricing
SR-1010336 Bolt-on Side Rails for 1010336 Call For Pricing
SR-1010337 Bolt-on Side Rails for 1010337 Call For Pricing
SR-1010338 Bolt-on Side Rails for 1010338 Call For Pricing
SR-1010339 Bolt-on Side Rails for 1010339 Call For Pricing
SR-1010340 Bolt-on Side Rails for 1010340 Call For Pricing
SR-1010341 Bolt-on Side Rails for 1010341 Call For Pricing
SR-1010342 Bolt-on Side Rails for 1010342 Call For Pricing
SR-1010343 Bolt-on Side Rails for 1010343 Call For Pricing
SR-1010344 Side Rail Package for 1010344 Call For Pricing
SR-1010345 Bolt-on Side Rails for 1010345 Call For Pricing
SR-1010346 Bolt-on Side Rails for 1010346 Call For Pricing
SR-1010347 Bolt-on Side Rails for 1010347 Call For Pricing
SR-1010348 SIDE RAIL PACKAGE, 1010348 Call For Pricing
SR-1010349 Bolt-on Side Rails for 1010349 Call For Pricing
SR-1010350 Bolt-on Side Rails for 1010350 Call For Pricing
SR-1010351 Bolt-on Side Rails for 1010351 Call For Pricing
SR-1010352 Bolt-on Side Rails for 1010352 Call For Pricing
SR-1010353 Bolt-on Side Rails for 1010353 Call For Pricing
SR-1010354 Bolt-on Side Rails for 1010354 Call For Pricing
SR-1010355 Bolt-on Side Rails for 1010355 Call For Pricing
SR-1010356 Bolt-on Side Rails for 1010356 Call For Pricing
SR-1010357 Bolt-on Side Rails for 1010357 Call For Pricing
SR-1010358 Bolt-on Side Rails for 1010358 Call For Pricing
SR-1010359 Bolt-on Side Rails for 1010359 Call For Pricing
SR-1010360 Bolt-on Side Rails for 1010360 Call For Pricing
SR-1010361 Bolt-on Side Rails for 1010361 Call For Pricing
SR-1010362 Bolt-on Side Rails for 1010362 Call For Pricing
SR-1010363 Bolt-on Side Rails for 1010363 Call For Pricing
SR-1010364 Bolt-on Side Rails for 1010364 Call For Pricing
SR-1010365 Bolt-on Side Rails for 1010365 Call For Pricing
SR-1010366 Bolt-on Side Rails for 1010366 Call For Pricing
SR-1010367 Bolt-on Side Rails for 1010367 Call For Pricing
SR-1010368 Bolt-on Side Rails for 1010368 Call For Pricing
SR-1010369 Bolt-on Side Rails for 1010369 Call For Pricing
SR-1010370 Bolt-on Side Rails for 1010370 Call For Pricing
SR-1010371 Bolt-on Side Rails for 1010371 Call For Pricing
SR-1010372 Bolt-on Side Rails for 1010372 Call For Pricing
SR-1010373 Bolt-on Side Rails for 1010373 Call For Pricing
SR-1010374 Bolt-on Side Rails for 1010374 Call For Pricing
SR-1010375 Bolt-on Side Rails for 1010375 Call For Pricing
SR-1010850 BOLT-ON SIDE RAILS FOR 1010850 Call For Pricing
SR-1010851 Bolt-on Side Rails for 1010851 Call For Pricing
SR-1010852 Bolt-on Side Rails for 1010852 Call For Pricing

Models

1010300 Truck Scale, Armor, 8″ Concrete Deck, 12′ X 10′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010301 Truck Scale, Armor, 8″ Concrete Deck, 20′ X 10′, 50 ton CLC, 40 Ton Capacity, SCBD Smart Cells Call For Pricing
1010302 Truck Scale, Armor, 10″ Concrete Deck, 25′ X 10′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010303 Truck Scale, Armor, 8″ Concrete Deck, 30′ X 10′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010304 Truck Scale, Armor, 8″ Concrete Deck, 40′ X 10′, 50 ton CLC, 70 Ton Capacity, SCBD Smart Cells Call For Pricing
1010305 Truck Scale, Armor, 10″ Concrete Deck, 47′ X 10′, 50 ton CLC, 70 Ton Capacity, SCBD Smart Cells Call For Pricing
1010306 Truck Scale, Armor, 10″ Concrete Deck, 50′ X 10′, 50 ton CLC, 80 Ton Capacity, SCBD Smart Cells Call For Pricing
1010307 Truck Scale, Armor, 8″ Concrete Deck, 60′ X 10′, 50 ton CLC, 110 Ton Capacity, SCBD Smart Cells Call For Pricing
1010308 Truck Scale, Armor, 8″ Concrete Deck, 70′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Load Cell Call For Pricing
1010309 Truck Scale, Armor, 10″ Concrete Deck, 75′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010310 Truck Scale, Armor, 8″ Concrete Deck, 80′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010311 Truck Scale, Armor, 8″ Concrete Deck, 90′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010312 Truck Scale, Armor, 10″ Concrete Deck, 100′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010313 Truck Scale, Armor, 8″ Concrete Deck, 110′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010314 Truck Scale, Armor, 8″ Concrete Deck, 117′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010315 Truck Scale, Armor, 10″ Concrete Deck, 120′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010316 Truck Scale, Armor, 10″ Concrete Deck, 125′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010317 Truck Scale, Armor, 8″ Concrete Deck, 140′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010318 Truck Scale, Armor, 8″ Concrete Deck, 160′ X 10′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010319 Truck Scale, Armor, 8″ Concrete Deck, 12′ X 11′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010320 Truck Scale, Armor, 8″ Concrete Deck, 20′ X 11′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010321 Truck Scale, Armor, 10″ Concrete Deck, 25′ X 11′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010322 Truck Scale, Armor, 8″ Concrete Deck, 30′ X 11′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010323 Truck Scale, Armor, 8″ Concrete Deck, 40′ X 11′, 50 ton CLC, 70 Ton Capacity, SCBD Smart Cells Call For Pricing
1010324 Truck Scale, Armor, 10″ Concrete Deck, 47′ X 11′, 50 ton CLC, 70 Ton Capacity, SCBD Smart Cells Call For Pricing
1010325 Truck Scale, Armor, 10″ Concrete Deck, 50′ X 11′, 50 ton CLC, 80 Ton Capacity, SCBD Smart Cells Call For Pricing
1010326 Truck Scale, Armor, 8″ Concrete Deck, 60′ X 11′, 50 ton CLC, 110 Ton Capacity, SCBD Smart Cells Call For Pricing
1010327 Truck Scale, Armor, 8″ Concrete Deck, 70′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010328 Truck Scale, Armor, 10″ Concrete Deck, 75′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010329 Truck Scale, Armor, 8″ Concrete Deck, 80′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010330 Truck Scale, Armor, 8″ Concrete Deck, 90′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010331 Truck Scale, Armor, 10″ Concrete Deck, 100′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010332 Truck Scale, Armor, 8″ Concrete Deck, 110′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010333 Truck Scale, Armor, 8″ Concrete Deck, 117′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010334 Truck Scale, Armor, 10″ Concrete Deck, 120′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010335 Truck Scale, Armor, 10″ Concrete Deck, 125′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010336 Truck Scale, Armor, 8″ Concrete Deck, 140′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010337 Truck Scale, Armor, 8″ Concrete Deck, 160′ X 11′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010338 Truck Scale, Armor, 8″ Concrete Deck, 12′ X 12′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010339 Truck Scale, Armor, 8″ Concrete Deck, 20′ X 12′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010340 Truck Scale, Armor, 10″ Concrete Deck, 25′ X 12′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010341 Truck Scale, Armor, 8″ Concrete Deck, 30′ X 12′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010342 Truck Scale, Armor, 8″ Concrete Deck, 40′ X 12′, 50 ton CLC, 70 Ton Capacity, SCBD Smart Cells Call For Pricing
1010343 Truck Scale, Armor, 10″ Concrete Deck, 47′ X 12′, 50 ton CLC, 70 Ton Capacity, SCBD Smart Cells Call For Pricing
1010344 Truck Scale, Armor, 10″ Concrete Deck, 50′ X 12′, 50 ton CLC, 80 Ton Capacity, SCBD Smart Cells Call For Pricing
1010345 Truck Scale, Armor, 8″ Concrete Deck, 60′ X 12′, 50 ton CLC, 110 Ton Capacity, SCBD Smart Cells Call For Pricing
1010346 Truck Scale, Armor, 8″ Concrete Deck, 70′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010347 Truck Scale, Armor, 10″ Concrete Deck, 75′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010348 Truck Scale, Armor, 8″ Concrete Deck, 80′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010349 Truck Scale, Armor, 8″ Concrete Deck, 90′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010350 Truck Scale, Armor, 10″ Concrete Deck, 100′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010351 Truck Scale, Armor, 8″ Concrete Deck, 110′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010352 Truck Scale, Armor, 8″ Concrete Deck, 117′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010353 Truck Scale, Armor, 10″ Concrete Deck, 120′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010354 Truck Scale, Armor, 10″ Concrete Deck, 125′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010355 Truck Scale, Armor, 8″ Concrete Deck, 140′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010356 Truck Scale, Armor, 8″ Concrete Deck, 160′ X 12′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010357 Truck Scale, Armor, 10″ Concrete Deck, 12′ X 14′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010358 Truck Scale, Armor, 10″ Concrete Deck, 20′ X 14′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010359 Truck Scale, Armor, 10″ Concrete Deck, 25′ X 14′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010360 Truck Scale, Armor, 10″ Concrete Deck, 30′ X 14′, 50 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1010361 Truck Scale, Armor, 10″ Concrete Deck, 40′ X 14′, 50 ton CLC, 70 Ton Capacity, SCBD Smart Cells Call For Pricing
1010362 Truck Scale, Armor, 10″ Concrete Deck, 47′ X 14′, 50 ton CLC, 70 Ton Capacity, SCBD Smart Cells Call For Pricing
1010363 Truck Scale, Armor, 10″ Concrete Deck, 50′ X 14′, 50 ton CLC, 80 Ton Capacity, SCBD Smart Cells Call For Pricing
1010364 Truck Scale, Armor, 10″ Concrete Deck, 60′ X 14′, 50 ton CLC, 110 Ton Capacity, SCBD Smart Cells Call For Pricing
1010365 Truck Scale, Armor, 10″ Concrete Deck, 70′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010366 Truck Scale, Armor, 10″ Concrete Deck, 75′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010367 Truck Scale, Armor, 10″ Concrete Deck, 80′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010368 Truck Scale, Armor, 10″ Concrete Deck, 90′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010369 Truck Scale, Armor, 10″ Concrete Deck, 100′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010370 Truck Scale, Armor, 10″ Concrete Deck, 110′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010371 Truck Scale, Armor, 10″ Concrete Deck, 117′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010372 Truck Scale, Armor, 10″ Concrete Deck, 120′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010373 Truck Scale, Armor, 10″ Concrete Deck, 125′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010374 Truck Scale, Armor, 10″ Concrete Deck, 140′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010375 Truck Scale, Armor, 10″ Concrete Deck, 160′ X 14′, 50 ton CLC, 135 Ton Capacity, SCBD Smart Cells Call For Pricing
1010850 Truck Scale, Armor, 8″ Concrete Deck, 12′ / 20′ / 40′ X 11′, 50T CLC, 135T Cap. SCBD Smart Cells Call For Pricing
1010851 Truck Scale, Armor, 180 / 180 / 600 X 132, 135T, 50 ton, Concrete, new standard above ground Call For Pricing
1010852 Truck Scale, Armor, 8″ Concrete Deck, 20′ / 20′ / 40′ X 11′, 50T CLC, 135T Cap., SCBD Smart Cells Call For Pricing

Product categories
