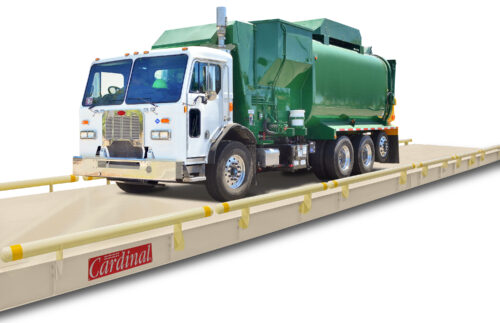

ARMOR Steel Deck Truck Scales with Guardian Hydraulic Load Cells

$0.00

Cardinal Scale’s ARMOR® truck scales with Guardian® hydraulic load cells are the smart choice for demanding applications like solid waste stations, quarries, grain elevators, and heavy construction. These impervious hydraulic steel deck truck scales feature the longest-lasting load cells available. Guardian® hydraulic load cells are covered under a true lifetime warranty protecting your truck scale against common issues like lightning strikes, voltage surges, water damage, and shock loading. The ARMOR® weighbridge is the top-rated truck scale on the market for vehicle weighing.

Download product PDF
Category:

Features

  • Checkered Steel Deck
  • Heavyweight 50-Ton CLC
  • Immune to Electrical Surges and Lightning Damage
  • Load Cells are Impervious to Water Damage
  • Long-Lasting Baked-on Tan Powder Coat Paint
  • Longest-Lasting Load Cells on the Market
  • Low-Profile or Pit Installations
  • NTEP and Measurement Canada Legal for Trade
  • Optional Grain Dump Modules
  • Severe-Duty Rated Protection
  • Stainless Steel IP68-Rated Hydraulic Load Cells
  • Standard Platform Sizes From 12 to 160 ft Long (10 to 14 ft Wide)
  • Tightly-Spaced I-beams for Optimal Structural Integrity

Specifications

Overall Capacities: From 50 tons up to 135 tons standard
Concentrated Load Capacity (CLC): 50 tons
Platform Sizes: From 12 ft to 160 ft long standard and 10 ft to 14 ft wide standard (custom platform lengths available)

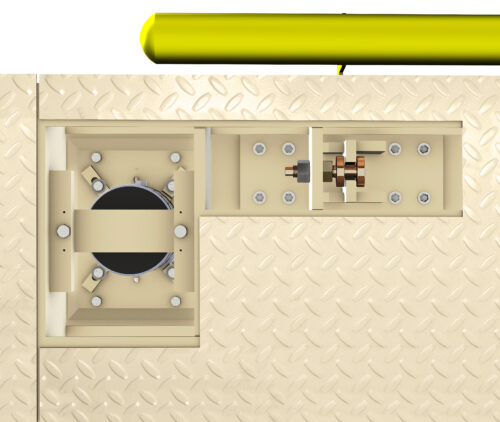

Load Cell: Guardian hydraulic model SST load cell
Load Cell Type: Stainless steel IP68-rated waterproof hydraulic compression load cell with 75,000 pound capacity
Paint: Baked-on, heavy-duty polyester anti-corrosion tan powder paint
Steel Deck Thickness: 5/16 inch thick checkered deck (3/8 inch is optional)
NTEP Approval: 17-047
Measurement Canada Approval: AM-4890
Internal Weighbridge Structural Integrity: 7.5-inch apart tight concentration of I-beam spacing which additional completely surrounds the load cell pockets
Warranty: Standard 5-year bridge-and-below warranty. Lifetime load cell warranty when installed by an authorized Cardinal Scale dealer.
Country of Origin: USA
Optional Guide Rails: Optional 4-inch-diameter, bolt-on pipe guide rails 8.5-inch above the deck surface
Scale Includes: Foundation kit (approach coping), fiberglass totalizer cabinet, 75,000-lb-capacity SST75 hydraulic load cells, and no-bolt steel deck weighbridge modules

Options

SR-1010500 Bolt-on Side Rails for 1010500 Call For Pricing
SR-1010501 Bolt-on Side Rails for 1010501 Call For Pricing
SR-1010502 Bolt-on Side Rails for 1010502 Call For Pricing
SR-1010503 Bolt-on Side Rails for 1010503 Call For Pricing
SR-1010504 Bolt-on Side Rails for 1010504 Call For Pricing
SR-1010505 Bolt-on Side Rails for 1010505 Call For Pricing
SR-1010506 Bolt-on Side Rails for 1010506 Call For Pricing
SR-1010507 Bolt-on Side Rails for 1010507 Call For Pricing
SR-1010508 OPTIONAL SIDERAIL ASSEMBLY FOR 1010508 Call For Pricing
SR-1010509 Bolt-on Side Rails for 1010509 Call For Pricing
SR-1010510 Bolt-on Side Rails for 1010510 Call For Pricing
SR-1010511 Bolt-on Side Rails for 1010511 Call For Pricing
SR-1010512 Bolt-on Side Rails for 1010512 Call For Pricing
SR-1010513 Bolt-on Side Rails for 1010513 Call For Pricing
SR-1010514 Bolt-on Side Rails for 1010514 Call For Pricing
SR-1010515 Bolt-on Side Rails for 1010515 Call For Pricing
SR-1010516 Bolt-on Side Rails for 1010516 Call For Pricing
SR-1010517 Bolt-on Side Rails for 1010517 Call For Pricing
SR-1010518 Bolt-on Side Rails for 1010518 Call For Pricing
SR-1010519 Bolt-on Side Rails for 1010519 Call For Pricing
SR-1010520 Bolt-on Side Rails for 1010520 Call For Pricing
SR-1010521 Bolt-on Side Rails for 1010521 Call For Pricing
SR-1010522 Bolt-on Side Rails for 1010522 Call For Pricing
SR-1010523 Bolt-on Side Rails for 1010523 Call For Pricing
SR-1010524 Bolt-on Side Rails for 1010524 Call For Pricing
SR-1010525 Bolt-on Side Rails for 1010525 Call For Pricing
SR-1010526 Bolt-on Side Rails for 1010526 Call For Pricing
SR-1010527 Bolt-on Side Rails for 1010527 (Optional Equipment) Call For Pricing
SR-1010528 SR-1010528 Call For Pricing
SR-1010529 Optional Siderail Assembly for 1010529 Call For Pricing
SR-1010530 Bolt-on Side Rails for 1010530 Call For Pricing
SR-1010531 Bolt-on Side Rails for 1010531 Call For Pricing
SR-1010532 Bolt-on Side Rails for 1010532 Call For Pricing
SR-1010533 Bolt-on Side Rails for 1010533 Call For Pricing
SR-1010534 Bolt-on Side Rails for 1010534 Call For Pricing
SR-1010535 Bolt-on Side Rails for 1010535 Call For Pricing
SR-1010536 SR-1010536 Call For Pricing
SR-1010537 Bolt-on Side Rails for 1010537 Call For Pricing
SR-1010538 Bolt-on Side Rails for 1010538 Call For Pricing
SR-1010539 Bolt-on Side Rails for 1010539 Call For Pricing
SR-1010540 Bolt-on Side Rails for 1010540 Call For Pricing
SR-1010541 Bolt-on Side Rails for 1010541 Call For Pricing
SR-1010542 Bolt-on Side Rails for 1010542 Call For Pricing
SR-1010543 Bolt-on Side Rails for 1010543 Call For Pricing
SR-1010544 Bolt-on Side Rails for 1010544 Call For Pricing
SR-1010545 Bolt-on Side Rails for 1010545 Call For Pricing
SR-1010546 Bolt-on Side Rails for 1010546 Call For Pricing
SR-1010547 Bolt-on Side Rails for 1010547 Call For Pricing
SR-1010548 Bolt-On Side Rails for 1010548 Call For Pricing
SR-1010549 Bolt-on Side Rails for 1010549 Call For Pricing
SR-1010550 Bolt-on Side Rails for 1010550 Call For Pricing
SR-1010551 Bolt-on Side Rails for 1010551 Call For Pricing
SR-1010552 Bolt-on Side Rails for 1010552 Call For Pricing
SR-1010553 Bolt-on Side Rails for 1010553 Call For Pricing
SR-1010554 Bolt-on Side Rails for 1010554 Call For Pricing
SR-1010555 Bolt-on Side Rails for 1010555 Call For Pricing
SR-1010556 Bolt-on Side Rails for 1010556 Call For Pricing
SR-1010557 Bolt-on Side Rails for 1010557 Call For Pricing
SR-1010558 Bolt-on Side Rails for 1010558 Call For Pricing
SR-1010559 Bolt-on Side Rails for 1010559 Call For Pricing
SR-1010560 Bolt-on Side Rails for 1010560 Call For Pricing
SR-1010561 Bolt-on Side Rails for 1010561 Call For Pricing
SR-1010562 Bolt-on Side Rails for 1010562 Call For Pricing
SR-1010563 Bolt-on Side Rails for 1010563 Call For Pricing
SR-1010564 Bolt-on Side Rails for 1010564 Call For Pricing
SR-1010565 Bolt-on Side Rails for 1010565 Call For Pricing
SR-1010566 Bolt-on Side Rails for 1010566 Call For Pricing
SR-1010567 Bolt-on Side Rails for 1010567 Call For Pricing
SR-1010568 Bolt-on Side Rails for 1010568 Call For Pricing
SR-1010569 Bolt-on Side Rails for 1010569 Call For Pricing
SR-1010570 Bolt-on Side Rails for 1010570 Call For Pricing
SR-1010571 Bolt-on Side Rails for 1010571 Call For Pricing
SR-1010572 Bolt-on Side Rails for 1010572 Call For Pricing
SR-1010573 Bolt-on Side Rails for 1010573 Call For Pricing
SR-1010574 Bolt-on Side Rails for 1010574 Call For Pricing
SR-1010575 Bolt-on Side Rails for 1010575 Call For Pricing

Models

1010500 Truck Scale, Armor, 5/16″ Steel Deck, 12′ X 10′, 50 ton CLC, 50 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010501 Truck Scale, Armor, 5/16″ Steel Deck, 20′ X 10′, 50 ton CLC, 50 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010502 Truck Scale, Armor, 5/16″ Steel Deck, 25′ X 10′, 50 ton CLC, 50 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010503 Truck Scale, Armor, 5/16″ Steel Deck, 30′ X 10′, 50 ton CLC, 70 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010504 Truck Scale, Armor, 5/16″ Steel Deck, 40′ X 10′, 50 ton CLC, 70 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010505 Truck Scale, Armor, 5/16″ Steel Deck, 47′ X 10′, 50 ton CLC, 70 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010506 Truck Scale, Armor, 5/16″ Steel Deck, 50′ X 10′, 50 ton CLC, 80 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010507 Truck Scale, Armor, 5/16″ Steel Deck, 60′ X 10′, 50 ton CLC, 110 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010508 Truck Scale, Armor, 5/16″ Steel Deck, 70′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010509 Truck Scale, Armor, 5/16″ Steel Deck, 75′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010510 Truck Scale, Armor, 5/16″ Steel Deck, 80′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010511 Truck Scale, Armor, 5/16″ Steel Deck, 90′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010512 Truck Scale, Armor, 5/16″ Steel Deck, 100′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010513 Truck Scale, Armor, 5/16″ Steel Deck, 110′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010514 Truck Scale, Armor, 5/16″ Steel Deck, 117′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010515 Truck Scale, Armor, 5/16″ Steel Deck, 120′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010516 Truck Scale, Armor, 5/16″ Steel Deck, 125′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010517 Truck Scale, Armor, 5/16″ Steel Deck, 140′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010518 Truck Scale, Armor, 5/16″ Steel Deck, 160′ X 10′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010519 Truck Scale, Armor, 5/16″ Steel Deck, 12′ X 11′, 50 ton CLC, 50 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010520 Truck Scale, Armor, 5/16″ Steel Deck, 20′ X 11′, 50 ton CLC, 50 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010521 Truck Scale, Armor, 5/16″ Steel Deck, 25′ X 11′, 50 ton CLC, 50 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010522 Truck Scale, Armor, 5/16″ Steel Deck, 30′ X 11′, 50 ton CLC, 50 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010523 Truck Scale, Armor, 5/16″ Steel Deck, 40′ X 11′, 50 ton CLC, 70 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010524 Truck Scale, Armor, 5/16″ Steel Deck, 47′ X 11′, 50 ton CLC, 70 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010525 Truck Scale, Armor, 5/16″ Steel Deck, 50′ X 11′, 50 ton CLC, 80 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010526 Truck Scale, Armor, 5/16″ Steel Deck, 60′ X 11′, 50 ton CLC, 110 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010527 Truck Scale, Armor, 5/16″ Steel Deck, 70′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010528 Truck Scale, Armor, 5/16″ Steel Deck, 75′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010529 Truck Scale, Armor, 5/16″ Steel Deck, 80′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010530 Truck Scale, Armor, 5/16″ Steel Deck, 90′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010531 Truck Scale, Armor, 5/16″ Steel Deck, 100′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010532 Truck Scale, Armor, 5/16″ Steel Deck, 110′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010533 Truck Scale, Armor, 5/16″ Steel Deck, 117′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010534 Truck Scale, Armor, 5/16″ Steel Deck, 120′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010535 Truck Scale, Armor, 5/16″ Steel Deck, 125′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010536 Truck Scale, Armor, 5/16″ Steel Deck, 140′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010537 Truck Scale, Armor, 5/16″ Steel Deck, 160′ X 11′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010538 Truck Scale, Armor, 5/16″ Steel Deck, 12′ X 12′, 50 ton CLC, 45 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010539 Truck Scale, Armor, 5/16″ Steel Deck, 20′ X 12′, 50 ton CLC, 45 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010540 Truck Scale, Armor, 5/16″ Steel Deck, 25′ X 12′, 50 ton CLC, 45 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010541 Truck Scale, Armor, 5/16″ Steel Deck, 30′ X 12′, 50 ton CLC, 50 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010542 Truck Scale, Armor, 5/16″ Steel Deck, 40′ X 12′, 50 ton CLC, 70 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010543 Truck Scale, Armor, 5/16″ Steel Deck, 47′ X 12′, 50 ton CLC, 70 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010544 Truck Scale, Armor, 5/16″ Steel Deck, 50′ X 12′, 50 ton CLC, 80 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010545 Truck Scale, Armor, 5/16″ Steel Deck, 60′ X 12′, 50 ton CLC, 110 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010546 Truck Scale, Armor, 5/16″ Steel Deck, 70′ X 12′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010547 Truck Scale, Armor, 5/16″ Steel Deck, 75′ X 12′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010548 Truck Scale, Armor, 5/16″ Steel Deck, 80′ X 12′, 50 Ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010549 Truck Scale, Armor, 5/16″ Steel Deck, 90′ X 12′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010550 Truck Scale, Armor, 5/16″ Steel Deck, 100′ X 12′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010551 Truck Scale, Armor, 5/16″ Steel Deck, 110′ X 12′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010552 Truck Scale, Armor, 5/16″ Steel Deck, 117′ X 12′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010553 Truck Scale, Armor, 5/16″ Steel Deck, 120′ X 12′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010554 Truck Scale, Armor, 5/16″ Steel Deck, 125′ X 12′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010555 Truck Scale, Armor, 5/16″ Steel Deck, 140′ X 12′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010556 Truck Scale, Armor, 5/16″ Steel Deck, 160′ X 12′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010557 Truck Scale, Armor, 5/16″ Steel Deck, 12′ X 14′, 50 ton CLC, 45 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010558 Truck Scale, Armor, 5/16″ Steel Deck, 20′ X 14′, 50 ton CLC, 45 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010559 Truck Scale, Armor, 5/16″ Steel Deck, 25′ X 14′, 50 ton CLC, 45 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010560 Truck Scale, Armor, 5/16″ Steel Deck, 30′ X 14′, 50 ton CLC, 50 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010561 Truck Scale, Armor, 5/16″ Steel Deck, 40′ X 14′, 50 ton CLC, 70 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010562 Truck Scale, Armor, 5/16″ Steel Deck, 47′ X 14′, 50 ton CLC, 70 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010563 Truck Scale, Armor, 5/16″ Steel Deck, 50′ X 14′, 50 ton CLC, 80 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010564 Truck Scale, Armor, 5/16″ Steel Deck, 60′ X 14′, 50 ton CLC, 110 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010565 Truck Scale, Armor, 5/16″ Steel Deck, 70′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010566 Truck Scale, Armor, 5/16″ Steel Deck, 75′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010567 Truck Scale, Armor, 5/16″ Steel Deck, 80′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010568 Truck Scale, Armor, 5/16″ Steel Deck, 90′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010569 Truck Scale, Armor, 5/16″ Steel Deck, 100′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010570 Truck Scale, Armor, 5/16″ Steel Deck, 110′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010571 Truck Scale, Armor, 5/16″ Steel Deck, 117′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010572 Truck Scale, Armor, 5/16″ Steel Deck, 120′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010573 Truck Scale, Armor, 5/16″ Steel Deck, 125′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010574 Truck Scale, Armor, 5/16″ Steel Deck, 140′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010575 Truck Scale, Armor, 5/16″ Steel Deck, 160′ X 14′, 50 ton CLC, 135 Ton Capacity, SST Hyd. Load Cells Call For Pricing
1010800 Truck Scale, Armor, Guardian, Multi Platform 12ft/20ft/40ft x 11ft 135T, 50T , Steel, Above Ground Call For Pricing
1010801 Truck Scale, Armor, Guardian, Multi Platform 15ft/15ft/50ft x 11ft 135T, 50T , Steel, Above Ground Call For Pricing
1010802 Truck Scale, Armor, Guardian, Multi Platform 20ft/20ft/40ft x 11ft 135T, 50T , Steel, Above Ground Call For Pricing

Product categories
