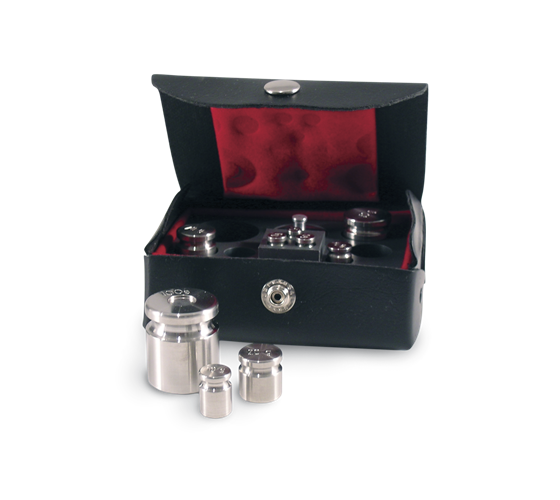

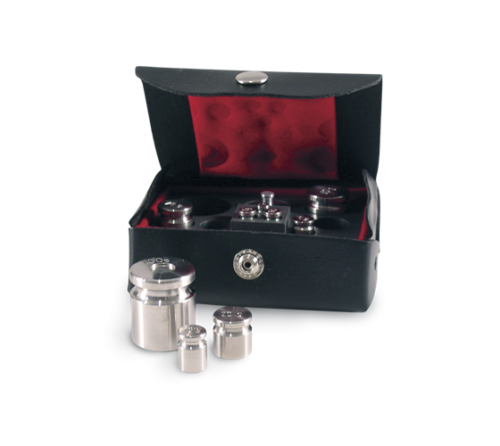

ASTM Class 5 Metric Calibration Weight Sets

$0.00

ASTM Class 5 metric calibration weight sets are used for testing non-classified scale equipment, field standards for Class III scales or balances and tolerance checking.

Download product PDF
Categories: ,

Features

  • Stainless steel weights designed to meet NIST Handbook 44 and ASTM E617-18
  • Class 5 tolerances
  • Sealing cavity for adjustment for most weights
  • Serial numbers may be stamped on weights (option)
  • Nominal value marked on weights

Specifications

5 g – 1 mg 50 g – 1 mg (2) 50 g – 1 mg 50 g – 10 mg 50 g – 1 g
1 – 5 g 1 – 50 g 2 – 50 g 1 – 50 g 1 – 50 g
1 – 3 g 2 – 20 g 1 – 30 g 2 – 20 g 2 – 20 g
1 – 2 g 1 – 10 g 1 – 20 g 1 – 10 g 1 – 10 g
1 – 1 g 1 – 5 g 1 – 10 g 1 – 5 g 1 – 5 g
1 – 500 mg 2 – 2 g 1 – 5 g 2 – 2 g 2 – 2 g
1 – 300 mg 1 – 1 g 1 – 3 g 1 – 1 g 1 – 1 g
1 – 200 mg 1 – 500 mg 1 – 2 g 1 – 500 mg
1 – 100 mg 2 – 200 mg 1 – 1 g 2 – 200 mg
1 – 50 mg 1 – 100 mg 1 – 500 mg 1 – 100 mg
1 – 30 mg 1 – 50 mg 1 – 300 mg 1 – 50 mg
1 -20 mg 2 – 20 mg 1 – 200 mg 2 – 20 mg
1 – 10 mg 1 – 10 mg 1 – 100 mg 1 – 10 mg
1 – 5 mg 1 – 5 mg 1 – 50 mg
1 – 3 mg 2 – 2 mg 1 – 30 mg
1 – 2 mg 1 – 1 mg 1 -20 mg
1 – 1 mg   1 – 10 mg
    1 – 5 mg
    1 – 3 mg
    1 – 2 mg
    1 – 1 mg

Piece Count
16 20 21 16 8
Total Weight
12.221 g 111.11 g 172.221 g 111.1 g 110.000 g
Part #
12548 12504 12550 12502 12500

Options

36092 Form,Statement of Accuracy
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon Fiber
25836 Serial Number

Models

12518 Weight Set,1kg-1g ASTM Class 5 SST Satin (5221) 2.11kg Kit
12520 Weight Set,1kg-10mg ASTM Class 5 SST Satin (5221) 2.1111kg Kit
12522 Weight Set,1kg-1mg ASTM Class 5 SST Satin (5221) 2.11111kg Kit
