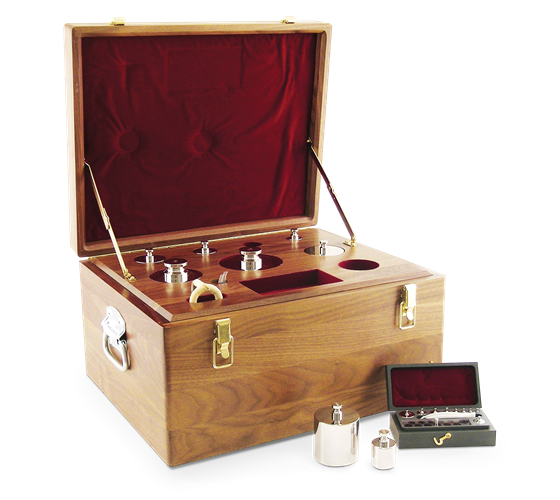

ASTM Range 20 kg and 25 kg Precision Laboratory Metric Sets

$617.00

ASTM precision laboratory metric sets with a 20 and 25 kilogram range have a stainless steel polished finish and are designed to meet ASTM E617-13 specifications.

Download product PDF
Categories: ,

Features

  • Stainless steel polished finish
  • Designed to meet ASTM E617-13 specifications
  • ASTM Class 0 weight sets and individual weights are not individually marked with their weight value or individually serialized per ASTM E617-13
  • Nominal value marked on weights
  • Serial numbers applied to case (weights may be marked with symbol)
  • Density 7.95g/cm3

Specifications

25 kg – 1 g* 20 kg – 1 mg 20 kg – 100 mg 20 kg – 1 g 20 kg – 1 g* 20 kg – 100 g 20 kg – 1 kg
1 – 25 kg 1 – 20 kg 1 – 20 kg 1 – 20 kg 1 – 20 kg 1 – 20 kg 1 – 20 kg
1 – 10 kg 1 – 10 kg 1 – 10 kg 1 – 10 kg 1 – 10 kg 1 – 10 kg 1 – 10 kg
1 – 5 kg 1 – 5 kg 1 – 5 kg 1 – 5 kg 1 – 5 kg 1 – 5 kg 1 – 5 kg
2 – 2 kg 1 – 3 kg 1 – 3 kg 1 – 3 kg 2 – 2 kg 1 – 3 kg 1 – 3 kg
1 – 1 kg 1 – 2 kg 1 – 2 kg 1 – 2 kg 1 – 1 kg 1 – 2 kg 1 – 2 kg
1 – 500 g 1 – 1 kg 1 – 1 kg 1 – 1 kg 1 – 500 g 1 – 1 kg 1 – 1 kg
2 – 200 g 1 – 500 g 1 – 500 g 1 – 500 g 2 – 200 g 1 – 500 g
1 – 100 g 1 – 300 g 1 – 300 g 1 – 300 g 1 – 100 g 1 – 300 g
1 – 50 g 1 – 200 g 1 – 200 g 1 – 200 g 1 – 50 g 1 – 200 g
2 – 20 g 1 – 100 g 1 – 100 g 1 – 100 g 2 – 20 g 1 – 100 g
1 – 10 g 1 – 50 g 1 – 50 g 1 – 50 g 1 – 10 g
1 – 5 g 1 – 30 g 1 – 30 g 1 – 30 g 1 – 5 g
2 – 2 g 1 – 20 g 1 – 20 g 1 – 20 g 2 – 2 g
1 – 1 g 1 – 10 g 1 – 10 g 1 – 10 g 1 – 1 g
  1 – 5 g 1 – 5 g 1 – 5 g
  1 – 3 g 1 – 3 g 1 – 3 g
  1 – 2 g 1 – 2 g 1 – 2 g
  1 – 1 g 1 – 1 g 1 – 1 g
  1 – 500 mg 1 – 500 mg
  1 – 300 mg 1 – 300 mg
  1 – 200 mg 1 – 200 mg
  1 – 100 mg 1 – 100 mg
  1 – 50 mg
  1 – 30 mg
  1 – 20 mg
  1 – 10 mg
  1 – 5 mg
  1 – 3 mg
  1 – 2 mg
  1 – 1 mg
Piece Count
18 30 22 18 18 10 6
Total Weight
46.11 kg 42.222221 kg 42.22 kg 42.22 kg 41.11 kg 42.1 kg 41 kg
Part # Part # Part # Part # Part # Part # Part #
– 45900-Class 0 45901-Class 0 45902-Class 0 – 45903-Class 0 45904-Class 0
11883-Class 1 12489-Class 1 46008-Class 1 12492-Class 1 11884-Class 1 46012-Class 1 46016-Class 1
12140-Class 2 11938-Class 2 46009-Class 2 11941-Class 2 12142-Class 2 46013-Class 2 46017-Class 2
12279-Class 3 12086-Class 3 46010-Class 3 12089-Class 3 12281-Class 3 46014-Class 3 46018-Class 3
12382-Class 4 12232-Class 4 46011-Class 4 12235-Class 4 12384-Class 4 46015-Class 4 46019-Class 4

Options

36092 Form,Statement of Accuracy
11714 Weight Glove,Cloth White
11711 Weight,Tweezers 3.54x.46 Delrin
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon Fiber
25836 Serial Number
11755 Cover,Leaf Weight
50035 Weight Forceps, 4-3/4 Plastic, 200g to 500g
11747 Weight,Lift 3/8×7/8×5.89 Handle Plexiglass, 200 g to 3 kg
11712 Weight,Lift Large Handle SST, 5 kg and larger nominal value
50037 Weight,Lift 2kg and 5kg OIML Polycarbonate
50000 Tong ASSY,24cmx7.5cm W/ Surgical Tubing On Ends

Models

45900 Weight Set,20kg-1mg ASTM Class 0 SST (5321), Calibration Certificate Included
45901 Weight Set,20kg-100mg ASTM Class 0 SST (5321), Calibraton Certification Included
45902 Weight Set,20kg-1g ASTM Class 0 SST (5321), Calibration Certificate Included
45903 Weight Set,20kg-100g ASTM Class 0 SST (5321)
45904 Weight Set,20kg-1kg ASTM Class 0 SST (5321), Calibraton Certificate Included
