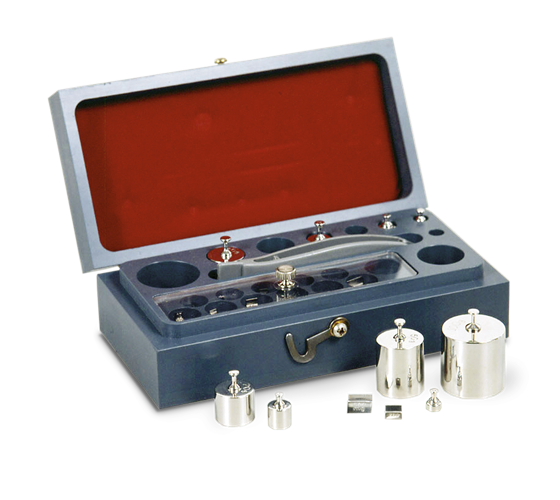

ASTM Range 50 g Precision Laboratory Metric Sets

$0.00

ASTM precision laboratory metric sets with a 50 gram range have a stainless steel polished finish and are designed to meet ASTM E617-13 specifications.

Download product PDF
Categories: ,

Features

  • Stainless steel polished finish
  • Designed to meet ASTM E617-13 specifications
  • ASTM Class 0 weight sets and individual weights are not individually marked with their weight value or individually serialized per ASTM E617-13
  • Nominal value marked on weights
  • Serial numbers applied to case (weights may be marked with symbol)
  • Density 7.95g/cm3

Specifications

50 g – 1 mg 50 g – 1 mg* 50 g – 5 mg 50 g – 5 mg* 50 g – 10 mg 50 g – 10 mg* 50 g – 100 mg 50 g – 100 mg* 50 g – 1 g 50 g – 1 g*
1 – 50 g 1 – 50 g 1 – 50 g 1 – 50 g 1 – 50 g 1 – 50 g 1 – 50 g 1 – 50 g 1 – 50 g 1 – 50 g
1 – 30 g 2 – 20 g 1 – 30 g 2 – 20 g 1 – 30 g 2 – 20 g 1 – 30 g 2 – 20 g 1 – 30 g 2 – 20 g
1 – 20 g 1 – 10 g 1 – 20 g 1 – 10 g 1 – 20 g 1 – 10 g 1 – 20 g 1 – 10 g 1 – 20 g 1 – 10 g
1 – 10 g 1 – 5 g 1 – 10 g 1 – 5 g 1 – 10 g 1 – 5 g 1 – 10 g 1 – 5 g 1 – 10 g 1 – 5 g
1 – 5 g 2 – 2 g 1 – 5 g 2 – 2 g 1 – 5 g 2 – 2 g 1 – 5 g 2 – 2 g 1 – 5 g 2 – 2 g
1 – 3 g 1 – 1 g 1 – 3 g 1 – 1 g 1 – 3 g 1 – 1 g 1 – 3 g 1 – 1 g 1 – 3 g 1 – 1 g
1 – 2 g 1 – 500 mg 1 – 2 g 1 – 500 mg 1 – 2 g 1 – 500 mg 1 – 2 g 1 – 500 mg 1 – 2 g
1 – 1 g 2 – 200 mg 1 – 1 g 2 – 200 mg 1 – 1 g 2 – 200 mg 1 – 1 g 2 – 200 mg 1 – 1 g
1 – 500 mg 1 – 100 mg 1 – 500 mg 1 – 100 mg 1 – 500 mg 1 – 100 mg 1 – 500 mg 1 – 100 mg
1 – 300 mg 1 – 50 mg 1 – 300 mg 1 – 50 mg 1 – 300 mg 1 – 50 mg 1 – 300 mg
1 – 200 mg 2 – 20 mg 1 – 200 mg 2 – 20 mg 1 – 200 mg 2 – 20 mg 1 – 200 mg
1 – 100 mg 1 – 10 mg 1 – 100 mg 1 – 10 mg 1 – 100 mg 1 – 10 mg 1 – 100 mg
1 – 50 mg 1 – 5 mg 1 – 50 mg 1 – 5 mg 1 – 50 mg
1 – 30 mg 2 – 2 mg 1 – 30 mg   1 – 30 mg
1 – 20 mg 1 – 1 mg 1 – 20 mg   1 – 20 mg
1 – 10 mg   1 – 10 mg   1 – 10 mg
1 – 5 mg   1 – 5 mg
1 – 3 mg
1 – 2 mg
1 – 1 mg
Piece Count
20 20 17 17 16 16 12 12 8 8
Total Weight
122.221 g 111.11 g 122.215 g 111.105 g 122.21 g 111.1 g 122.1 g 111 g 121 g 110 g
Part # Part # Part # Part # Part # Part # Part # Part # Part # Part #
84177-Class 0 – 84176-Class 0 – 84164-Class 0 – 84163-Class 0 – 84178-Class 0 –
12453-Class 1 11903-Class 1 12454-Class 1 11902-Class 1 12455-Class 1 11900-Class 1 84159-Class 1 11899-Class 1 12456-Class 1 11898-Class 1
11873-Class 2 12167-Class 2 11879-Class 2 12165-Class 2 11880-Class 2 12163-Class 2 84160-Class 2 12162-Class 2 11890-Class 2 12161-Class 2
11982-Class 3 22288-Class 3 11988-Class 3 22182-Class 3 11989-Class 3 22181-Class 3 84161-Class 3 12300-Class 3 12004-Class 3 12299-Class 3
12128-Class 4 12407-Class 4 12134-Class 4 12405-Class 4 12135-Class 4 12404-Class 4 84162-Class 4 12403-Class 4 12150-Class 4 12402-Class 4

Options

36092 Form,Statement of Accuracy
11711 Weight,Tweezers 3.54x.46 Delrin
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon Fiber
11755 Cover,Leaf Weight
11714 Weight Glove,Cloth White

Models

84178 Weight Set,50g-1g ASTM Class 0 SST (5321), Calibration Certificate Included
84177 Weight Set,50g-1mg ASTM Class 0 SST (5321, Calibration Certificate Included
84176 Weight Set,50g-5mg ASTM Class 0 SST (5321), Calibration Certificate Included
84164 Weight Set,50g-10mg ASTM Class 0 SST (5321), Calibration Certificate Included
84163 Weight Set,50g-100mg ASTM Class 0 SST (5321), Calibration Certificate Included
