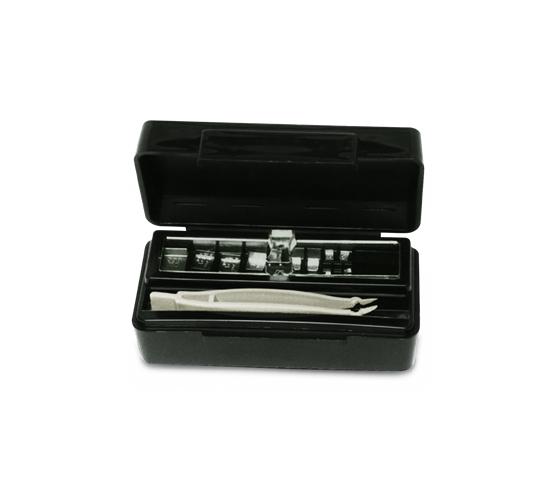

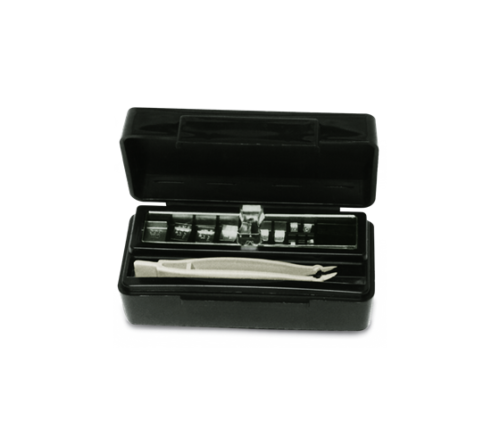

ASTM Range 500 mg Precision Laboratory Metric Sets

$0.00

ASTM precision laboratory metric sets with a 500 milligram range have a stainless steel polished finish and are designed to meet ASTM E617-13 specifications.

Download product PDF
Categories: ,

Features

  • Stainless steel polished finish
  • Designed to meet ASTM E617-13 specifications
  • ASTM Class 0 weight sets and individual weights are not individually marked with their weight value or individually serialized per ASTM E617-13
  • Nominal value marked on weights
  • Serial numbers applied to case (weights may be marked with symbol)
  • Density 7.95g/cm3

Specifications

500 mg – 1 mg 500 mg – 1 mg* 500 mg – 10 mg 500 mg – 10 mg* 500 mg – 100 mg 500 mg – 100 mg*
1 – 500 mg 1 – 500 mg 1 – 500 mg 1 – 500 mg 1 – 500 mg 1 – 500 mg
1 – 300 mg 2 – 200 mg 1 – 300 mg 2 – 200 mg 1 – 300 mg 2 – 200 mg
1 – 200 mg 1 – 100 mg 1 – 200 mg 1 – 100 mg 1 – 200 mg 1 – 100 mg
1 – 100 mg 1 – 50 mg 1 – 100 mg 1 – 50 mg 1 – 100 mg
1 – 50 mg 2 – 20 mg 1 – 50 mg 2 – 20 mg
1 – 30 mg 1 – 10 mg 1 – 30 mg 1 – 10 mg
1 – 20 mg 1 – 5 mg 1 – 20 mg
1 – 10 mg 2 – 2 mg 1 – 10 mg
1 – 5 mg 1 – 1 mg
1 – 3 mg
1 – 2 mg
1 – 1 mg
Piece Count
12 12 8 8 4 4
Total Weight
1.221 g 1.11 g 1.21 g 1.11 g 1.1 g .8 g
Part # Part # Part # Part # Part # Part #
45933-Class 0 96359-Class 0 84141-Class 0 98191-Class 0 45934-Class 0 96360-Class 0
12445-Class 1 11910-Class 1 12447-Class 1 11909-Class 1 45952-Class 1 45944-Class 1
11838-Class 2 12176-Class 2 11848-Class 2 12175-Class 2 45953-Class 2 45945-Class 2
11946-Class 3 12313-Class 3 11956-Class 3 12312-Class 3 45954-Class 3 45946-Class 3
12093-Class 4 12416-Class 4 12103-Class 4 12415-Class 4 45955-Class 4 45947-Class 4

Options

36092 Form,Statement of Accuracy
11714 Weight Glove,Cloth White
11711 Weight,Tweezers 3.54x.46 Delrin
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon Fiber

Models

45933 Weight Set,500mg-1mg ASTM Class 0 SST (5321), Calibration Certificate included
84141 Weight Set,500mg-10mg ASTM Class 0 SST (5321), Calibration Certificate included
45934 Weight Set,500mg-100mg ASTM Class 0 SST (5321), Calibration Certificate included
96359 Weight Set,500mg-1mg ASTM Class 0, (5221), Calibration Certificate included
98191 Weight Set,500mg-10mg (5-2-2-1), Class 0, Calibration Certificate included
96360 Weight Set,500mg-100mg ASTM Class 0, (5221), Calibration Certificate included
