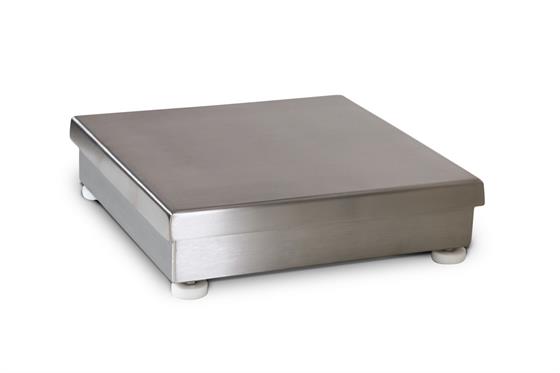

BenchMark CW-80B Bench Scale

$0.00

Available in three model series, Rice Lake’s BenchMark CW-80 bench scale base suits a vast range of medium- to high-capacity applications

Download product PDF
Category:

Features

  • 304 stainless steel construction

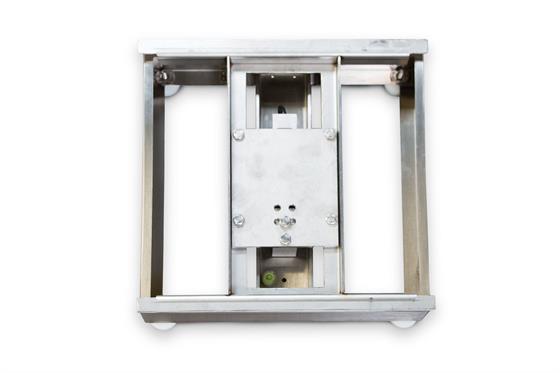

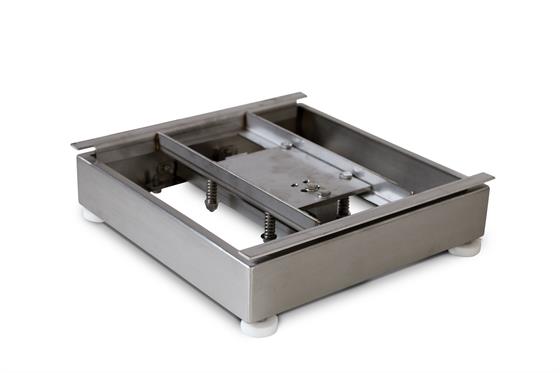

  • LifeGuard? base design isolates load cell from overloads and shock loads for added durability
  • Specially designed adjustable support feet provide exceptional traction and won?t scratch surfaces
  • NTEP Certified stainless steel load cell

Specifications

Load Cell, NTEP Certified:
Stainless steel and environmentally sealed IP67

Output Impedance:
350 ?

Maximum Overload:
200%

Overload Protection:
Shock-absorbing spider

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14? F to 104? F (-10? C to 40? C)

Warranty:
Two-year limited warranty

Approvals:
NTEP CC 96-107, Class III, 3000 d, FM,
Measurement Canada AM-5156, Class III 3,000 d

Options

112044 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legen Series, 680 Synergy Series
112045 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legen Series, 680 Synergy Series
64576 Bracket,Attachment Kit OPT, Benchmark for IQ355, IQ+210, 420 plus, 320IS, 320IS plus, 480/482 Legend Series
22125 LIT,Manual Benchmark Scale

Models

Part #?35075 Product DescriptionBench Scale,CW80B-1 10×10 6lb/3kg 10ft SST
Part #?35076 Product DescriptionBench Scale,CW80B-2 10×10 10lb/5kg 10ft SST
Part #?35077 Product DescriptionBench Scale,CW80B-3 10×10 15lb/7.5kg 10ft SST
Part #?35078 Product DescriptionBench Scale,CW80B-4 10×10 30lb/15kg 10ft SST
Part #?35079 Product DescriptionBench Scale,CW80B-5 12×12 30lb/15kg 10ft SST
Part #?35080 Product DescriptionBench Scale,CW80B-6 12×12 60lb/30kg 10ft SST
