BenchMark® HD-1 Aviation Scale

$0.00

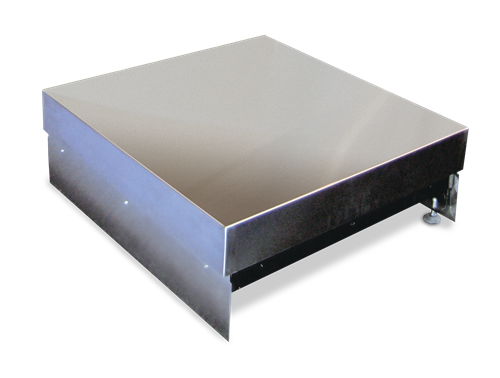

The heavy-duty BenchMark® HD-1 aviation scale is constructed of a mild steel base and a stainless steel cover to provide a durable, visually appealing baggage weighing solution for airline check-in counters. It is designed to be installed between two airline check-in desks, and features front and back kick plates to protect the scale from debris.

Download product PDF
Categories: ,

Features

  • Heavy-duty scale designed mild steel base construction with 304 stainless steel cover
  • Polyurethane rubber leveling feet with stainless steel stems
  • Load cell comes standard with DB-9 connector for connecting to Tracer AV2
  • Front and back kick plates

Specifications

Load Cell, NTEP Certified:
IP67 aluminum, environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:
200%

 Overload Protection:
Five-point, independently adjusted

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 ˚F to 104 ˚F (-10 ˚C to 40 ˚C)

 Warranty:
Two-year limited

Approvals:
NTEP CC 06-010, Class III 5,000 d
Measurement Canada AM-5625
Load cell is cFMus approved

Options

Consult Capacity 500 lb (225 kg)
