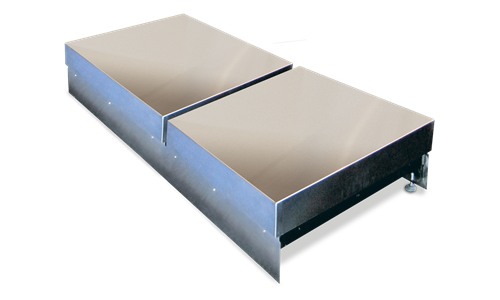

BenchMark® HD-3 Aviation Scale

$0.00

For larger airline check-in counters, the BenchMark® HD-3 provides two durable scale platforms to streamline passenger check in. The side-by-side scales have a mild steel base and stainless steel covers with front and back kick panels for reliable baggage weighing.

Download product PDF
Categories: ,

Features

  • Two heavy-duty scales designed mild steel base construction with 304 stainless steel cover
  • Polyurethane rubber leveling feet with stainless steel stems
  • Load cell comes standard with DB-9 connector for connecting to Tracer AV2
  • Front and back kick plates for two side-by-side scales

Specifications

Load Cell, NTEP Certified:
IP67 aluminum, environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:
200%

 Overload Protection:
Five-point, independently adjusted

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 ˚F to 104 ˚F (-10 ˚C to 40 ˚C)

 Warranty:
Two-year limited

Approvals:
NTEP CC 06-010, Class III 5,000 d
Measurement Canada AM-5625
Load cell is cFMus approved

Options

Consult Capacity 500 lb (225 kg)
