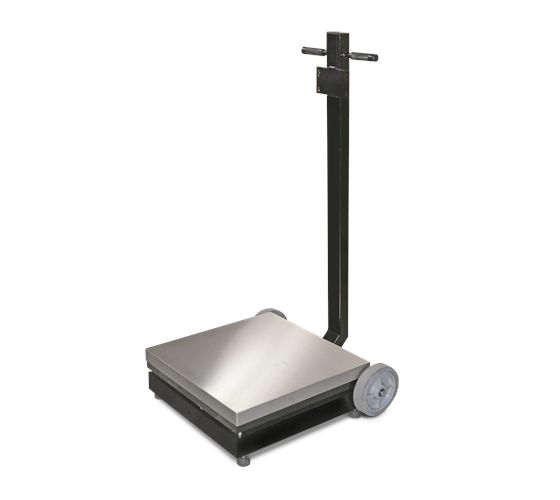

BenchMark? HDP Heavy-Duty Portable Scale

$0.00

  • Mild steel base construction
  • 304 stainless steel cover
  • Indicator stand for mounting IQ plus 390-DC, IQ plus 590-DC and 480/482 Legend? Series
  • Wheel model
  • Polyurethane rubber leveling feet with stainless steel stems
  • 8 in diameter preformed rubber wheels with ball bearings
  • Caster model
  • 3 1/2 in diameter preformed rubber casters, two fixed, two swivel with lock
Download product PDF
Categories: , ,

Features

? Mild steel base construction
? 304 stainless steel cover
? Indicator stand for mounting IQ plus 390-DC, IQ plus 590-DC and
480/482 Legend? Series
? Wheel model
? Polyurethane rubber leveling feet with stainless steel stems
? 8in diameter preformed rubber wheels with ball bearings
? Caster model
? 3 1/2in diameter preformed rubber casters, two fixed, two swivel with lock

Specifications

Load Cell, NTEP Certified:??IP67 IP66 Aluminum, environmentally sealed
Output Impedance:??350?
Maximum Overload😕 200%
Overload Protection:??Five-point, independently adjusted
Cable Length:??10 ft (3m)
Compensated Temperature Range:14? F to 104? F (-10?C to 40?C)
Warranty:??Two-year limited warranty
Approvals:
NTEP CC 06-010, Class III 5,000 d
Measurement Canada AM-5625, Class III 5,000 d

Models

Caster Model

97074 Scale,Benchmark HDP 24×24 250lb Mild Steel with SST cover, 2 fixed casters and 2 swivel casters
97075 Scale,Benchmark HDP 24×24 500lb Mild Steel with SST cover, 2 fixed casters and 2 swivel casters

Wheel Model

97072 Scale,Benchmark HDP 24×24 250lb Mild Steel with SST cover, 2 wheels
97073 Scale,Benchmark HDP 24×24 500lb Mild Steel with SST cover, 2 wheels
