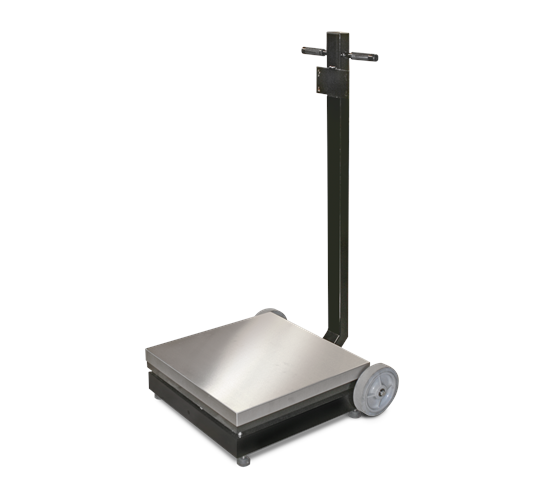

BenchMark HDP Heavy-Duty Portable Scale

$0.00

Available in several variations and capacities, the BenchMark HDP portable platform scale is an ideal option for many light industrial and commercial applications.

Download product PDF
Categories: ,

Features

  • Mild steel base construction
  • 304 stainless steel cover
  • Indicator stand for mounting IQ plus 390-DC, IQ plus 590-DC and 480/482 Legend? Series
  • Wheel model
  • Polyurethane rubber leveling feet with stainless steel stems
  • 8 in diameter preformed rubber wheels with ball bearings
  • Caster model
  • 3 1/2 in diameter preformed rubber casters, two fixed, two swivel with lock

Specifications

Load Cell, NTEP Certified:
IP67 Aluminum, environmentally sealed

Output Impedance:
350 ?

Maximum Overload:
200%

Overload Protection:
Five-point, independently adjusted

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14? F to 104? F (-10? C to 40? C)

Warranty:
Two-year limited warranty

Approvals:
NTEP CC 06-010, Class III 5,000 d
Measurement Canada AM-5625, Class III 5,000 d

Options

112044 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legen Series, 680 Synergy Series
112045 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legen Series, 680 Synergy Series
64576 Bracket,Attachment Kit OPT, Benchmark for IQ355, IQ+210, 420 plus, 320IS, 320IS plus, 480/482 Legend Series
22125 LIT,Manual Benchmark Scale

Models

Caster Model

Part #?97074 Product DescriptionScale,Benchmark HDP 24×24 250lb Mild Steel with SST cover, 2 fixed casters and 2 swivel casters
Part #?97075 Product DescriptionScale,Benchmark HDP 24×24 500lb Mild Steel with SST cover, 2 fixed casters and 2 swivel casters

Wheel Model

Part #?97072 Product DescriptionScale,Benchmark HDP 24×24 250lb Mild Steel with SST cover, 2 wheels
Part #?97073 Product DescriptionScale,Benchmark HDP 24×24 500lb Mild Steel with SST cover, 2 wheels
