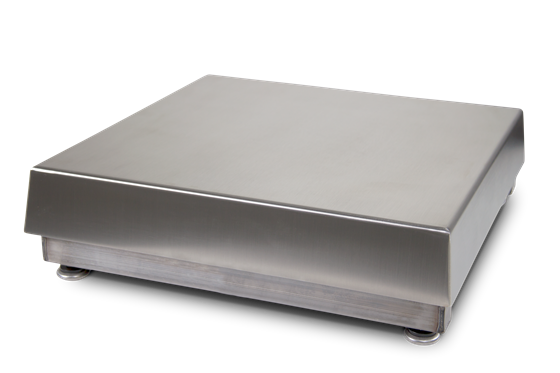

BenchMark HE Hostile Environment Bench Scale

$0.00

Starting with a stainless steel IP69K hermetically sealed load cell, the HE Series addresses the needs of hostile environment and washdown applications. Rice Lake’s BenchMark HE performs reliably through the most demanding tasks, with a base that’s specially engineered for overload protection. The HE Series design is available on almost any size or capacity.

Download product PDF
Category:

Features

  • 304 stainless steel frame and cover
  • LifeGaurdTM?base design isolates load cell from overloads and shock loads for added durability
  • Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces

Specifications

Load Cell, NTEP Certified:
IP69K stainless steel, hermetically sealed

Output Impedance:
1,000 ?

Maximum Overload:
150-200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14? F to 104? F (-10? C to 40? C)

Warranty:
Three-year limited warranty
(includes water ingress)

Approvals:
NTEP CC 95-072, Class III, 5,000 d
Measurement Canada AM-5082, Class III, 5,000 d
Load cell is FM approved

Options

112044 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legen Series, 680 Synergy Series
112045 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legen Series, 680 Synergy Series
64576 Bracket,Attachment Kit OPT, Benchmark for IQ355, IQ+210, 420 plus, 320IS, 320IS plus, 480/482 Legend Series
22125 LIT,Manual Benchmark Scale

Models

Part #?186897Product DescriptionScale,BENCHMARK HE BM1218S-50 12x18x4 50 lb 10ft NTEP III SSTList Price?

Part #?186898Product DescriptionScale,BENCHMARK HE BM1218S-100 12x18x4 100 lb 10ft NTEP III SSTList Price?

Part #?86952Product DescriptionScale, BENCHMARK HE BM1818S-50 18x18x5-1/4 50lb 10ft NTEP III SSTList Price?

Part #?86953Product DescriptionScale, BENCHMARK HE BM1818S-100 18x18x5-1/4 100lb 10ft NTEP III SSTList Price?

Part #?86954Product DescriptionScale, BENCHMARK HE BM1818S-150 18x18x5-1/4 150lb 10ft NTEP III SSTList Price?

Part #?86955Product DescriptionScale,BENCHMARK HE BM1818S-200 18x18x5-1/4 200lb 10ft NTEP III SSTList Price?

Part #?86956Product DescriptionScale, BENCHMARK HE BM1818S-250 18x18x5-1/2 250lb 10ft SSTList Price?

Part #?86957Product DescriptionScale, BENCHMARK HE BM1818S-300 18x18x5-1/2 300lb 10ft SSTList Price?

Part #?86958Product DescriptionScale, BENCHMARK HE BM1818S-500 18x18x5-1/2 500lb 10ft SSTList Price?

Part #?86959Product DescriptionScale, BENCHMARK HE BM1818S-1000 18x18x5-1/2 1000lb 10ft SSTList Price?

Part #?86960Product DescriptionScale, BENCHMARK HE BM1824S-50 18x24x5-1/2 50lb 10ft NTEP III SSTList Price?

Part #?86961Product DescriptionScale, BENCHMARK HE BM1824S-100 18x24x5-1/2 100lb 10ft NTEP III SSTList Price?

Part #?86962Product DescriptionScale, BENCHMARK HE BM1824S-150 18x24x5-1/2 150lb 10ft NTEP III SSTList Price?

Part #?86963Product DescriptionScale, BENCHMARK HE BM1824S-200 18x24x5-1/2 200lb 10ft NTEP III SSTList Price?

Part #?86964Product DescriptionScale, BENCHMARK HE BM1824S-250 18x24x5-1/2 250lb 10ft SSTList Price?

Part #?86965Product DescriptionScale, BENCHMARK HE BM1824S-300 18x24x5-1/2 300lb 10ft SSTList Price?

Part #?86966Product DescriptionScale, BENCHMARK HE BM1824S-500 18x24x5-1/2 500lb 10ft SSTList Price?

Part #?86967Product DescriptionScale, BENCHMARK HE BM1824S-1000 18x24x5-1/2 1000lb 10ft SSTList Price?

Part #?86968Product DescriptionScale, BENCHMARK HE BM2424S-100 24x24x5-1/2 100lb 10ft NTEP III SSTList Price?

Part #?86969Product DescriptionScale, BENCHMARK HE BM2424S-150 24x24x5-1/2 150lb 10ft NTEP III SSTList Price?

Part #?86970Product DescriptionScale, BENCHMARK HE BM2424S-200 24x24x5-1/2 200lb 10ft NTEP III SSTList Price?

Part #?86971Product DescriptionScale,BENCHMARK HE BM2424S-250 24x24x5-1/2 250lb 10ft SSTList Price?

Part #?86972Product DescriptionScale, BENCHMARK HE BM2424S-300 24x24x5-1/2 300lb 10ft SSTList Price?

Part #?86973Product DescriptionScale, BENCHMARK HE BM2424S-500 24x24x5-1/2 500lb 10ft SSTList Price?

Part #?86974Product DescriptionScale, BENCHMARK HE BM2424S-1000 24x24x5-1/2 1000lb 10ft SSTList Price?
