Features

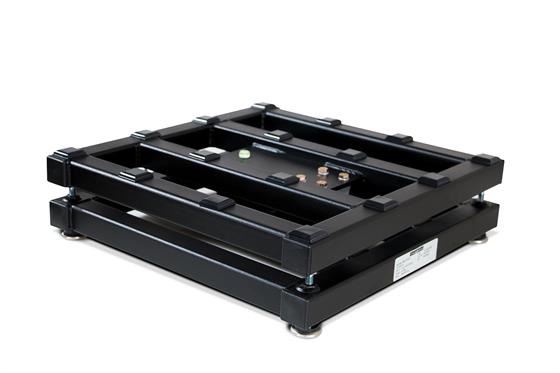

- Painted mild steel frame with 304 stainless steel cover

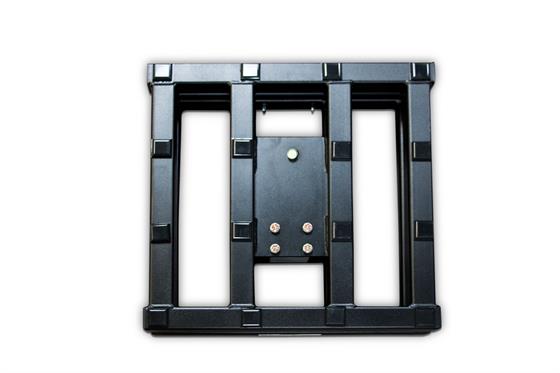

- Base design isolates load cell from overloads and shock loads for added durability
- Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces

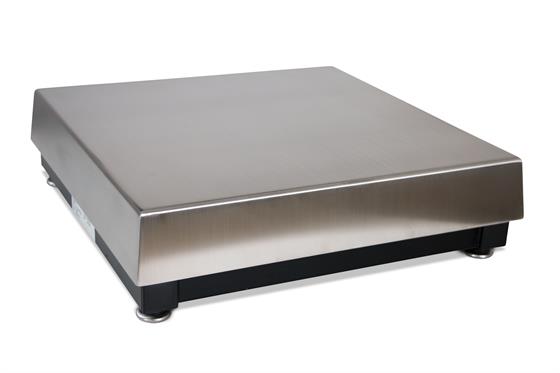

BenchMark Mild Steel Bench Scale
$0.00
The BenchMark Mild Steel Series is perfectly suited for industrial weighing in dry non-hostile work environments.
Specifications
Load Cell, NTEP Certified:
IP66 IP66 Aluminum, environmentally sealed
Output Impedance:
350 ?
Maximum Overload:
150-200% depending on capacity
Overload Protection:
Five-point, independently adjusted
Cable Length:
10 ft (3 m)
Compensated Temperature Range:
14? F to 104? F (-10? C to 40? C)
Warranty:
Two-year limited warranty
Approvals:
NTEP CC 95-072, Class III, 5,000 d
Measurement Canada AM-5082, Class III, 5,000 d
Models
| Part #?18580 | Product DescriptionScale,BENCHMARK BM1212-30 12x12x4-1/8 30 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18582 | Product DescriptionScale,BENCHMARK BM1212-50 12x12x4-1/8 50 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18584 | Product DescriptionScale,BENCHMARK BM1212- 100 12x12x4-1/8 100 lb 10ft NTEP III Steel Painted SST Cover | ? | |
| Part #?18586 | Product DescriptionScale,BENCHMARK BM1218-50 12x18x4-1/8 50 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18588 | Product DescriptionScale,BENCHMARK BM1218- 100 12x18x4-1/8 100 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18590 | Product DescriptionScale,BENCHMARK BM1818-50 18x18x5-1/4 50 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18592 | Product DescriptionScale,BENCHMARK BM1818- 100 18x18x5-1/4 100 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18594 | Product DescriptionScale,BENCHMARK BM1818- 150 18x18x5-1/4 150 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18596 | Product DescriptionScale,BENCHMARK BM1818- 200 18x18x5-1/4 200 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18598 | Product DescriptionScale,BENCHMARK BM1818- 250 18x18x5-1/4 250 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18600 | Product DescriptionScale,BENCHMARK BM1818- 300 18x18x5-1/4 300 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18602 | Product DescriptionScale,BENCHMARK BM1818- 500 18x18x5-1/4 500 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18604 | Product DescriptionScale,BENCHMARK BM1818-1K 18x18x5-1/4 1,000 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18606 | Product DescriptionScale,BENCHMARK BM1824-50 18x24x5-1/4 50 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18608 | Product DescriptionScale,BENCHMARK BM1824- 100 18×24-5-1/4 100 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18610 | Product DescriptionScale,BENCHMARK BM1824- 150 18x24x5-1/4 150 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18612 | Product DescriptionScale,BENCHMARK BM1824- 200 18x24x5-1/4 200 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18614 | Product DescriptionScale,BENCHMARK BM1824- 250 18x24x5-1/4 250 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18616 | Product DescriptionScale,BENCHMARK BM1824- 300 18x24x5-1/4 300 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18618 | Product DescriptionScale,BENCHMARK BM1824- 500 18×24-5-1/4 500 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18620 | Product DescriptionScale,BENCHMARK BM1824-1K 18x24x5-1/4 1,000 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18622 | Product DescriptionScale,BENCHMARK BM2424- 100 24x24x5-1/4 100 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18624 | Product DescriptionScale,BENCHMARK BM2424- 150 24x24x5-1/4 150 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18626 | Product DescriptionScale,BENCHMARK BM2424- 200 24x24x5-1/4 200 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18628 | Product DescriptionScale,BENCHMARK BM2424- 250 24x24x5-1/4 250 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18630 | Product DescriptionScale,BENCHMARK BM2424- 300 24x24x5-1/4 300 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18632 | Product DescriptionScale,BENCHMARK BM2424- 500 24x24x5-1/4 500 lb 10ft NTEP III Steel Painted SST Cover | ||
| Part #?18634 | Product DescriptionScale,BENCHMARK BM2424-1K 24x24x5-1/4 1,000 lb 10ft NTEP III Steel Painted SST Cover |
