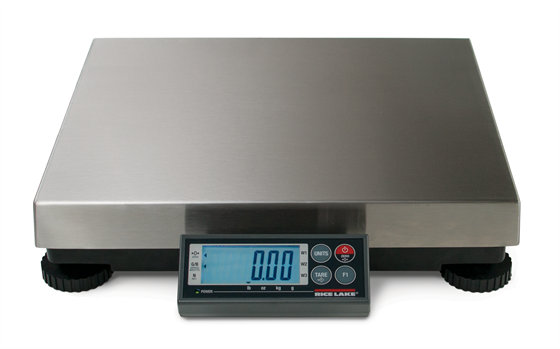

BenchPro BP-P Postal Digital Scale

$0.00

The BenchPro? BP-P Postal Digital Scale is a multi-range, multi-interval scale that accurately weighs packages while easily integrating into small mailrooms.

Download product PDF

Features

  • Simple operation, easy to set up
  • Large six-digit backlight LCD display with 1 in?(29 mm) characters protected by heavy duty tempered glass
  • Powered USB HID point of sale interface ? kg model only
  • Nine-pin RS-232 interface for use with SMA and NCI protocols
  • Four AA alkaline battery operation for portability
  • Gravitational compensation allows for adjustment of factory calibration to meet your local gravity setting, non-approved

Specifications

Dynamic Response:
Response time for stable weight:
0 – 1,000d, 1,000 ms, maximum mean average
1,000d +, 1,500 ms, maximum mean average

Internal Resolution:
500,000 internal count minimum

Overload Protection:
Corner & center overload protection

Power:
In-line Power Supply (included)
Input:?100-240 VAC, +10% -15%, 3-wire w/ground
Standard terminated with USA 3-prong plug
Output:?12 V at .1 Amps DC minimum
Frequency:?50/60 Hz +/-3 Hz, standard
Power Supply Approvals:?UL, CE, EN, CUL
Battery Type:?Four AA alkaline batteries, 6 V, with low battery indication at 4.3 volts (not included)
Battery Life:
50-250 hrs depending on backlight
and auto-shutdown settings

USB HID:
USB 2.0 full speed; Vendor ID: 1C19; Product ID: 0002

Divisions (multi-range):
Kg triple range
0-5 kg x 0.001 kg
5-10 kg x 0.002 kg
10-35 kg x 0.01 kg

Lb/oz dual range
0-7 lb x 0.05 oz
7-70 lb x 0.2 oz

Divisions (multi-interval)?::
Kg triple interval
0-5 kg x 0.001 kg
5-10 kg x 0.002 kg
10-35 kg x 0.01 kg

Lb/oz dual interval
0-7 lb x 0.05 oz
7-70 lb x 0.2 oz

Construction:
Die-cast aluminum load bridge and base housing with stainless steel weight platter

Display:
Minimum key press life of 500,000 cycles,
ABS plastic housing
6 annunciators to indicate Zero, Gross/Brutto, Net, W1/
W2/W3 multi-range
4 buttons: Units, Tare, On/Off, F1

RS-232 Cable (included):
10 ft DB 9-pin male to female, straight pass through and null modem

USB Cable (included):
46 in (1,168.4 mm) A/B type USB cable

Approvals:
NTEP COC # 17-002
Canada Weights and Measures: AM – 6050
CE Marked

Warranty:
Two-year limited warranty

Options

174783 Bracket and Post, Option Bench Pro Series, Model BP 1214
180901 Display,Customer Bench Pro Series, with 68in cable and capacity labels
174784 Remote Display,Bench Pro Series, with 68in cable and capacity labels
183103 Mount,Display Bench Pro Scale 16in Stand
178501 USB Serial Adapter FTDI US232R-100, 3.28 ft, iDIm 100

Models

Part #?187832 Product DescriptionScale, BenchPro Series Model BP-P 1214-35kg capacity triple range Scale with Stainless Steel Weight platter
Part #?192361 Product DescriptionScale, BenchPro Series Model BP-P 1214-70lb capacity dual range Scale with Stainless Steel Weight platter
