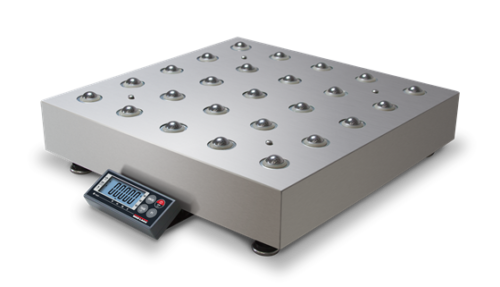

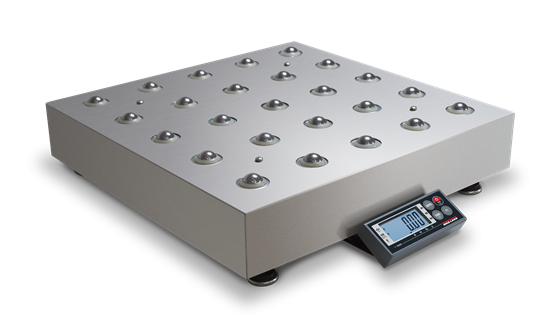

BenchPro BP-SB Ball Top Shipping Digital Scale

$0.00

The BenchPro? BP-SB Ball Top Shipping Digital Scale easily captures the weight of outgoing packages in shipping environments.

Download product PDF
Category:

Features

  • Simple operation, easy to set up
  • Large six-digit backlight LCD display with 1 in (29 mm) characters protected by heavy duty tempered glass
  • Powered USB HID point of sale interface ? kg model only
  • Nine-pin RS-232 interface for use with SMA and NCI protocols
  • Four AA alkaline battery operation for portability
  • Gravitational compensation allows for adjustment of factory calibration to meet your local gravity setting, non-approved

Specifications

Dynamic Response:
Response time for stable weight:
0 – 1,000d, 1,000 ms, maximum mean average
1,000d +, 1,500 ms, maximum mean average

Internal Resolution:
500,000 internal count minimum

Overload Protection:
Corner & center overload protection

Power:
In-line Power Supply (included)
Input:?100-240 VAC, +10% -15%, 3-wire w/ground
Standard terminated with USA 3-prong plug
Output:?12V at .1 Amps DC minimum
Frequency: 50/60 Hz +/-3 Hz, standard
Approvals:?UL, CE, EN, CUL

USB HID:
USB 2.0 full speed; Vendor ID: 1C19; Product ID: 0002

Construction:
Powder coat painted mild steel base plate and load bridge with stainless steel ball top shroud

Display:
Minimum key press life of 500,000 cycles,
ABS plastic housing
6 annunciators to indicate Zero, Gross/Brutto, Net, W1/W2/W3 multi-range
4 buttons: Units, Tare, On/Off, F1

RS-232 Cable (included):
10 ft DB 9-pin male to female, straight pass through and null modem

USB Cable(included):
46 in (1168.4 mm) A/B type USB cable

Approvals:
NTEP COC # 17-002
Canada Weights and Measures: AM – 6050

CE Marked
Warranty:
Two-year limited warranty

Options

180901 Display,Customer Bench Pro Series, with 68in cable and capacity labels
174784 Remote Display,Bench Pro Series, with 68in cable and capacity labels
183103 Mount,Display Bench Pro Scale 16in Stand
178501 USB Serial Adapter FTDI US232R-100, 3.28 ft, iDIm 100

Models
Part #?182995 Product DescriptionScale, Bench Pro Series Model BP 1216-75S, 150 x 0.05lb/75 x 0.02kg, Ball Top Weight Platter, 12 x 16 inch Dimensions
Part #?182393 Product DescriptionScale, Bench Pro Series Model BP 1818-50S, 100 x 0.02lb/50 x 0.01kg, Ball Top Weight Platter, 18 x 18 inch Dimensions
Part #?182380 Product DescriptionScale, Bench Pro Series Model BP 1818-75S, 150 x 0.05lb/75 x 0.02kg, Ball Top Weight Platter, 18 x 18 inch Dimensions
Part #?182384 Product DescriptionScale, Bench Pro Series Model BP 1818-150S, 300 x 0.1 lb/150 x 0.05kg, Ball Top Weight Platter, 18 x 18 inch Dimensions
Part #?182397 Product DescriptionScale, Bench Pro Series Model BP 2020-150S, 300 x 0.1 lb/150 x 0.05kg, Ball Top Weight Platter, 20 x 20 inch Dimensions
Part #?182401 Product DescriptionScale, Bench Pro Series Model BP 2424-150S, 300 x 0.1 lb/150 x 0.05kg, Ball Top Weight Platter, 24 x 24 inch Dimensions
