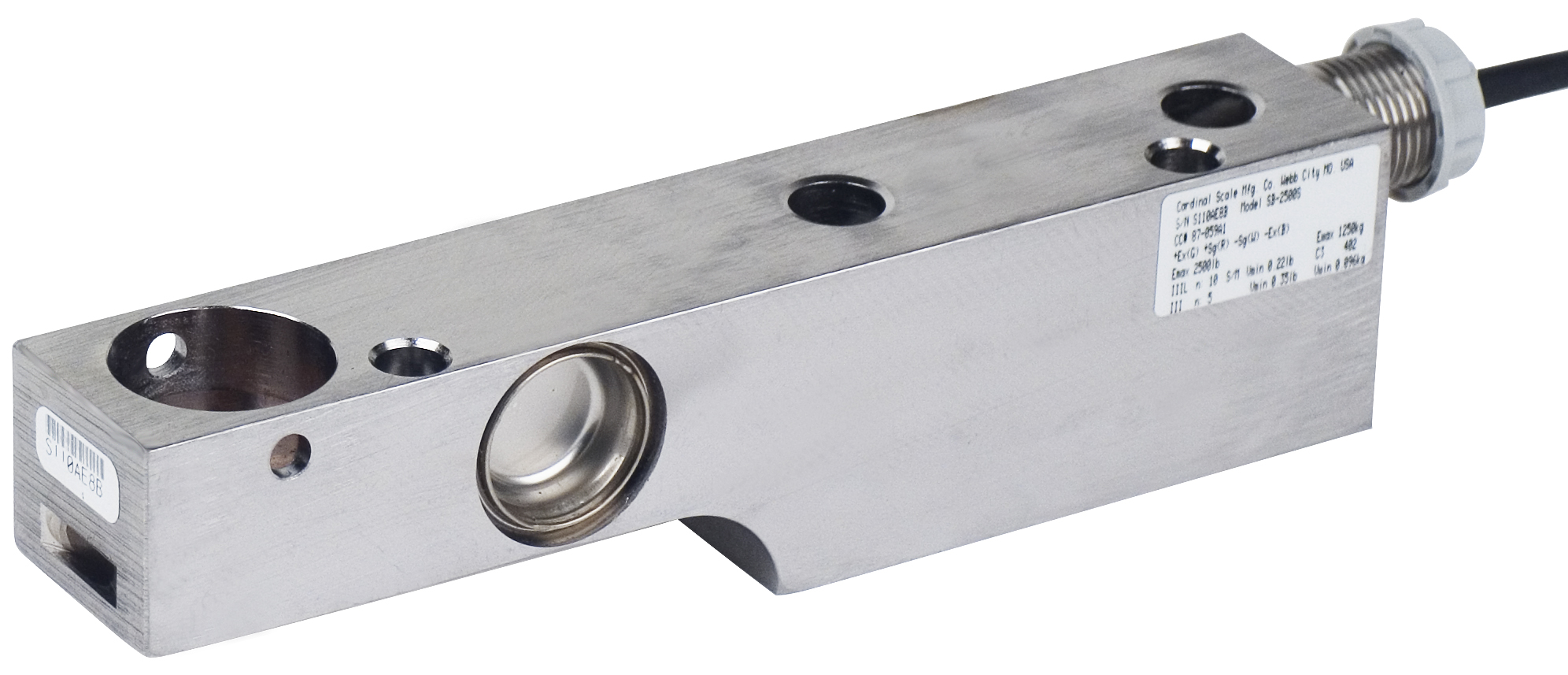

Cardinal model SB shear beam load cell

$0.00

Cardinal?s model SB shear beam load cells promote a variety of applications, such as low-profile platform scales, tank and hopper weighing, and other process control systems. Constructed of high-grade stainless steel, these load cells offers strength and protection from caustic or corrosive environments. Provided with the load cell are mounting holes for securing the cell, and a 6 m integral multiconductor-shielded cable secured by a compression strain relief seal. These cells are welded closed, providing superior waterproofing, while remaining flexible over the life of the load cell. NTEP legal-for-trade and OIML certified. Available in multiple capacities.

Download product PDF
Categories: ,

Features

  • Environmentally-Sealed
  • IP68 Protection Class
  • NTEP Legal for Trade
  • OIML Certified
  • Precision Engineering
  • Stainless Steel
  • VCAP Certified

Specifications

NTEP Approval:?87-059
OIML Approval:?R60/1991-DK-97.02
Accuracy Class:?III / IIIL – C3
Minimum Dead Load:?0 lb / 0 kg
Safe Load Limit:?150% R.C.
Ultimate Load:?300% R.C.
Rated Output:?2mV/V
Cable Length:?20 ft / 6 m
Material:?Stainless Steel
Capacities Available:?2,500 lb (1,130 kg), 5,000 lb (2,260 kg), 10,000 lb (4,500 kg), and 20,000 lb (9,000 kg)

Models



SB-2500S Load Cell, Shear Beam, 2,500 Lb, Stainless Steel


SB-5000S Load Cell, Shear Beam, 5,000 Lb, Stainless Steel
SB-10000S Load Cell, Shear Beam, 10,000 Lb, Stainless Steel
SB-20000S Load Cell, Shear Beam, 20,000 Lb, Stainless Steel
