Cardinal model SP single point load cell

$0.00

Cardinal?s model SP single point load cells are designed for light to medium capacity weighing operations such as bench or counter scales. The SP models 6L through 100L are fabricated from aircraft-quality aluminum and feature standard measurement threads; while the SP models 200LM through 1000LM are fabricated from stainless steel and feature metric threads. The load cell can be mounted directly to the weighing platform, thereby eliminating flexures, pivots, bearings and mechanical levers. Includes 7-ft-long integral multiconductor cable secured by a strain relief seal.

Download product PDF
Categories: ,

Features

  • Environmentally-Sealed
  • IP65 Protection Class
  • Moisture-proof Barrier
  • OIML Certified
  • Precision Engineering
  • Stainless Steel
  • VCAP Certified

Specifications

OIML Approval:?R60/1991-NL-00.02
Accuracy Class:?C3
Rated Output:?2mV/V
Protection Class:?IP-65
Material:?Stainless steel

Models



SP-6L Load Cell, Single Point, 6 Lb, Aluminum Alloy
SP-10L Load Cell, Single Point, 10 Lb, Aluminum Alloy
SP-15L Load Cell, Single Point, 15 Lb, Aluminum Alloy

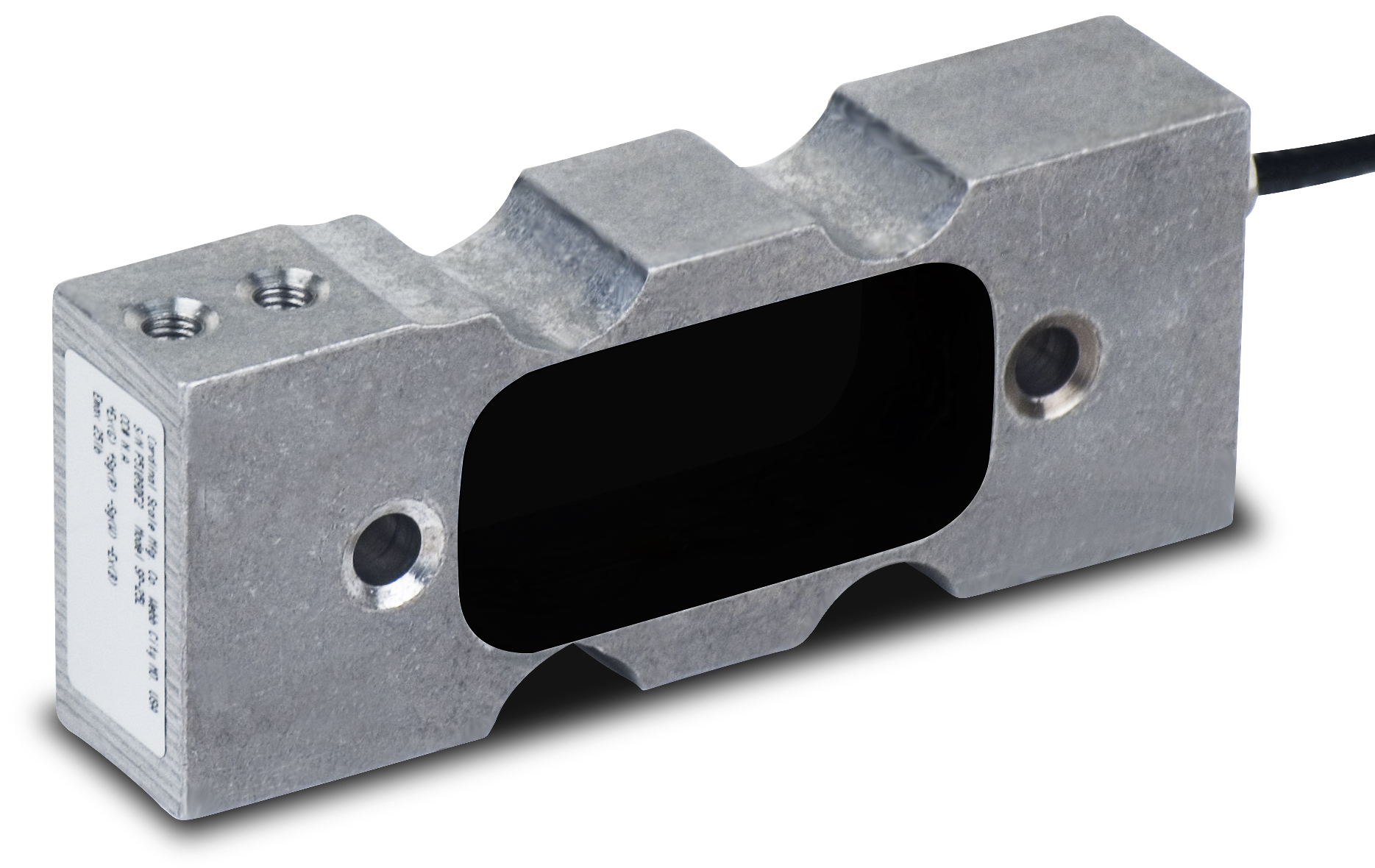

SP-25L Load Cell, Single Point, 25 Lb, Aluminum Alloy
SP-50L Load Cell, Single Point, 50 Lb, Aluminum Alloy
SP-100L Load Cell, Single Point, 100 Lb, Aluminum Alloy
SP-200LM Load Cell, Single Point, 200 Lb, Stainless Steel

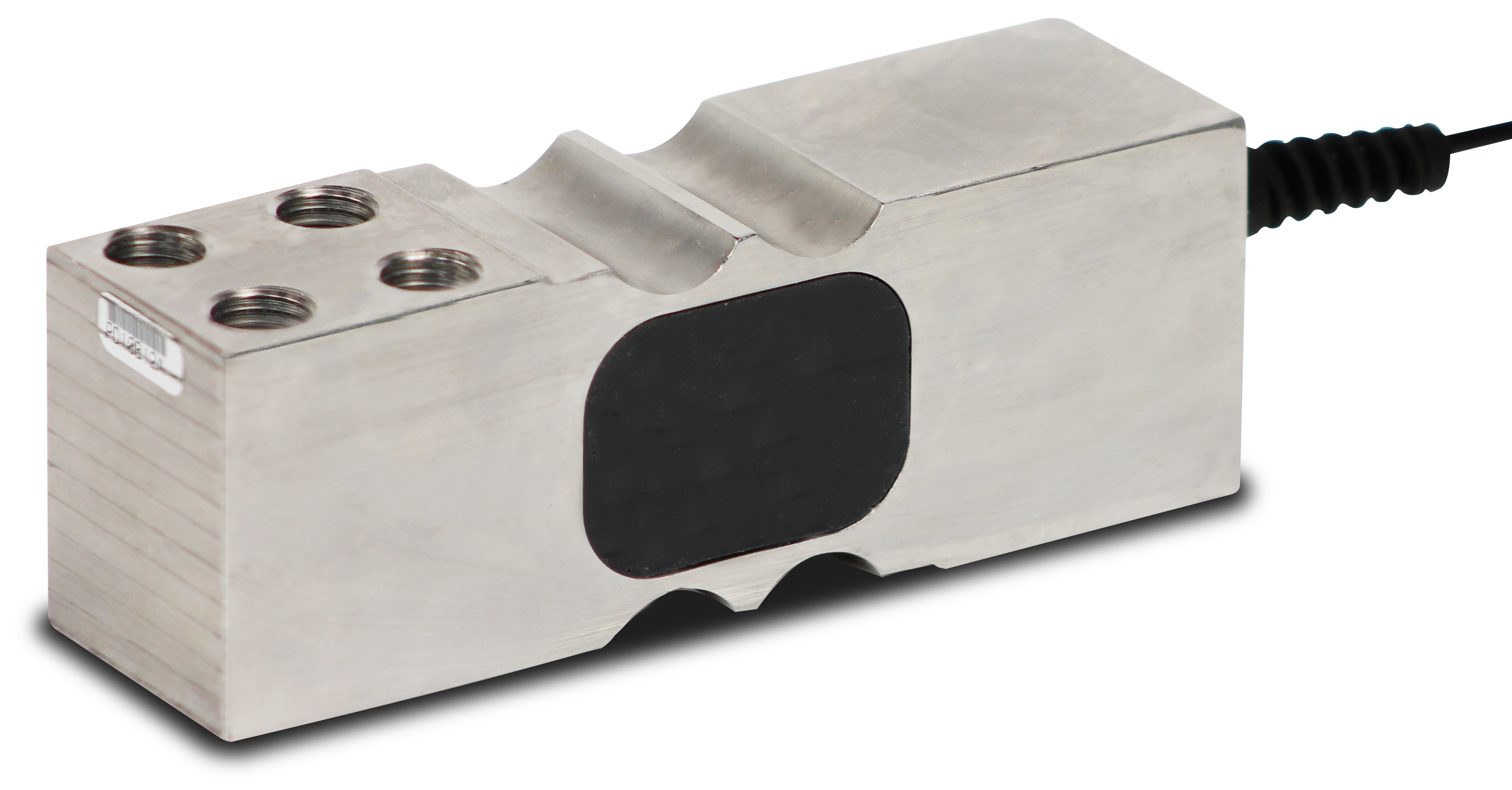

SP-500LM Load Cell, Single Point, 500 Lb, Stainless Steel
SP-1000LM Load Cell, Single Point, 1000 Lb, Stainless Steel
