Cardinal SSPW

$0.00

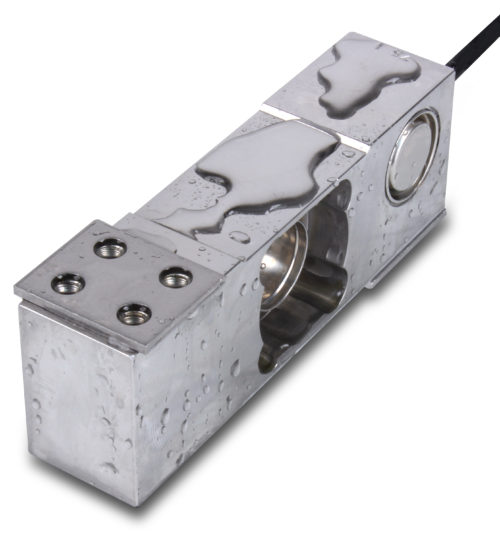

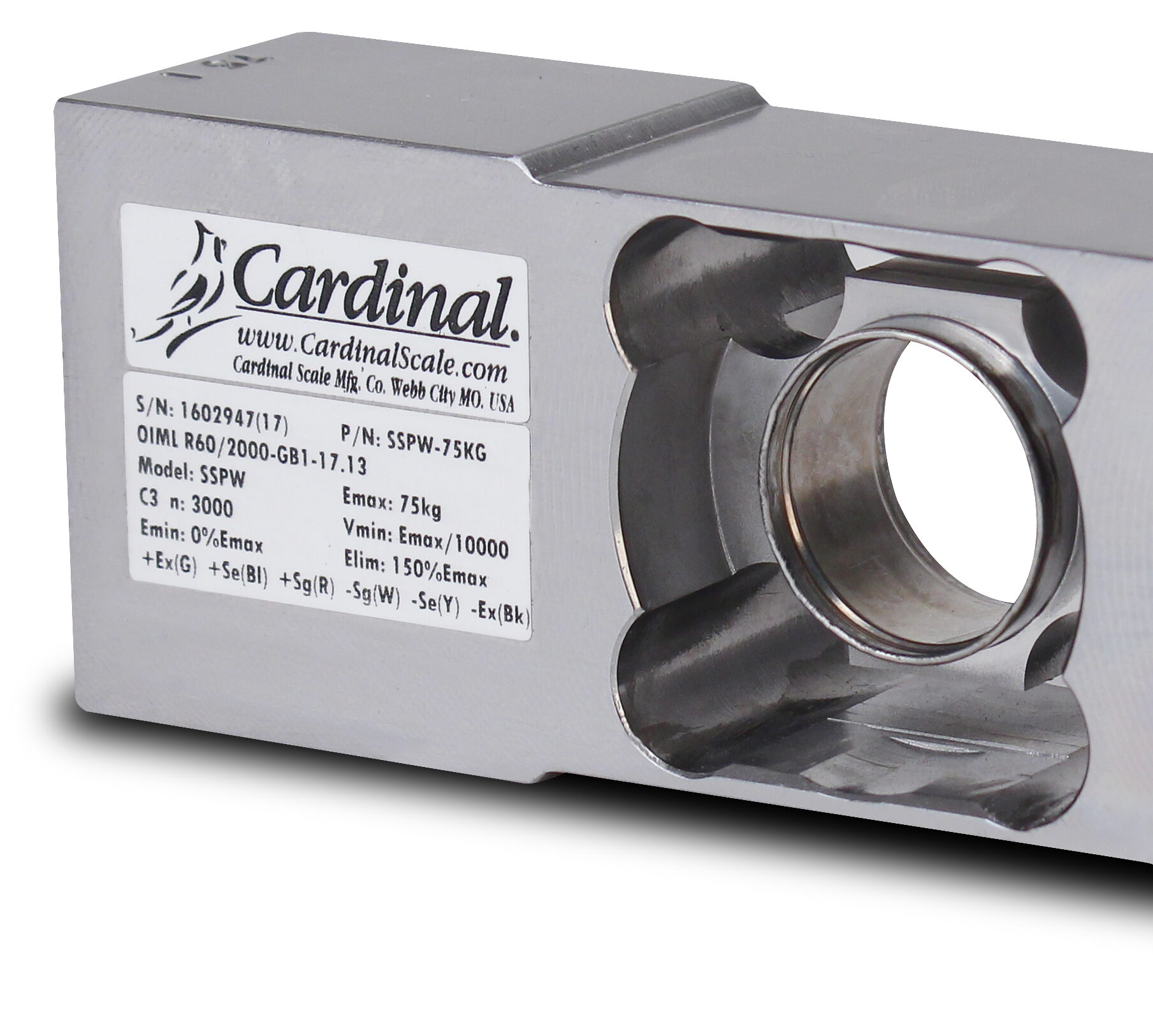

Cardinal Scale?s SSPW series stainless steel double bending beam load cells have a low profile design that is hermetically sealed and fully welded at IP69K rating. The IP69K ingress protection rating means that these load cells can withstand high-pressure, high-temperature washdowns. They are made specifically for light to medium weighing applications and come in 20-kg/44-lb and 75-kg/165-lb capacities. The SSPW series load cells are rated at 3,000 divisions OIML R60 class C and constructed of high-quality washdown stainless steel. They offer high accuracy with off-center loads for applications such as direct platforms up to 600 x 600 mm / 24 x 24 in and filling scales. The SSPW series load cells come with 5 m/16 ft load cell cable provided and they are NTEP and OIML certified.

Download product PDF
Categories: ,

Features

  • 20 kg / 44 lb and 75 kg / 165 lb Capacities Available
  • 3000 Divisions
  • 5 m / 16 ft Load Cell Cable
  • Designed for Light to Medium Weighing
  • Double Bending Beam Load Cells
  • Hermetically Sealed and Fully Welded
  • High Accuracy with Off-Center Loads
  • IP69K Rated – Highest Protection Rating Possible
  • OIML and NTEP Certified
  • Stainless Steel

Specifications

Capacity:?SSPW-20KG: 20 kg / 44 lb; SSPW-75KG: 75 kg / 165 lb
Accuracy Class:?SSPW-20KG: 3,000 n. OIML; SSPW-75KG: 4,000 / 3,000 n. OIML
Minimum Division:?SSPW-20KG: 2 g; SSPW-75KG: 7.5 g
Service Load:?SSPW-20KG: 30 kg; SSPW-75KG: 112.5 kg
Construction:?Stainless Steel
Ingress Protection Rating:?IP69K
NTEP Certification:?17-136
OIML Certification:?R60/2000-GB1-17.13
Minimum Dead Load:?0%
Service Load:?150% (only for central load on the load cell; not for off-center loads)
Safe Load Limit:?200% (only for central load on the load cell; not for off-center loads)
Total Error:?< ?0.017 %Sn
Repeatability Error:?< ?0.01%Sn
Temperature Effect On Zero:?< ?0.01%Sn/5 ?C
Temperature Effect On Sensitivity:?< ?0.006%Sn/5 ?C
Creep Error (30 minutes):?< ?0.016%Sn
Temperature Compensation:?< ?0.016%Sn
Temperature Limits:?-20 to +70?C
Nominal Sensitivity (Sn):?2 ?10%mV/V
Minimum Input Voltage:?5V
Maximum Input Voltage:?15V
Input Impedence:?400 ?20?
Output Impedence:?350 ?3?
No Load Output:?< ?2%Sn
Insulation Resistance:?> 5000M?
Maximum Deflection (at Ln):?0.3-0.5mm
Net Weight:?0.9 kg / 2 lb
Shipping Weight:?1.8 kg / 4 lb

Models

SSPW-20KG LOAD CELL – STAINLESS, SINGLE POINT, WASH DOWN, 20KG, IP-68/69K
SSPW-75KG LOAD CELL – STAINLESS, SINGLE POINT, WASH DOWN, 75KG, IP-68/69K
