Cardinal THBC electronic load cell kit

$0.00

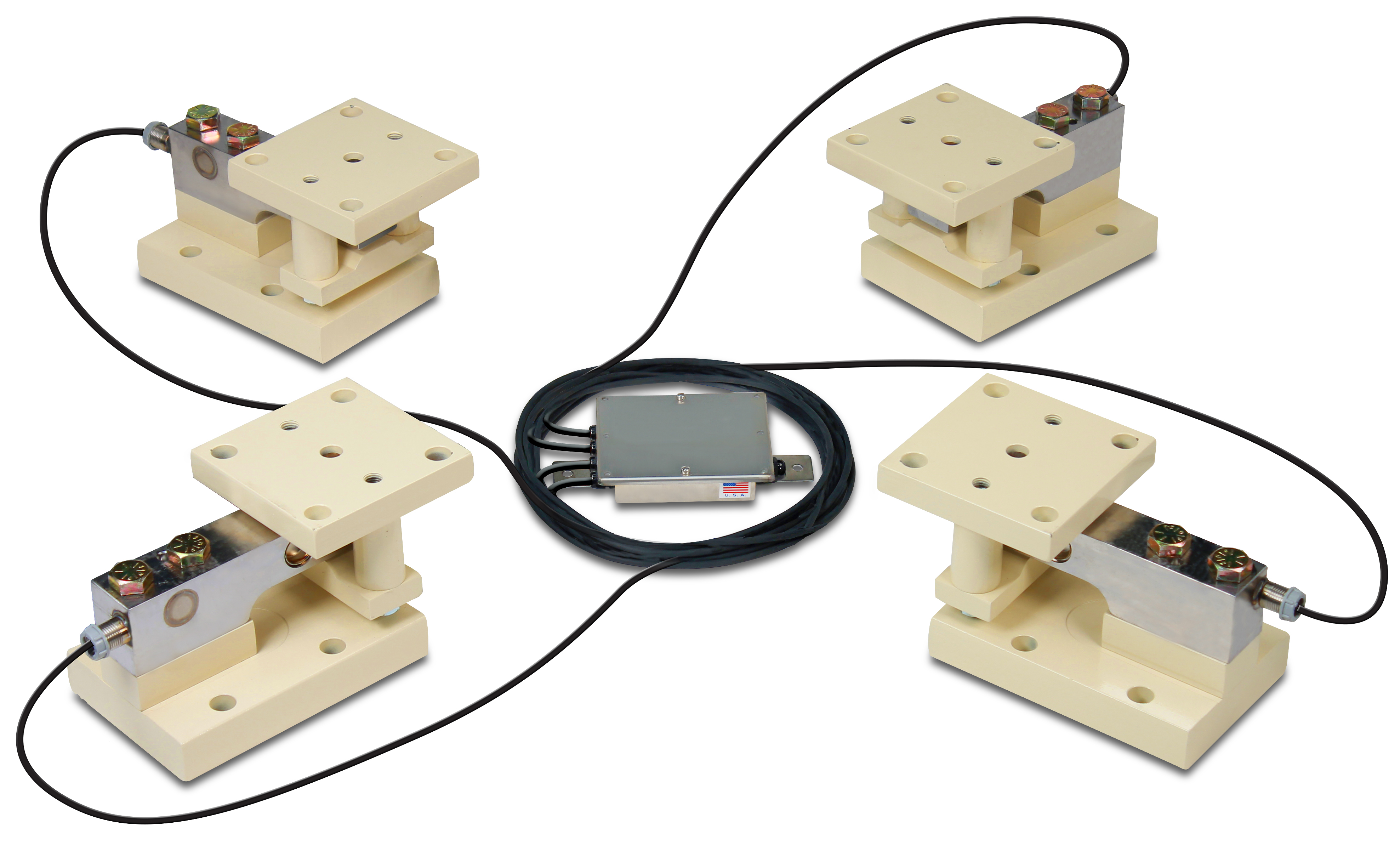

Cardinal Scale?s THBC electronic load cell kits are ideal for weighing tanks, hoppers, mixers, and conveyors. These self-checking load cell kits are available with mild steel or stainless steel stands, system capacities ranging from 7,500 lb (3,400 kg) up to 200,000 lb (90,700 kg), and stainless steel waterproof load cells. The THBC kits are ideal for medium-to-heavy capacity tank and hopper weighing, new or existing installations, and accommodate multi-legged tanks with up to 10 legs. They offer an easy-to-install, low-profile, bolt-down design. Each kit comes complete with 3 or 4 stainless steel load cells, self-checking load cell stands, load cell cable, and a stainless steel junction box. Special self-centering load buttons protect against offset side loads. The rugged, environmentally-sealed SB series shear beam load cells, also manufactured by Cardinal Scale, are NTEP, OIML, and VCAP certified.

Download product PDF
Category:

Features

  • Accommodates Multi-Legged Tanks with up to 10 Legs
  • Easy to Install
  • Ideal for New or Existing Installations
  • Mild or Stainless Steel Stands
  • NTEP-Certified Stainless Steel Waterproof Load Cells
  • Precision Engineering
  • Rugged Bolt-in-Place Design
  • Self-Checking Stands
  • Special Self-Centering Load Buttons Protect Against Offset Side Loads
  • Stainless Steel Load Cells
  • System Capacities Ranging from 7500 lb (3400 kg) up to 200000 lb (90700 kg)

Specifications

Model:?THBC series
Capacities:?Standard model capacities ranging from 7,500 lb (3,400 kg) up to 80,000 lb (36,000 kg)
Load Cell Type:?Stainless steel SB series shear beam load cells manufactured by Cardinal Scale
Load Cell Cable:?20 ft / 6 m
Stand Type:?Self-checking, bolt-down design
Stand Construction:?Stainless steel or powder-painted mild steel
Junction Box Type:?Stainless steel 4 cell trim box
Junction Box Cable Length to Indicator:?30 ft / 9 m with 9-pin D connector
Included:?Each kit consists of 3 or 4 self-checking stand assemblies, 3 or 4 stainless steel load cells, load cell cable, and 1 stainless steel NEMA 4 junction box.
Indicators:?A wide selection of digital weight indicators are also available from Cardinal Scale
Applications:?Load cell assemblies available for tank, hopper, mixer, and conveyor weighing

Models



THBC2.5-3 Tank Scale, 3 Cell, 7,500 Lb Capacity, Mild Steel
THBC5-3 Tank Scale, 3 Cell, 15,000 Lb Capacity, Mild Steel
THBC10-3 Tank Scale, 3 Cell, 30,000 Lb Capacity, Mild Steel
THBC20-3 Tank Scale, 3 Cell, 60,000 Lb Capacity, Mild Steel
THBCS2.5-3 Tank Scale, 3 Cell, 7,500 Lb Capacity, Stainless Steel
THBCS5-3 Tank Scale, 3 Cell, 15,000 Lb Capacity, Stainless Steel
THBCS10-3 Tank Scale, 3 Cell, 30,000 Lb Capacity, Stainless Steel
THBCS20-3 Tank Scale, 3 Cell, 60,000 Lb Capacity, Stainless Steel
THBC2.5-4 Tank Scale, 4 Cell, 10,00 Lb Capacity, Mild Steel
THBC5-4 Tank Scale, 4 Cell, 20,000 Lb Capacity, Mild Steel
THBC10-4 Tank Scale, 4 Cell, 40,000 Lb Capacity, Mild Steel
THBC20-4 Tank Scale, 4 Cell, 80,000 Lb Capacity, Mild Steel
THBCS2.5-4 Tank Scale, 4 Cell, 10,00 Lb Capacity, Stainless Steel
THBCS5-4 Tank Scale, 4 Cell, 20,000 Lb Capacity, Stainless Steel
THBCS10-4 Tank Scale, 4 Cell, 40,000 Lb Capacity, Stainless Steel
THBCS20-4 Tank Scale, 4 Cell, 80,000 Lb Capacity, Stainless Steel
THBC50K Stand Assembly, DB Load Cell, Single Cell
THBC50K-4 Stand Assembly, DB Load Cell, 4 Cell, J- Box
THBC50K-6 Stand Assembly, DB Load Cell, 6 Cell, J-Box, Section Seal Box
THBC50K-8 Stand Assembly, DB Load Cell, 8 Cell, J-Box, Section Seal Box, Trim Box
