Cardinal TSSP

$0.00

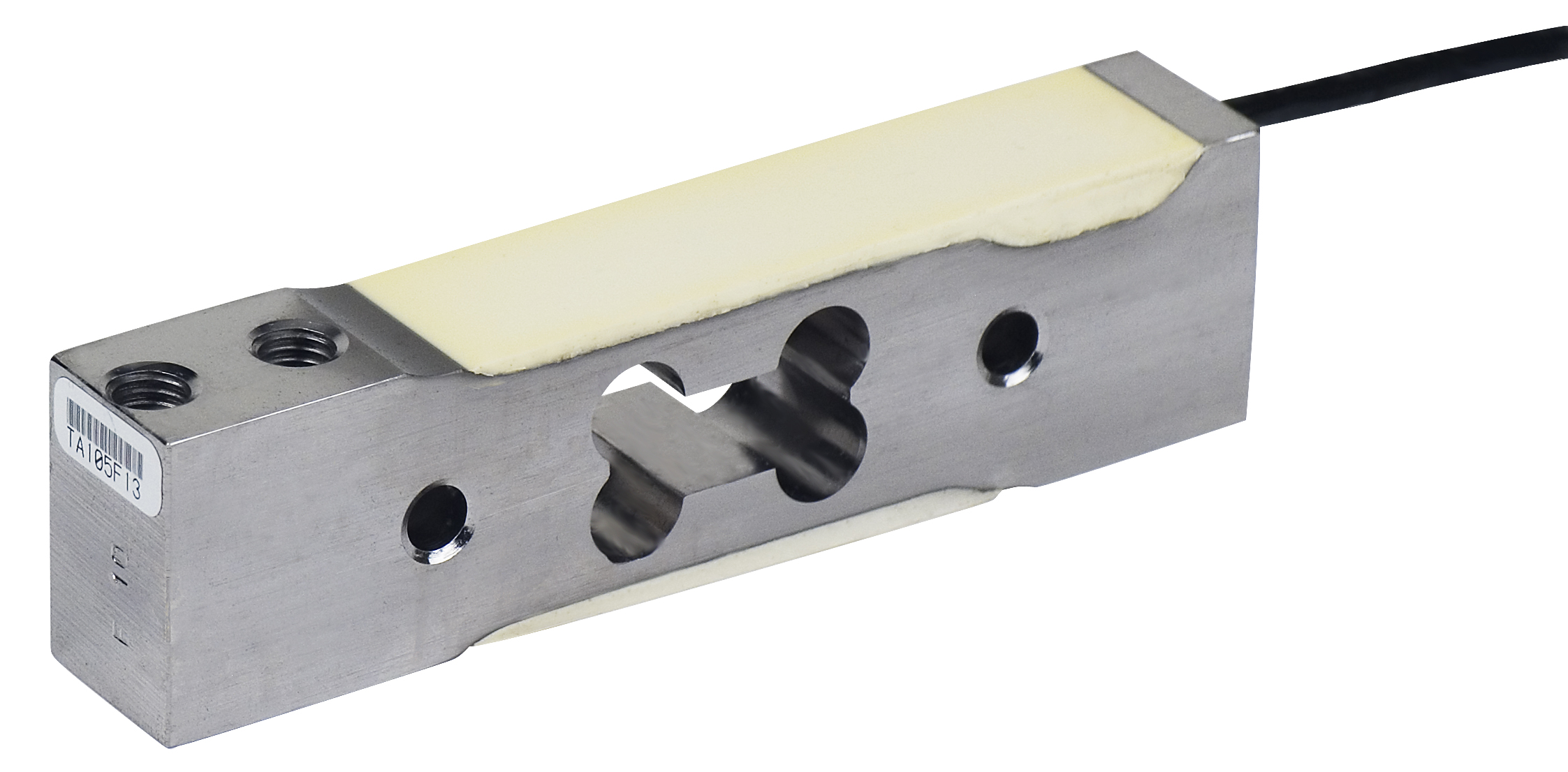

Cardinal Scale?s TSSP specialty single point series is a high performance and low cost load cell for use in bench scales, medical scales, and a variety of other applications. These low-profile load cells are constructed from high-grade stainless steel and are easy to install. Available in capacities from 45 to 440 lb / 20 to 200 kg, they feature integral mounting boss. All critical components and wiring are encapsulated to protect against moisture and to insure stable operation of the TSSP in harsh environments. Interchangeable with most other load cells of their type. OIML certified.

Download product PDF
Categories: ,

Features

  • Environmentally-Sealed
  • IP65 Protection Class
  • Moisture-proof Barrier
  • OIML Certified
  • Precision Engineering
  • Stainless Steel
  • VCAP Certified

Specifications

OIML Approval:?R60/1991-NL-00.02
Accuracy Class:?C3
Rated Output:?2mV/V
Protection Class:?IP-65
Material:?Stainless steel

Models



TSSP-20KG Load Cell, Single Point, 20 Kg, Stainless Steel
TSSP-50KG Load Cell, Single Point, 50 Kg, Stainless Steel
TSSP-75KG Load Cell, Single Point, 75 Kg, Stainless Steel
TSSP-100KG Load Cell, Single Point, 100 Kg, Stainless Steel
