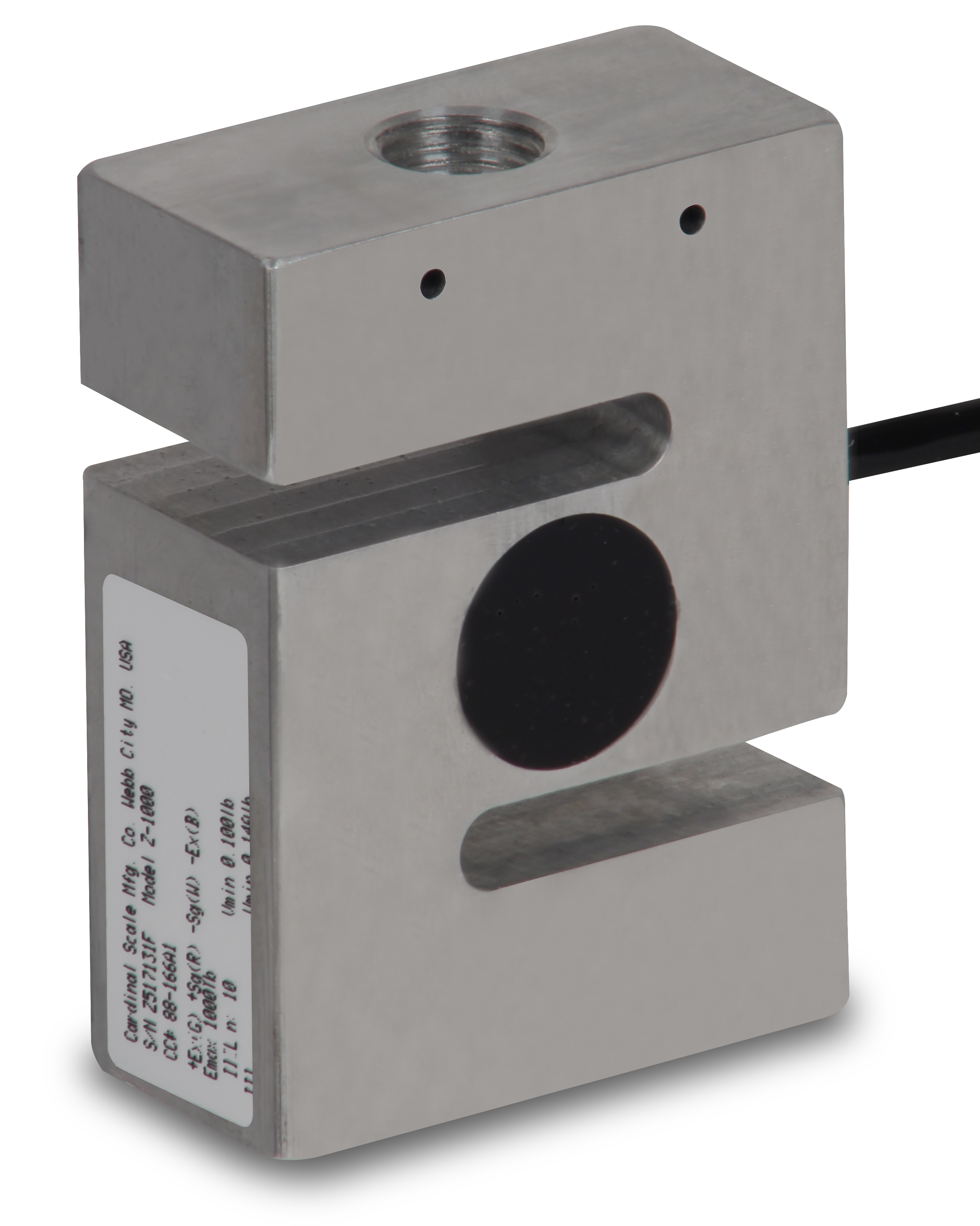

Cardinal waterproof model Z

$0.00

Cardinal?s waterproof model Z aluminum tension load cells are ideally suited for single load cell tension applications. Fabricated from aircraft-quality aluminum alloy, this cell offers a cost-effective solution to many tension applications. Each load cell has threaded holes on each end for hanger assemblies (metric threads available on most models) and a strain relief seal. These load cells are potted with a proprietary sealant that provides for superior water protection and, at the same time, remains flexible over the life of the load cell. Available capacities range from 50 lb / 22.68 kg to 1,000 lb / 453.6 kg. NTEP legal-for-trade.

Download product PDF
Categories: ,

Features

  • Aluminum Construction
  • Environmentally-Sealed
  • IP67 Protection Class
  • Moisture-proof Barrier
  • Precision Engineering
  • VCAP Certified

Specifications

NTEP Approval:?88-166A1
Rated Output:?2?5% mV/V
Cable Length:?9 m
Material:?Aluminum
Minimum Dead Load:?2.27 and 4.5 kg
Safe Load Limit:?150% R.C.
Ultimate Load:?300% R.C.

Models



Z-50 Load Cell, Tension, 50 Lb, Aluminun Alloy
Z-100 Load Cell, Tension, 100 Lb, Aluminun Alloy
Z-250 Load Cell, Tension, 250 Lb, Aluminun Alloy
Z-500 Load Cell, Tension, 500 Lb, Aluminun Alloy
Z-1000 Load Cell, Tension, 1,000 Lb, Aluminun Alloy
