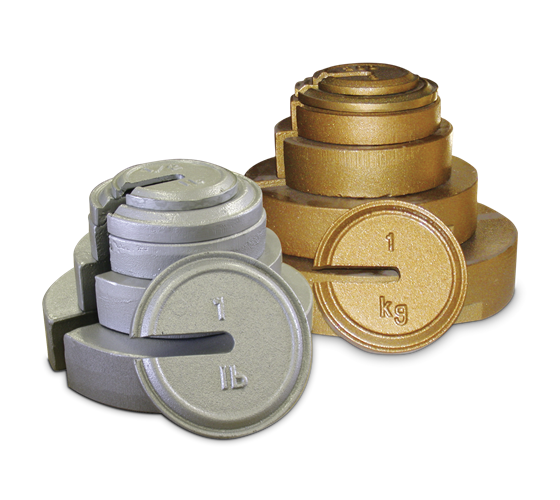

Cast Iron Calibration Weights – Slotted Interlocking and Hanger Weights

$0.00

Slotted and hanger cast iron calibration weights are available in ASTM Class 6 and Class 7.

Download product PDF
Category:

Features

  • Slotted weights and hangers for suspended weighing
  • Nominal value marked on weight
  • Weight capacities of 10 kg/20 lb and up meet NIST Handbook 105-1 and Handbook 44 specifications
  • Metric weights designated by gold paint
  • Avoirdupois weights (pound) designated by silver paint
  • Serial numbers may be stamped on weights (optional)

Specifications

Classes Available:

  • NIST Class F
  • ASTM Class 6 and 7

Applications:

  • Field standards for testing industrial devices Class III, Class IIlL or IIII
  • Testing for non-marked scales without Class designation
  • Verifying scales are within specified accuracy and tolerances

Resources / Downloads

Options

36092 Form,Statement of Accuracy
25836 Serial Number

Models

12831 Weight,Slotted Interlocking 20lb 8-1/8Dia x 1-7/8H x 3/4 Slot Width ASTM Class 6 Cast Iron Painted
12856 Weight,Slotted Interlocking 50lb 10-1/2Dia x 2-1/2H x 9/16 Slot Width ASTM Class 6 Cast Iron Painted
40828 Weight,Slotted Interlocking 100lb 17Dia x 1-15/16H x 1 Slot Width ASTM Class 6 Cast Iron Painted
