CG-23-SSW-02-C20 | Stainless Steel Welded Single Ended Beam Load Cell

$0.00

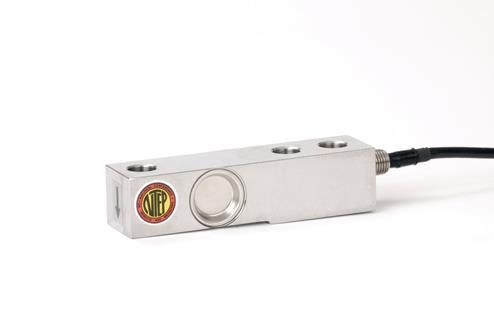

Stainless steel welded single ended beam load cell commonly used in small tanks, hoppers, platforms and floor scales. 2 mV/V. Threaded hole. 20′ common cable. NTEP capacities 1K-10K.

Download product PDF
Category:

Features

Interchangeable Products

  • Rice Lake RL35082
  • Rice Lake RLHTO
  • Sensortronics 65083S
  • Toledo 715 Series
  • Toledo TB600531 2.5K

Models

CG-23-SSW-02-C20 1K CG-23-SSW-02-C20 1K 2mv/v ..Stainless Steel Welded Load Cell..NTEP 1:5000, Class III-M..
CG-23-SSW-02-C20 1.5K CG-23-SSW-02-C20 1.5K 2mv/v ..Stainless Steel Welded Load Cell..NTEP 1:5000, Class III-M
CG-23-SSW-02-C20 2K CG-23-SSW-02-C20 2K 2mv/v ..Stainless Steel Welded Load Cell..NTEP 1:5000, Class III-M
CG-23-SSW-02-C20 2.5K CG-23-SSW-02-C20 2.5K 2mv/v ..Stainless Steel Welded Load Cell..NTEP 1:5000, Class III-M
CG-23-SSW-02-C20 4K CG-23-SSW-02-C20 4K 2mv/v ..Stainless Steel Welded Load Cell..NTEP 1:5000, Class III-M
CG-23-SSW-02-C20 5K le CG-23-SSW-02-C20 5K le 2mv/v ..Stainless Steel Welded Load Cell..NTEP 1:5000, Class III-M
CG-23-SSW-02-C20 5K se CG-23-SSW-02-C20 5 Kse 2mv/v ..Stainless Steel Welded Load Cell..NTEP 1:5000, Class III-M
CG-23-SSW-02-C20 10K CG-23-SSW-02-C20 10K 2mv/v ..Stainless Steel Welded Load Cell..NTEP 1:5000, Class III-M
