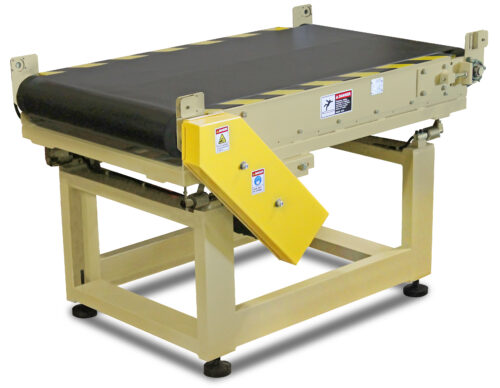

Cardinal Scale’s CIM Series Continuous In-Motion Checkweighers keep production lines humming, reducing labor costs, and providing accurate weights of each package to .05 lb increments. The CIM series features standard anti-static polyester fabric or optional food-grade conveyor belts with 1/2 horsepower AC motor fixed speeds of up to 120 ft/37 m per minute. The CIM series is available in 100 lb x .05 lb or 200 lb x .1 lb capacities, two different sizes, and two different types of indicators. The CIM series features enter and exit photo eyes, weight or zone classification modes, weight output to printer, simple setup and product changeover, average weight sampling, and they are height adjustable ±2 inches. Options include five-zone checking, variable speed controller, tower light with buzzer, alternate motor, and rejectors (takeaway arms to direct “off” weights to a separate area).
Mild Steel Construction with Baked-on Powder Paint
Optional Rejector Arms for Off Weights
Optional Variable Speed Motor
Package Weights up to 200 lb / 90 kg
Reject Output for Out-of-Tolerance Products
Simple Setup and Product Changeover
Two Different Sizes
Weight or Zone Classification Modes
Weight Output to Printer
Specifications
Scale Construction: Mild steel, baked-on tan powder-coat paint Two Sizes: 48 in L x 24 in W x 30 in H / 122 cm L x 61 cm W x 81 cm H or 36 in L x 24 in W x 30 in H / 91 cm L x 61 cm W x 81 cm H Power: 100 to 240 VAC, 50/60 Hz (225 indicator) or 90 to 264 VAC, 50/60 Hz (825 indicator) Operating Temperature: 14º to 104º F (-10º to +40º C) Indicator Enclosure: IP66 stainless steel enclosure Belt Construction: Anti-static polyester fabric standard. Optional food-grade conveyor belt. Belt Speed: Up to 120 ft (37 m) per minute Capacities: 100 lb x 0.05 lb / 45 kg x 0.02 kg or 200 lb x 0.1 lb / 90 kg x 0.05 kg Indicators: 225 Navigator indicator or 825 Spectrum indicator Height Adjustable: ±2 inches Motor: 1/2 Horsepower AC fixed speed motor requires 230 / 460 VAC 3 PH, 50/60 Hz (motor starter provided by other) Load Cell: CB stainless steel bellows type load cells Options: Printer, five-zone checking, food-grade conveyor belt, variable speed controller, tower light with buzzer, rejectors to direct off weights to a separate area, and alternate motor and controller power
Models
CIM100-4824-225
Checkweigher, In-Motion, 100 Lb Capacity, 48″ x 24″ Belt w/ 225 Indicator
Call For Pricing
CIM100-4824-825
Checkweigher, In-Motion, 100 Lb Capacity, 48″ x 24″ Belt w/ 825 Indicator
Call For Pricing
CIM100-3624-225
Checkweigher, In-Motion, 100 Lb Capacity, 36″ x 24″ Belt w/ 225 Indicator
Call For Pricing
CIM100-3624-825
Checkweigher, In-Motion, 100 Lb Capacity, 36″ x 24″ Belt w/ 825 Indicator
Call For Pricing
CIM200-4824-225
Checkweigher, In-Motion, 200 Lb Capacity, 48″ x 24″ Belt w/ 225 Indicator
Call For Pricing
CIM200-4824-825
Checkweigher, In-Motion, 200 Lb Capacity, 48″ x 24″ Belt w/ 825 Indicator
Call For Pricing
CIM200-3624-225
Checkweigher, In-Motion, 200 Lb Capacity, 36″ x 24″ Belt w/ 225 Indicator
Call For Pricing
CIM200-3624-825
Checkweigher, In-Motion, 200 Lb Capacity, 36″ x 24″ Belt w/ 825 Indicator
