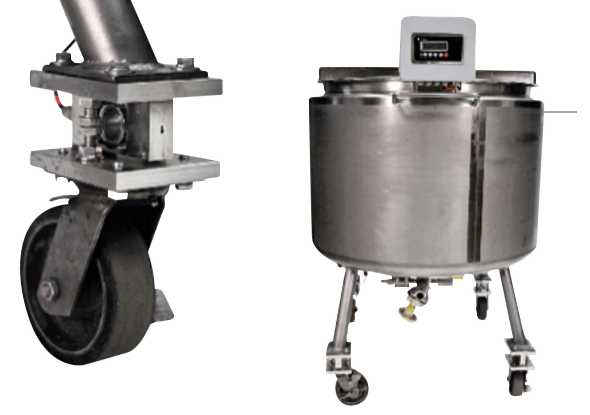

The new Mobile Process Weighing System allows you to accurately weigh and batch in portable tanks or vessels to speed up production time, improve safety, and to minimize bacteria collection points found in traditional floor scales. This system consists of special load cells that simply bolt between the tank leg and the standard swivel casters already on the vessel, utilizing the standard 6-inchcaster bolt pattern with no modifications to the tank needed. The secret is the “moment corrected” technology inside the load cells that compensates for the inherent pinching action of the swivel casters and provides accurate weighments even on floors that are not level.Accuracy of +-0.1% when properly installed and used on a level floor. These load cells may be used with a variety of different weighing indicators depending upon the application and data collection requirements. This disruptive and proven technology is used globally with hundreds of installations in multiple industries such as,
-Aerospace & Aviation
-Manufacturing
-Chemical & Petrochemical
-Medical & Pharmaceutical
-Food & Beverage
-Plastics & Polymers
Technology
“Moments Correction” compensate for pinching action from swivel casters for more accuracy.
Accurate to +/-0.5 kgs while being moved even on unlevel floors.
Efficiency
Reduce mix/weigh cycle time up to 35%.
Eliminate individual weighments on static scales.
Design
No modifications needed bolts directly between tank leg and caster using standard 6-inch caster bolt pattern.
Remove bacteria collection points found on traditional floor or pit mounted scales.
Safety
Eliminate operator injuries due to moving heavy tanks up and down floor scale ramps.
Remove trip hazards found on traditional floor scales.
Stainless steel tension link ideal for high capacity applications – rated from 2.2k lb to 264k lb (120t).
