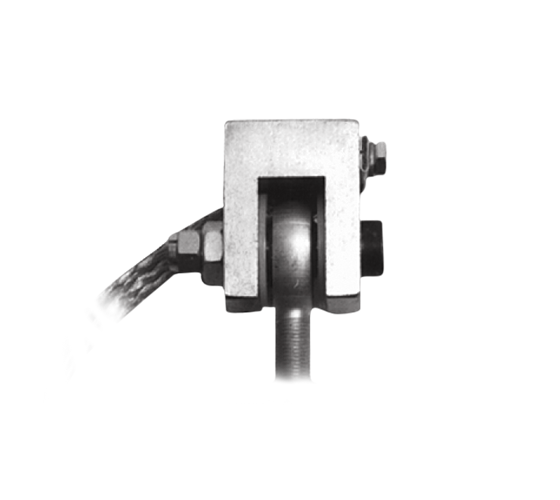

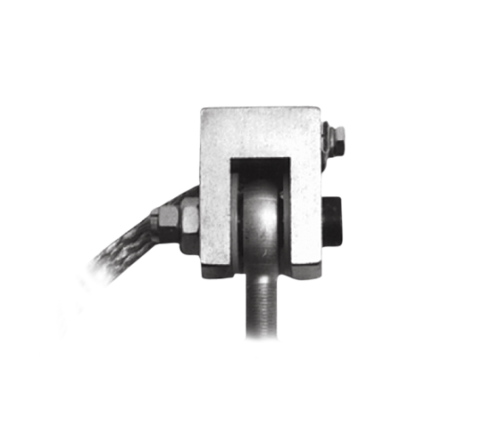

Clevis Mount Assemblies
$0.00
As a part of a fastener, a clevis provides a method of allowing rotation in some axes while restricting rotation in others.
Download product PDF
Features
- Mild steel
- Assembly used in the ITCM
- Adapts rod to rod-end ball joint
- Provides electrical isolation for load cell protection
- Elimination of unwanted side loads
- Optional stainless steel provides enhanced corrosion resistance
Models
| Part #?17792 |
Product DescriptionClevis ASSY,3/8-16NC 300 lb Steel Zinc Plated |
|
| Part #?17793 |
Product DescriptionClevis ASSY,1/2-13NC 300 lb Steel Zinc Plated |
|
| Part #?17783 |
Product DescriptionClevis ASSY,1/2-13NC 500 lb Steel Zinc Plated |
|
| Part #?17784 |
Product DescriptionClevis ASSY,3/4-10NC 4,000 lb Steel Zinc Plated |
|
| Part #?17785 |
Product DescriptionClevis ASSY,1-8NC 10,000 lb Steel Zinc plated |
|
| Part #?17786 |
Product DescriptionClevis ASSY,3/8-16NC 500 lb Steel Zinc Plated |
|
| Part #?17787 |
Product DescriptionClevis ASSY,1/2-13NC 3,000 lb Steel Zinc Plated |
|
| Part #?17788 |
Product DescriptionClevis ASSY,5/8-11NC 2,500 lb Steel Zinc Plated |
|
| Part #?17789 |
Product DescriptionClevis ASSY,3/4-10NC 5,000 lb Steel Zinc Plated |
|
| Part #?17790 |
Product DescriptionClevis ASSY,1-1/4-7NC 15,000 lb Steel Zinc Plated |
|
| Part #?17791 |
Product DescriptionClevis ASSY,1-1/2-6NC 20,000 lb Steel Zinc Plated |
|
| Part #?33644 |
Product DescriptionClevis ASSY,1/2-13NC 300lb SST |
|
| Part #?33643 |
Product DescriptionClevis ASSY,1/2-13NC 500lb SST |
|
| Part #?33641 |
Product DescriptionClevis ASSY,3/8-16NC 500lb SST |
|
| Part #?33658 |
Product DescriptionClevis ASSY,3/8-16NC 500lb SST For Use W/3/8-24NF Rod End |
|
| Part #?33642 |
Product DescriptionClevis ASSY,3/4-10NC 4,000lb SST |
|
| Part #?33640 |
Product DescriptionClevis ASSY,1/2-13NC 2,000lb SST |
|
| Part #?33639 |
Product DescriptionClevis ASSY,5/8-11NC 2,500lb SST |
|
| Part #?33638 |
Product DescriptionClevis ASSY,3/4-10NC 5,000lb SST |
|
