CLS-420 Forklift Scale Wireless Version

$0.00

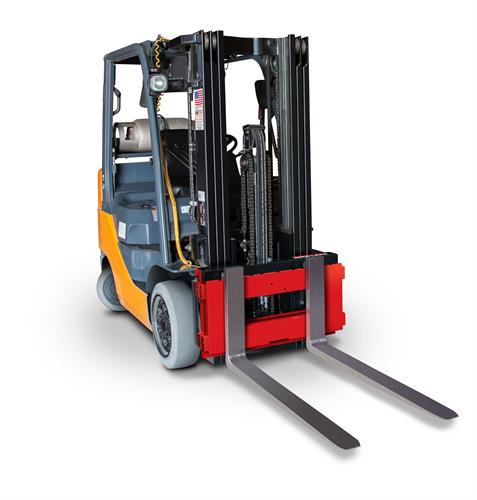

The CLS-420 forklift scale mounts directly to any Class II or III lift truck, saving material handling processes time and money.

Download product PDF
Category:

Features

Scale Carriage
  • Compatible with Class II (16 in H) or III (20 in H) forklift cleat type carriages
  • Out of level NTEP Certified tolerance at seven degrees pitch and roll, three degrees side to side
  • 1 1/2 in thick front and back painted steel plates coupled by four flexures
  • Top cleats are welded, pinned and bolted
  • Welded centering pin
  • Two 5,000 pound s-beam load cells

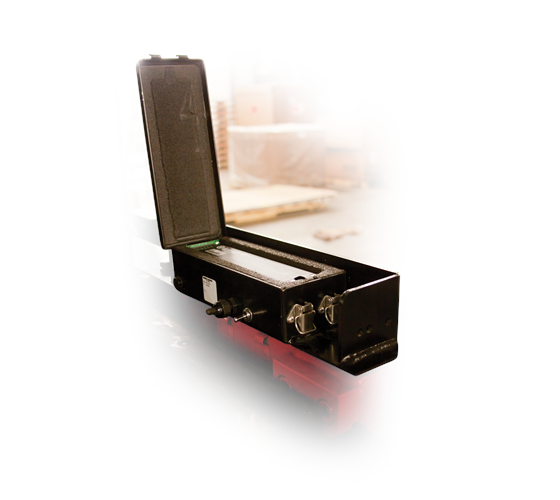

  • Updated iQube2 junction box with inclinometer
  • Molded coiled cable, up-to 15 ft uncoiled
420 Plus Indicator
  • Stainless steel enclosure
  • On/Off switch to conserve forklift battery life
  • Front panel calibration
  • Full numeric keypad for manual tare entry
  • Accumulate weight function using the print key for multiple pallets
  • Single RS-232 port transmits time, date and weight for interface to PC or printer
  • Two piece top cage indicator mounting assembly with vibration mounts
  • 9-36 VDC power supply for use on propane forklifts or 10-60 VDC power supply for use on electric forklifts

Specifications

Scale Capacity:
28in and 34in: 5,000lb x 5lb NTEP Certified
38in: 8,000lb x 5lb non-type approved

Scale Material/Finish:
Painted Steel

420 Plus Display:
0.8in (20mm), 6-digit super red light emitting diode (LED), 7-segment digits

420 Power – DC:
Line voltages: 9-36 VDC DC input
Power consumption: 0.75 A max fused at 5.0 A
Line voltage 10-60 VDC input
Power consumption: 0.75 A max fused at 5.0 A

420 Status Annunciators:
Designators for: center of zero, standstill, gross, net, lb, kg, tare

420 Operating Temperature:
Legal: 14?F to 104?F (-10?C to 40?C)
Industrial: 14?F to 122?F (-10?C to 50?C)

Warranty:
Two-year limited warranty

Approvals:
NTEP CC 06-074 (5,000lb only) per H-44 at 1,000 division

Options

Consult Wireless LAN card 802.11 B/G, requires factory installation
167498 Cable,Extension 2 Meters 125395 Coiled Cable Extension, Straight, Molded Turk PN BSM BKM 5-084-2
166161 Power Line Filter, CLS DC EMI FIlter, 0-75 VDC input voltage, 100 Vdc surge.
166162 Converter,DC-DC CLS 18-75 VDC Input, 12 VDC Output Chasis Mount
96483 LIT,Manual Forklift 420 Forklift Scale Installation Manual
96484 LIT,Manual Lift Operator Forklift Scale Operator Manual 420
181704 Ind Opt,CLS 420 WIFI Forklift 802.11 B/G With 5 Pin Harness

Models

167418 Scale PKG,CLS420,iQube2.3 28in. Wireless, Class II, 5,000 x 5lb, 10-60VDC,NTEP Include. Batteries and Charger
167284 Scale PKG,CLS420,iQube2.3 34in., Wireless, 5,000lb, 10-60VDC, With 2 Batteries and Charger NTEP Approved
167410 Scale PKG,CLS420,iQube2.3 38in. Wireless, Class III, 8,000 x 5lb, 10-60VDC With Batteries And Charger
171814 Scale PKG,CLS420,iQube2.3 28in. Wireless, Class II, 5,000 x 5lb, 9-36VDC,NTEP Includes Batteries and Charger
167283 Scale PKG,CLS420,iQube2.3 34in.,Wireless,5,000lb,9-36VDC,With 2 Batteries and Charger, NTEP Approved
171815 Scale PKG,CLS420,iQube2.3 38in. Wireless, Class III, 8,000 x 5lb, 9-36VDC With Batteries And Charger
