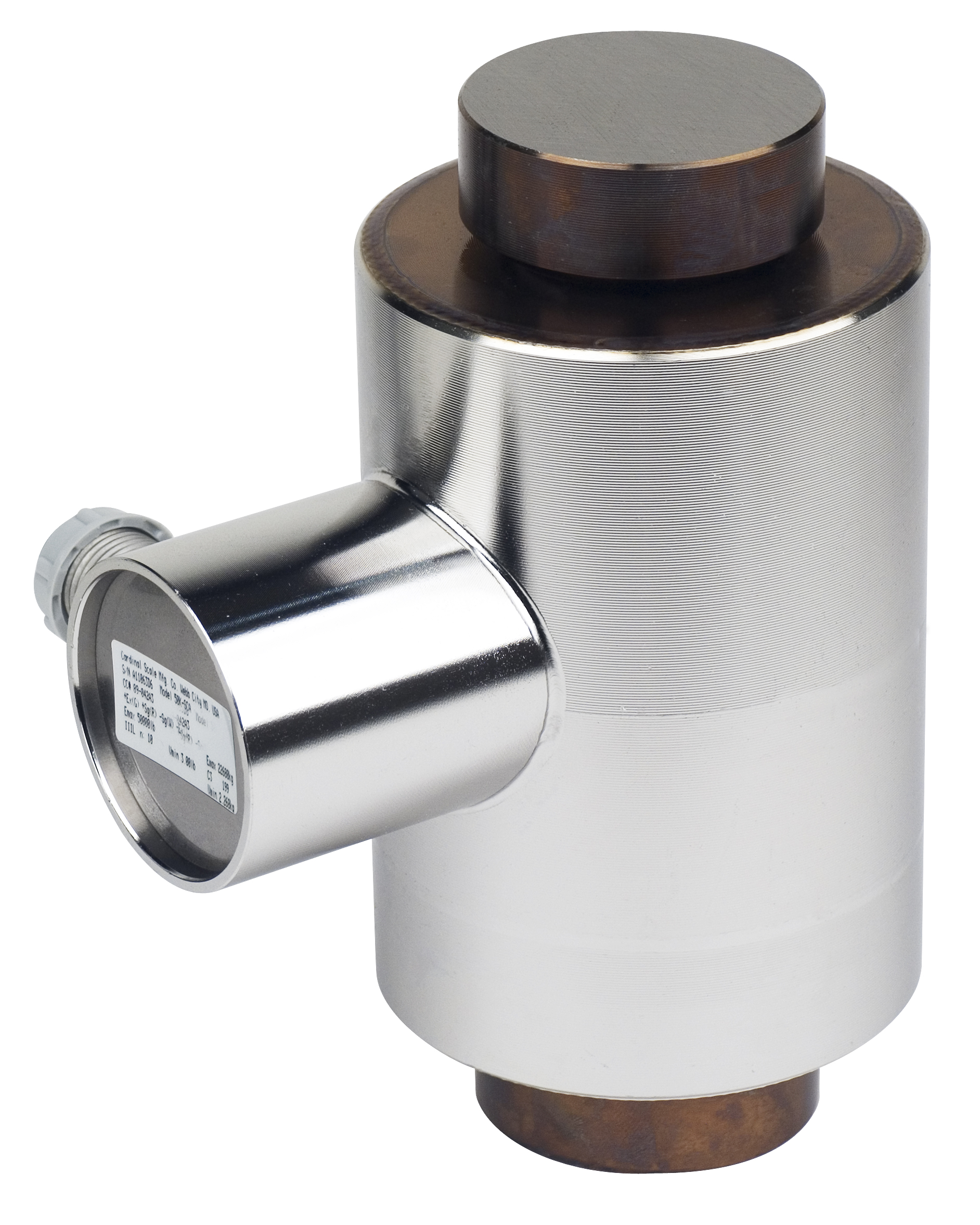

Compression, Analog SCA Series

$0.00

These heavy-capacity compression load cells are ideal for multiple load cell applications including truck scales, railroad track scales, and heavy-duty tank weighing systems. Cardinal Scale’s SCA load cells are fabricated from stainless steel to provide the ultimate in protection when caustic, corrosive or wet environments are encountered. SCA load cells are environmentally-sealed for absolute water protection and they are NTEP and OIML legal-for-trade certified (200K-SCA is not OIML approved). Available in models with 120,000 lb / 54,430 kg and 200,000 lb / 90,720 kg heavy-duty capacities.

Download product PDF
Category:

Features

  • Available Capacities: 120,000 lb / 54,430 kg and 200,000 lb / 90,720 kg
  • Environmentally-Sealed
  • IP68 Protection Class
  • NTEP Legal for Trade
  • OIML Certified (excluding model 200K-SCA)
  • Precision Engineering
  • Stainless Steel
  • VCAP Certified

Specifications

NTEP Approval: 89-042A3
OIML Approval: R60/1991-DK-97.04 (excluding model 200K-SCA)
Accuracy Class: IIIL – C3
Minimum Dead Load: 1,200 lb / 544 kg or 1,500 lb / 680 kg
Safe Load Limit: 150% R.C.
Ultimate Load: 300% R.C.
Rated Output: 2mV/V
Cable Length: 35 ft / 10 m
Material: Stainless Steel

Models

120K-SCA Load Cell, Compression, 120,000 Lb, Stainless Steel Call For Pricing
200K-SCA Load Cell, Compression, 200,000 Lb, Stainless Steel Call For Pricing
