Compression, Compact

$0.00

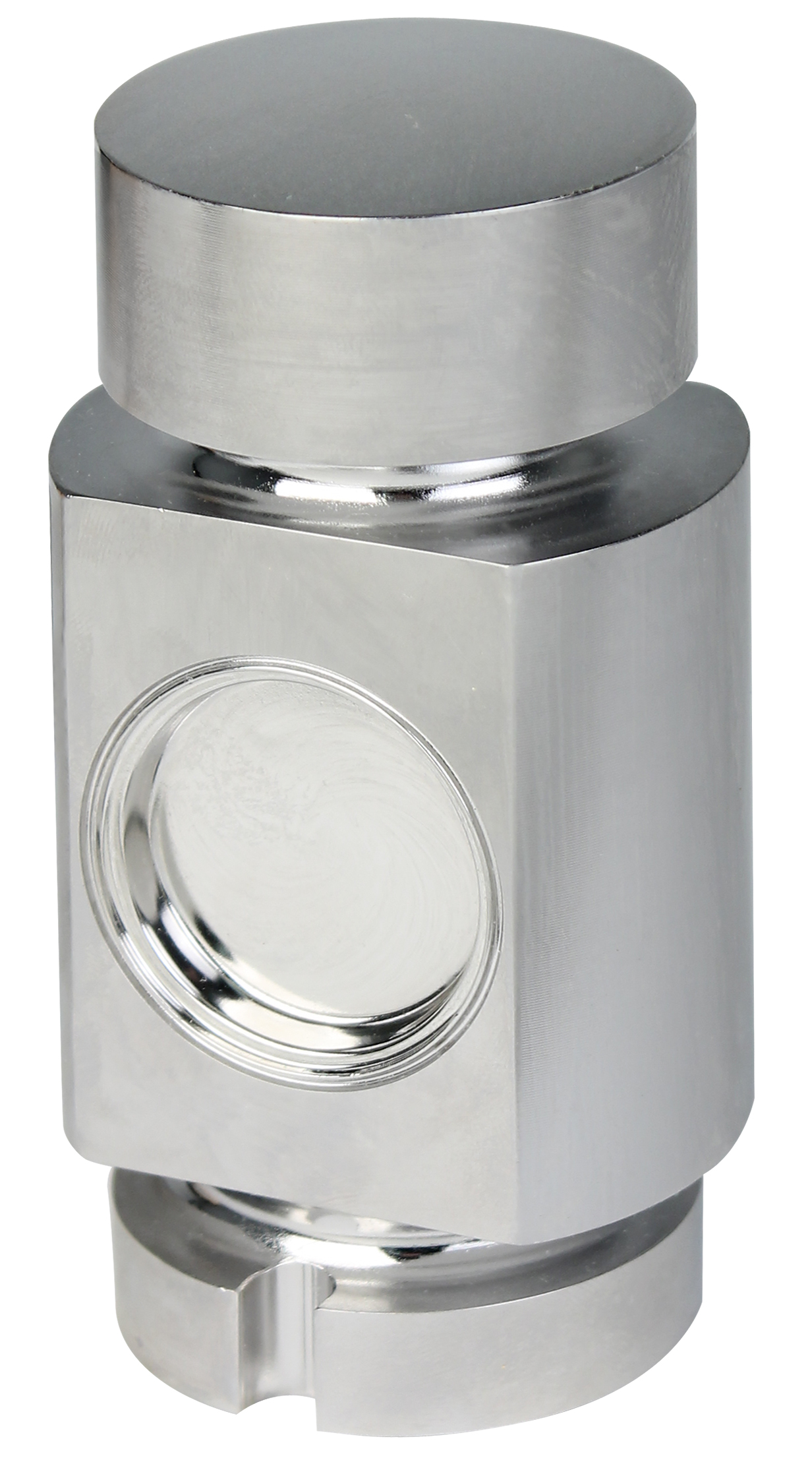

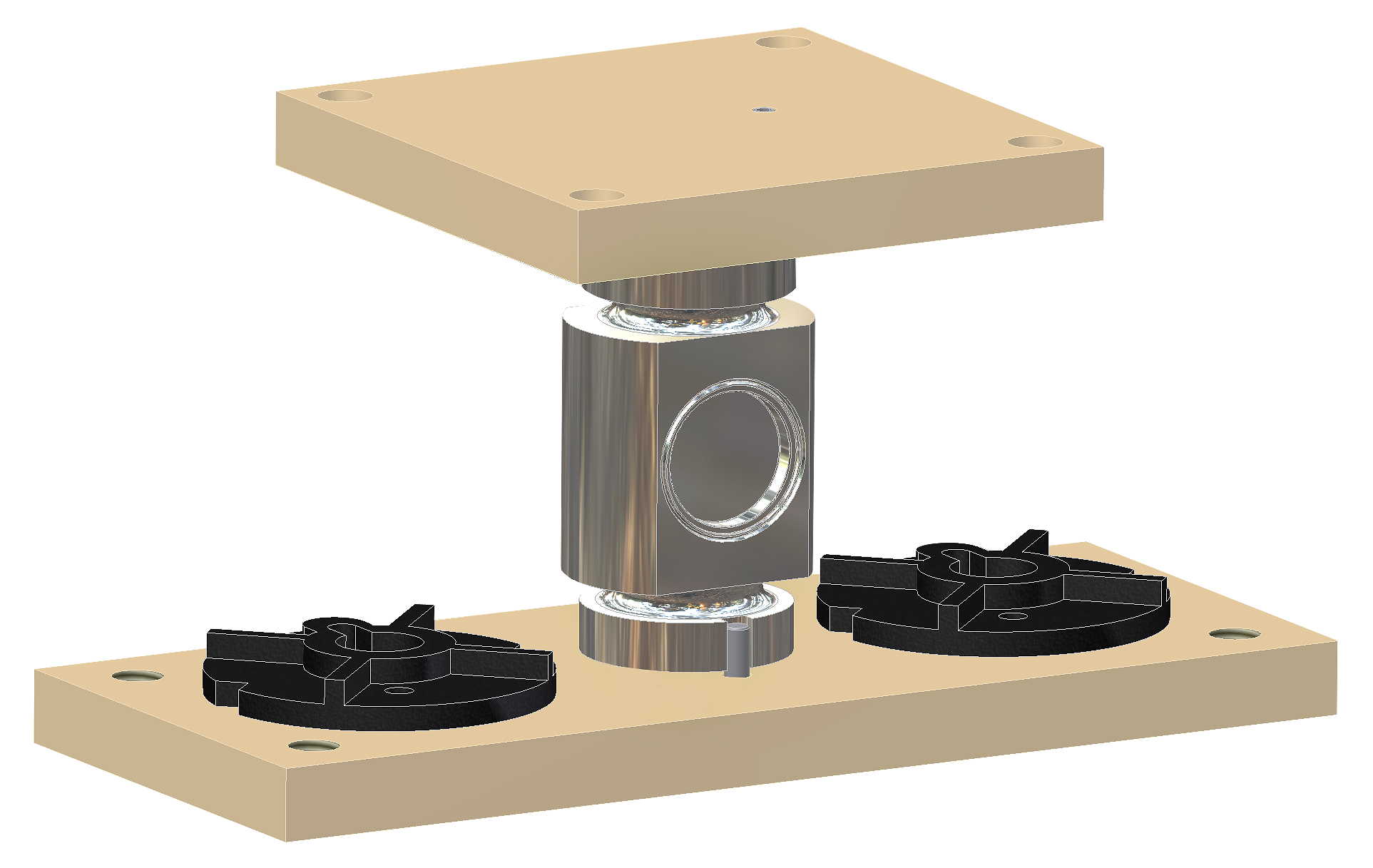

Cardinal Scale’s compact CBC series compression load cells are ideal for multiple load cell weighing applications such as truck scales and heavy-duty tank weighing systems. They feature anti-rotation pivot inserts and come in 50,000-lb/22,500-kg and 75,000-lb/34,000-kg capacities. These load cells are fabricated from stainless steel to provide the ultimate in protection when caustic, corrosive or wet environments are encountered. The CBC series load cells are environmentally-sealed IP68 with a welded stainless steel cup for absolute water protection in rugged environments. Each load cell is furnished with a 75-ft/23-m integral multi-conductor cable secured by a strain relief seal. The top and bottom hardened mating surfaces with the CBC load cell must have a minimum hardness of 40 Rockwell C. NTEP legal for commercial trade.

Download product PDF
Category:

Features

  • 50000-lb / 22500-kg and 75000-lb / 34000-kg Capacities Available
  • Anti-Rotation Pivot Inserts
  • Environmentally-Sealed
  • IP68 Protection Class
  • NTEP Legal for Trade
  • Precision Engineering
  • Stainless Steel
  • VCAP Certified

Specifications

Rated Capacity, (R.C.) Emax: 50,000 lb / 22,500 kg (CBC50K) and 75,000 lb / 34,000 kg (CBC75K)
Minimum Dead Load: 1.6% of dead load
Safe Load Limit: 150% R.C.
Ultimate Load: 300% R.C.
Deflection at R.C.: 0.015 in / 0.38 mm
Spring Element Material: 17-4 PH
NTEP Certificate of Conformance: 11-094
Accuracy Class: IIIL
Maximum Number of Load Cell Intervals Emax: 10,000
Single/Multiple: M
Minimum Load Cell Verification Interval Vmin NTEP: 2 lb / 0.9 kg
Rated Output: 2 ± 0.1% mV/V
Excitation Voltage, Maximum: 15 VDC
Cable Length: 75 ft / 23 m
Terminal Resistance Excitation: 787 ± 40 ohms
Terminal Resistance Signal: 702 ± 10 ohms
Insulation Resistance: >5000 megohms at 50 VDC
Temperature Compensation Range: -10 to +40˚C
Operating Temperature Range: -29 to +93˚C
Construction & Protection Code: CP-67 HU, IP68
Barometric Pressure Effect on Zero Load Output: <1 v (min)/1kPa

Models

CBC50K Load Cell, Compression, Compact, 50,000 Lb, Stainless Steel Call For Pricing
CBC75K Load Cell, Compression, Compact, 75,000 Lb, Stainless Steel Call For Pricing
