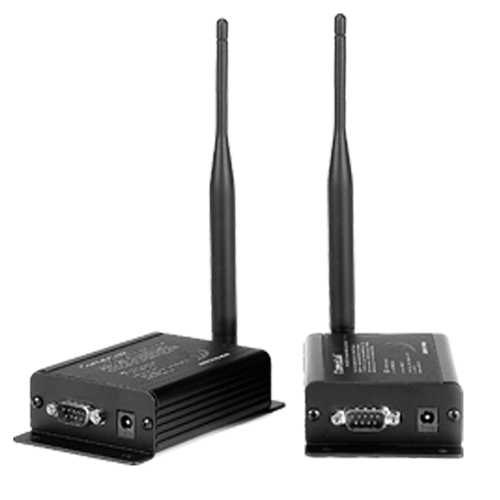

ConnexLink Wireless Radio 900 MHZ

Frequency Band:
902-928 MHz

Modulation:
FHSS FSK

Interface:
Standard: RS-232 (DB9 Male)
ConnexLink PRO: RS-485 (6-Pin terminal block)

Serial Interface Data Rate:?
Up to 115200 kbps

Output Power:?
5 mW-1000 mW variable

Input Power:?
7 VDC-18 VDC

Current Draw (at 12 VDC):?
400 mA TXD, 40 mA RXD

Power Supply:?
AC transformer via 6 ft cable (183 cm)

Electrical Requirements:?
Line voltage 100-120 V; frequency 50-60 Hz (240 V outside the US)

Channels:?
Up to 32

Security:
1-byte system ID, DES

Sensitivity:
-99dB at full RF data rate

Range (line-of-sight):
Up to 20 miles (32 km)

Temperature:
0?F to 176?F (-40?C to 80?C)

Humidity (non-condensing):
10% to 90%

Weight:
<6 oz (<170 g)

Dimensions:
4.75 x 2.75 x 1.17 in (121 x 70 x 30 mm)

Antenna Connector:
Reverse polarity SMA jack (female)
