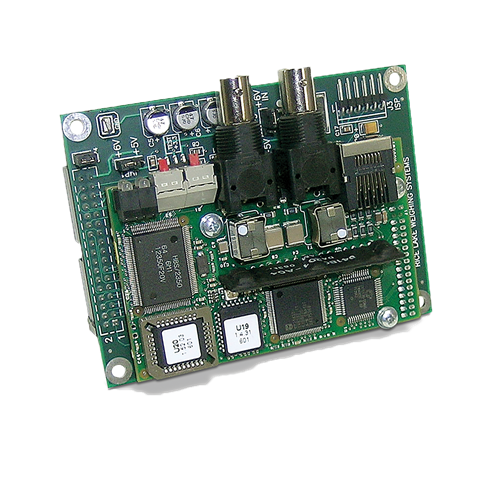

ControlNet Interface
$0.00
ControlNet Interface for internal installation in 820i and 920i digital weight indicators.
Download product PDF
Features
- Option for 920i
- Polled I/O connection
- Onboard LED diagnostics
- Floating-point commands support decimal points
Specifications
Power:
5 VDC, 350 mA (jumper for 6 VDC)
Fieldbus Interface:
BNC connector |
Diagnostic LEDs:
Module status and network status
Dimensions:
2.13 × 3.38 × 0.59 in
(86 × 54 × 15 mm) |
Temperature Range:
14 °F to 158 °F (-10 °C to 70 °C) |
Options
| 103136 |
IND OPT,ControlNet Right Angle BNC Connector |
|
|
