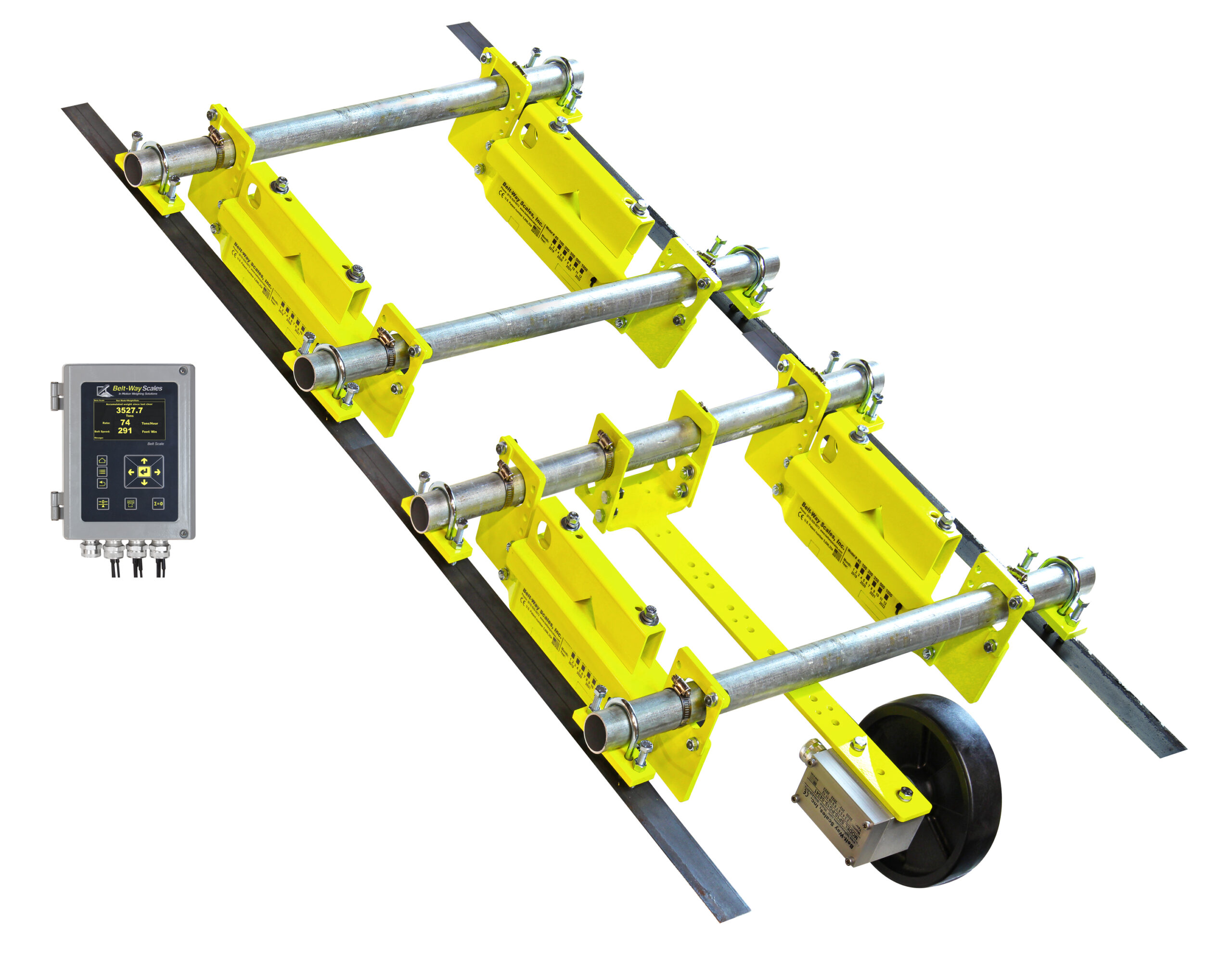

Belt-Way’s Conveyor Belt Scales provide a simple, yet versatile design that fits any conveyor width. Belt-Way’s Conveyor Belt Scales can be installed on portable or stationary scales, provide quick setup, and easy calibration. Belt-Way’s Self-Storing Test Weights allow for scale calibration in a matter of minutes. Belt-Way’s Integrator is weatherproof—providing vital information in a reliable manner. Belt-Way’s Integrator also comes equipped with an RS-232 communication port to print weight data and send information to Scoreboard Displays.
Belt-Way’s Conveyor Belt Scales are available in a variety of applications. Stationary, portable, catenary idler, and load-out scales can be fit to any end-user’s production goals. This versatility of Belt-Way’s applications can be utilized in aggregate, agricultural, mining, steel, recycling, and concrete industries.
Calibration: Automatic tare weight determination, dynamic test and recalibration, automatic zero adjustment
Alarms: Load cell failure, belt speed zero
Communications: Ethernet port supports Modbus/TCP; USB port available for data download and firmware updates
Display: Large color graphic display with multi-language support
Electrical Ratings: 12-30 VDC, 24 VDC 2.25A Max, AC Power Option: Input: 100-240 VAC, 1A Max, 50-60Hz, Output: 24 VDC, 2.25A Max
Operating Temp.: -20 C to +45 C (-4 F to +113 F)
Load Cell Inputs: Eight independent load cell inputs, 9 VDC-250mA nominal supply, +2mV/VDC nominal signal, 350 OHMS of load cell resistance
Memory: 1,080 hours of internal memory storage
Online Reporting: Each Integrator can connect to Plant Connect
| BW45-AC-R-48 | 45Kg Load Cells, AC Power, Reg Spd Sensor, 48″ Pipe | Call For Pricing | |||
 |
BW45-AC-SM-48 | 45Kg Load Cells, AC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
 |
BW45-DC-R-48 | 45Kg Load Cells, DC Power, Reg Spd Sensor, 48 Pipe | |||
|
BW45-DC-SM-48 | 45Kg Load Cells, DC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
 |
BW45D-AC-R-48 | 45Kg Load Cells, Dual Idler, AC Power, Reg Spd Sensor, 48 Pipe | |||
 |
BW45D-AC-SM-48 | 45Kg Load Cells, Dual Idler, AC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
|
BW45D-DC-R-48 | 45Kg Load Cells, Dual Idler, DC Power, Reg Spd Sensor, 48 Pipe | |||
|
BW45D-DC-SM-48 | 45Kg Load Cells, Dual Idler, DC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
 |
BW45T-AC-R-48 | 45Kg Load Cells, Triple Idler, AC Power, Reg Spd Sensor, 48 Pipe | |||
 |
BW45T-AC-SM-48 | 45Kg Load Cells, Triple Idler, AC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
|
BW45T-DC-R-48 | 45Kg Load Cells, Triple Idler, DC Power, Reg Spd Sensor, 48 Pipe | |||
|
BW45T-DC-SM-48 | 45Kg Load Cells, Triple Idler, DC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
 |
BW45Q-AC-R-48 | 45Kg Load Cells, Four Idler, AC Power, Reg Spd Sensor, 48 Pipe | |||
 |
BW45Q-AC-SM-48 | 45Kg Load Cells, Four Idler, AC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
|
BW45Q-DC-R-48 | 45Kg Load Cells, Four Idler, DC Power, Reg Spd Sensor, 48 Pipe | |||
|
BW45Q-DC-SM-48 | 45Kg Load Cells, Four Idler, DC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
|
BW100-AC-R-48 | Conveyor Belt Scale, Single Idler | |||
|
BW100-AC-SM-48 | 100Kg Load Cells, AC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
|
BW100-DC-R-48 | 100Kg Load Cells, DC Power, Reg Spd Sensor, 48 Pipe | |||
|
BW100-DC-SM-48 | 100Kg Load Cells, DC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
|
BW100-AC-R-60 | Conveyor Belt Scale, Single Idler | |||
|
BW100-AC-SM-60 | 100Kg Load Cells, AC Power, Shaft Mnt Spd Sensor, 60 Pipe | |||
|
BW100-DC-R-60 | 100Kg Load Cells, DC Power, Reg Spd Sensor, 60 Pipe | |||
|
BW100-DC-SM-60 | 100Kg Load Cells, DC Power, Shaft Mnt Spd Sensor, 60 Pipe | |||
|
BW100-AC-R-72 | 100Kg Load Cells, AC Power, Reg Spd Sensor, 72 Pipe | |||
|
BW100-AC-SM-72 | 100Kg Load Cells, AC Power, Shaft Mnt Spd Sensor, 72 Pipe | |||
|
BW100-DC-R-72 | 100Kg Load Cells, DC Power, Reg Spd Sensor, 72 Pipe | |||
|
BW100-DC-SM-72 | 100Kg Load Cells, DC Power, Shaft Mnt Spd Sensor, 72 Pipe | |||
|
BW100D-AC-R-48 | Conveyor Belt Scale, Dual Idler | |||
 |
BW100D-AC-SM-48 | 100kg Load Cells, Dual Idler, AC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
 |
BW100D-DC-R-48 | 100kg Load Cells, Dual Idler, DC Power, Reg Spd Sensor, 48 Pipe | |||
 |
BW100D-DC-SM-48 | 100kg Load Cells, Dual Idler, DC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
|
BW100D-AC-R-60 | Conveyor Belt Scale, Dual Idler | |||
|
BW100D-AC-SM-60 | 100kg Load Cells, Dual Idler, AC Power, Shaft Mnt Spd Sensor, 60 Pipe | |||
|
BW100D-DC-R-60 | 100kg Load Cells, Dual Idler, DC Power, Reg Spd Sensor, 60 Pipe | |||
|
BW100D-DC-SM-60 | 100kg Load Cells, Dual Idler, DC Power, Shaft Mnt Spd Sensor, 60 Pipe | |||
|
BW100D-AC-R-72 | 100kg Load Cells, Dual Idler, AC Power, Reg Spd Sensor, 72 Pipe | |||
|
BW100D-AC-SM-72 | 100kg Load Cells, Dual Idler, AC Power, Shaft Mnt Spd Sensor, 72 Pipe | |||
|
BW100D-DC-R-72 | 100kg Load Cells, Dual Idler, DC Power, Reg Spd Sensor, 72 Pipe | |||
|
BW100D-DC-SM-72 | 100kg Load Cells, Dual Idler, DC Power, Shaft Mnt Spd Sensor, 72 Pipe | |||
|
BW100T-AC-R-48 | 100kg Load Cells, Triple Idler, AC Power, Reg Spd Sensor, 48 Pipe | |||
|
BW100T-AC-SM-48 | 100kg Load Cells, Triple Idler, AC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
|
BW100T-DC-R-48 | 100kg Load Cells, Triple Idler, DC Power, Reg Spd Sensor, 48 Pipe | |||
|
BW100T-DC-SM-48 | 100kg Load Cells, Triple Idler, DC Power, Shaft Mnt Spd Sensor, 48 Pipe | |||
|
BW100T-AC-R-60 | 100kg Load Cells, Triple Idler, AC Power, Reg Spd Sensor, 60 Pipe | |||
|
BW100T-AC-SM-60 | 100kg Load Cells, Triple Idler, AC Power, Shaft Mnt Spd Sensor, 60 Pipe | |||
|
BW100T-DC-R-60 | 100kg Load Cells, Triple Idler, DC Power, Reg Spd Sensor, 60 Pipe | |||
|
BW100T-DC-SM-60 | 100kg Load Cells, Triple Idler, DC Power, Shaft Mnt Spd Sensor, 60 Pipe | |||
|
BW100T-AC-R-72 | 100kg Load Cells, Triple Idler, AC Power, Reg Spd Sensor, 72 Pipe |
