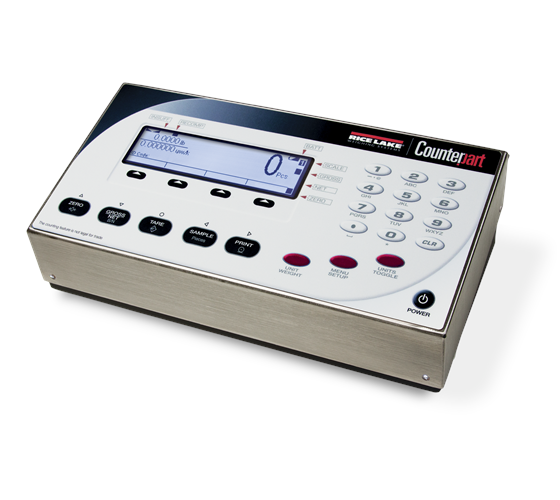

Counterpart Configurable Counting Indicator

$0.00

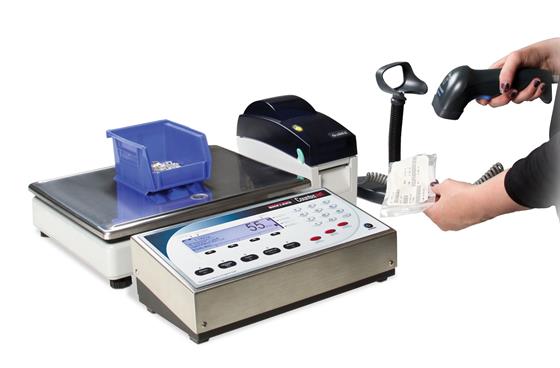

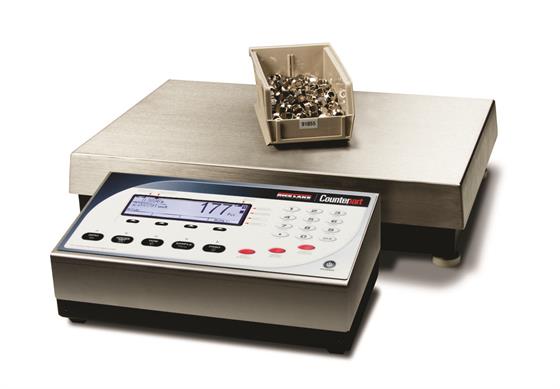

Counterpart configurable counting indicator converts almost any scale base into an intelligent piece-counting device, for parts of every shape and size.

Download product PDF
Category:

Features

  • AC operated (battery operation is optional)
  • LCD graphic transmissive display for indoor viewing
  • Lb/kg/oz/g weight display conversion
  • Single- or dual-channel models with serial scale input
  • Mix and match platforms with console
  • Four setpoint outputs for counting
  • Two RS-232 ports for connecting peripherals
  • Ethernet TCP/IP
  • Scanner input (RS-232)
  • PC software utility (Revolution) for setup
  • 150 item memory

Specifications

Power Source:
Input: 100-240 VAC, 47-63 Hz, 5 watts, U.S. power cord
Output: 9-12 V, 1.5 A max

Excitation Voltage:
5 VDC

Analog Signal Input Range:
0-4.5 mV/V

Analog Specifications:
Grad minimum: .3 ?V/grad
Input sensitivity: 1.5 ?V/grad recommended
Zero adjustment range: 0-100% or per region settings
A/D conversion rate: 7.5, 15, 30 samples per second
Load cells per scale: 8 x 350 ?; 16 x 700 ?
Scale channels: 1 or 2
Linearity: ?0.017 full scale

Circuit Protection:
RFI, EMI, ESD protection

Digital I/O:
Four

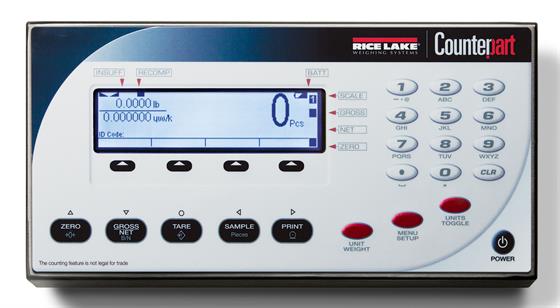

Display:
Viewing area: 240 x 64 pixels, transmissive VGA liquid crystal display (LCD) with adjustable contrast

Keypad:
24 buttons, full keypad (alpha numeric)

Resolution:
Weight display resolution: up to 100,000 graduations
Counting resolution: 1/1,000,000

Communications and Setpoint:
Two RS-232 ports support up to 115,200 bps
20 mA
Ethernet port
Setpoint output

Status Annunciators:
PCS, motion, low battery, insuff, recomp, scale number, gross, net, zero

Units of Measure:
Pounds, kilograms, grams, ounces

Prints:
Standard EPL label format; format is changeable to work with virtually any printer

Optional Battery:
Type: Lithium ion
Charge time: 6 to 8 hours
Charge cycles: 400-1,200
Estimated runtime: 24-32 hours with one 350 ? load cell base

Operating Temperature:
10? F to 104? F (0? C to 40? C)

Operating Humidity:
85%

Physical Dimensions:
Indicator only (L x W x H): 12.25 x 6.25 x 4.0 in (311.15 x 158.75 x 101.6 mm)

Warranty:
Two-year limited warranty

Approvals:
NTEP CC 12-110
CE
UL listed
Measurement Canada

Models

Part #?132429 Product DescriptionIndicator,Counterpart Single A/D, RS-232, Ethernet, Multi-ranging Power Supply with EU Power Cord and Packaging List Price?

Cart?

Part #?132431 Product DescriptionIndicator,Counterpart Dual A/D, RS-232, Ethernet, Multi-ranging Power Supply with EU Power Cord and Packaging List Price?

Cart?

Part #?118788 Product DescriptionIndicator, Counterpart Single A/D, RS-232, Ethernet, Multi-ranging Power Supply with US Power Cord and Packaging List Price?

Cart?

Part #?120770 Product DescriptionIndicator,Counterpart Dual A/D, RS-232, Ethernet, Multi-ranging Power Supply with US Power Cord and Packaging List Price?
