CW-90B Light-capacity Bench Scale

$0.00

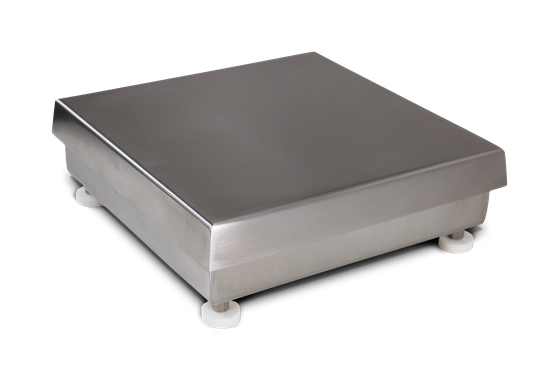

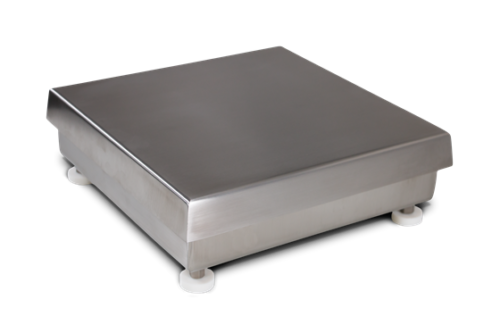

The CW-90B is a light-capacity industrial bench scale base designed to endure tough environments with a full 304 stainless steel construction and aluminum environmentally sealed load cell. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds, Rice Lake has the appropriate size for your application.

Download product PDF
Category:

Features

  • 304 stainless steel construction
  • Five-point overload protection
  • Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces
  • IP67 Aluminum environmentally sealed load cell

Specifications

Load Cell, NTEP Certified:
Aluminum and environmentally sealed

Output Impedance:
350 ?

Maximum Overload:
180 to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Cable Length:
34 in or 10 ft

Compensated Temperature Range:
14? F to 104? F (-10? C to 40? C)

Warranty:
Two-year limited warranty

Approvals:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000 d

Options

112044 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legen Series, 680 Synergy Series
112045 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legen Series, 680 Synergy Series

Models

Part #?112599 Product DescriptionBench Scale ASSY,5lb CW90 10×10 (Load Cell Cable Length Is 10ft)
Part #?112601 Product DescriptionBench Scale ASSY,10lb CW90 10×10 (Load Cell Cable Length Is 10ft)
Part #?112603 Product DescriptionBench Scale ASSY,25lb CW90 10×10 (Load Cell Cable Length Is 10ft)
Part #?112605 Product DescriptionBench Scale ASSY,25lb CW90 12×12 (Load Cell Cable Length Is 10ft)
Part #?112607 Product DescriptionBench Scale ASSY,50lb CW90 12×12 (Load Cell Cable Length Is 10ft)
Part #?112609 Product DescriptionBench Scale ASSY,100lb CW90 12×12 (Load Cell Cable Length Is 10ft)
